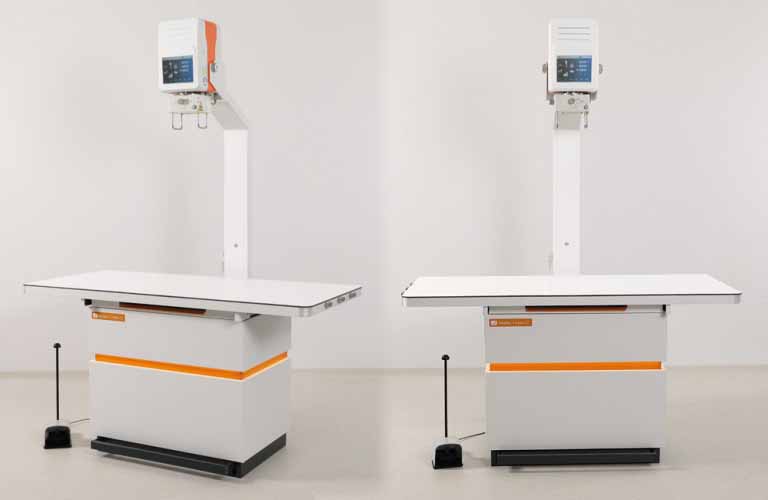

Cost-effective full X-ray system with floating table top for small animal practices

The Amadeo V nano II X-ray unit was specially designed for the requirements in veterinary medicine and is particularly suitable for small animal practices. The completely flat 4-way floating table without upstands will inspire you. This veterinary X-ray system is again an in-house development "Made in Germany" by OR Technology and the result of close cooperation with veterinarians and university institutions.

The 5.6 kW high-frequency generator is directly integrated in the X-ray table and has a rotatable light visor. The table top can be moved very easily via the foot brake on the table. For the 220V power supply, connection to a standard socket is sufficient. No major alterations are required in your small animal practice.

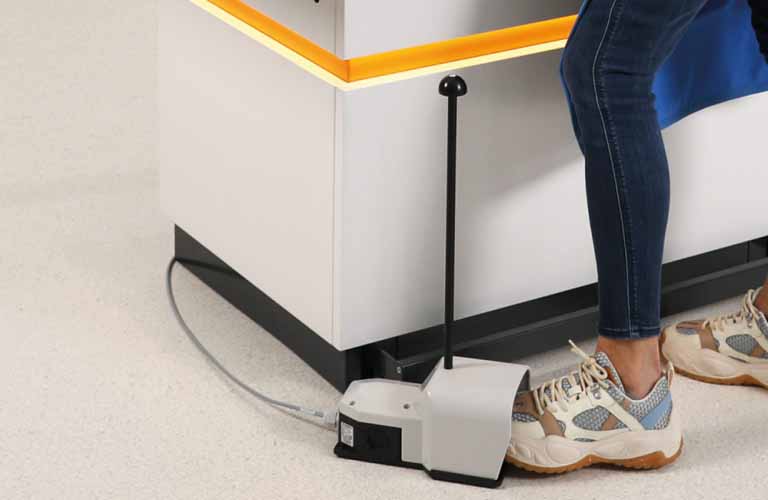

The X-ray shot can be prepared and triggered with the help of the 2-step foot switch. A large integrated drawer with two compartments offers enough space for positioning aids, small parts, etc.



nach oben

Video: Digital veterinary X-ray system for small animal medicine



nach oben

The Amadeo V nano II X-ray system for small animal practice is available in 3 variants:

Amadeo V-DR nano II

with built-in CsI X-ray detector 17" x 14"
(active area 43.3 x 35.5 cm)

Amadeo V-DR nano II

with built-in CsI X-ray detector 17" x 17"
(active area 43.2 x 43.2 cm)

Amadeo V-AX nano II

for use with film/CR cassettes or existing DR system without generator control

nach oben

Features and Benefits of the Vet X-ray system system for small animal medicine


The Amadeo V-DR nano II can be used with a standard socket. No major conversion measures are necessary.

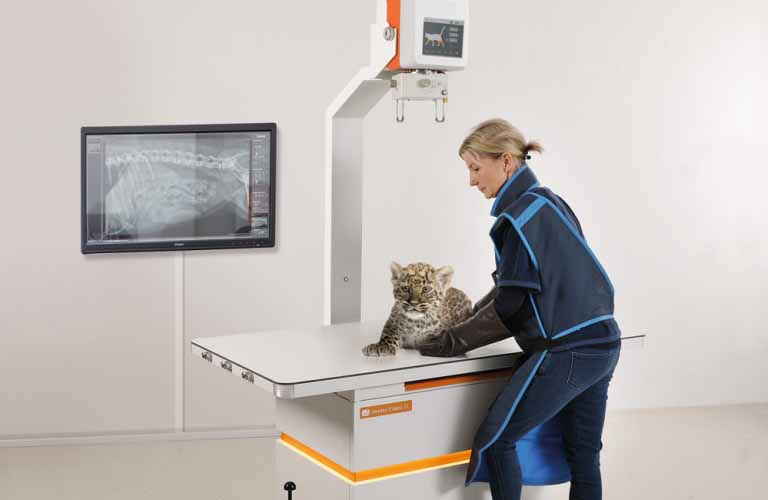

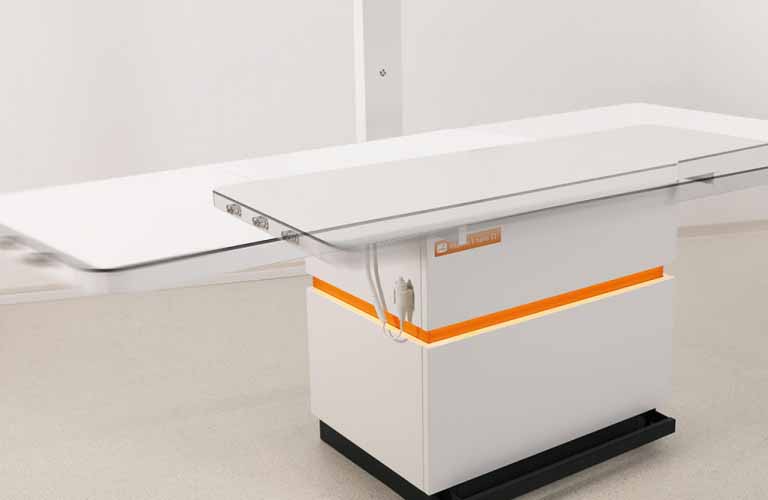

The completely level patient table without upstands is equipped with a floating tabletop and silent brakes. It allows for generous movement and can be operated from the front panel.


Thanks to the integration into your existing patient management system the patient data is available at the push of a button.

Excellent image quality

The high-quality X-ray detector based on a caesium iodide (CsI) scintillator offers top image quality even at low X-ray doses. Especially in direct comparison with the standard, widely used GadOx (Gd²O²S:Tb) detectors, this edge in quality is clearly visible.

User friendly

The professional dicomPACS®DX-R X-ray software for acquisition and diagnostic offers an intuitive and modern graphic user interface including free special measuring functions and generator control (except AX version). The examinations can be conducted comfortably at the monitor while all necessary adjustments of the X-ray parameters are automatically communicated to the generator.


Shortly after taking the shot (6 - 8 seconds), the X-ray image is available for viewing and diagnostic evaluation. This ensures a quick workflow.

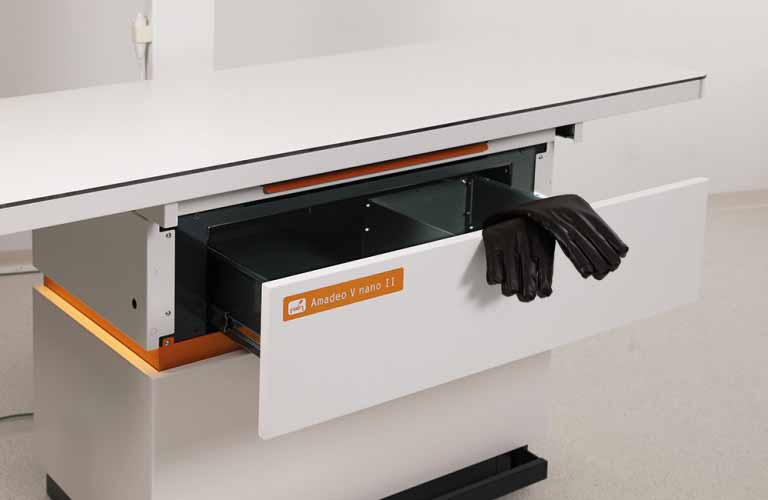

The X-ray table has a large drawer with 2 compartments for small parts and positioning aids, etc.

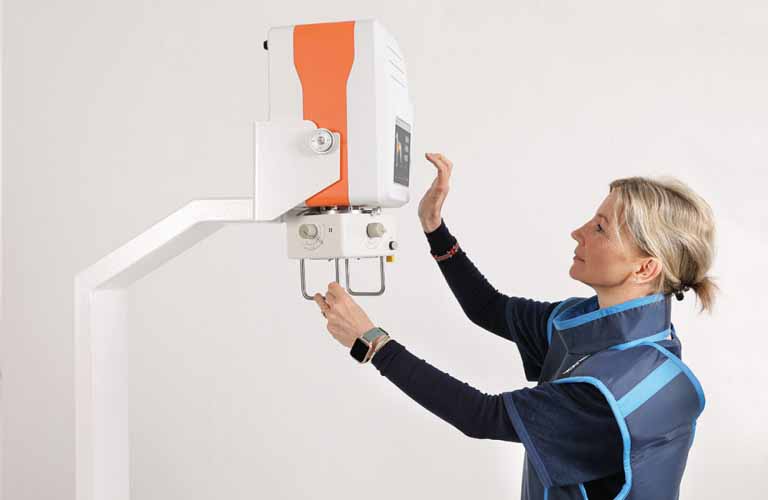

The high-frequency generator with vibration-free suspension has a rotatable light beam diaphragm.

Cleverly designed

A positioning guide integrated in the X-ray software provides information on the correct positioning technique for any examination of cats and dogs.


Special measuring functions such as MMP (Modified Maquet Procedure), HD measuring, TTA, TPLO and heart measuring are provided without extra cost.


Clamps for attaching restraints: These ties can be used to hold the animal in place so that the staff can leave the controlled area during the shot.


AI-supported HD measurement for dogs (determination of the Norberg angle)

nach oben

Acquisition and diagnostic software for X-ray images

Digital X-ray: Acquisition and diagnostic software for X-ray images

At the heart of each Amadeo system is the dicomPACS®DX-R acquisition and diagnostic software with the integrated X-ray positioning guide developed by OR Technology.

The software controls X-ray generators and X-ray units of various manufacturers, providing a smooth and structured workflow. A simple and user-friendly GUI (graphical user interface), operated by touchscreen or mouse, completes the system.

The professional dicomPACS®DX-R image processing can be adapted to individual user needs and offers outstanding image quality in human and veterinary medicine. It has been specially developed to enable organ-specific quality optimisation, guaranteeing the highest quality of X-ray images.

[more information...]

nach oben

X-ray detectors for Amadeo V nano II systems

Digitales Röntgen: Akquisitions- und Befundsoftware für Röntgenbilder

Here you can find a list of the available X-ray detectors. Different types and sizes of X-ray detectors allow an individual configuration of the system.

[to the overview...]

nach oben

Any further questions?

Is the Amadeo V nano II the right digital X-ray unit for your veterinary practice or clinic?
Let's find out together.
Icon - call us+49 381 36 600 500 Icon - write us a
OR Technology - Call our Sales-Team
nach oben
  • Product information X-ray system Amadeo V nano II
    The Amadeo V nano II X-ray system is specially designed for the needs of a veterinary practice. The patient table is built with a floating table top which provides a generous range of movement and can be comfortably operated from the front bar

  • Product overview veterinary medicine
    Digital X-ray imaging - guide for vet clinic and practice

nach oben

Optional add-ons

dicomPACS®MobileView – the web-based viewer for mobile devices

dicomPACS®MobileView  the web-based viewer for mobile devices
The web-based viewer contains all the basic functions for viewing images. You can view images virtually with any browser on mobile devices. dicomPACS®MobileView offers vets a previously unknown degree of mobile freedom in the workplace inside and outside of hospitals or practices, with the radiological image material available from anywhere.

Cloud ORCA – storage of medical data (images and documents) as well as sharing via the internet

ORCA  storage of medical data (images and documents) as well as sharing via the internet
(OR Tecxhnology Cloud Archiving) is a cloud-based platform specially designed for storing, viewing and sharing medical images and documents. ORCA® offers two exciting applications: ORCA® Archive and ORCA® Share.


dicomPACS®vet – the sophisticated and high-tech image management solution

dicomPACS®vet  the sophisticated and high-tech image management solution
dicomPACS®vet  is an easy to operate, well thought out instrument for daily diagnoses. The software includes the acquisition, processing, transfer and archiving of image material and can easily be integrated into all common administration systems.

nach oben

Technical Data for Amadeo V nano II (standard configuration)

HF generator incl. X-ray tube
  • Nominal power 5,6 kW
  • 40 kV - 125 KV, in 1 kV increments
  • Dual focus tube, focal spot 0.6/1.8 mm
  • Rotatable collimator
  • Power 220-240 V single-phase (standard socket)
X-ray stand with table
  • X-ray stand with fixed SID = 105 cm
  • Rotatable collimator with LED light
  • Table system with four way floating table top and very quiet brakes
  • Large, completely flat, scratch-resistant and dose-optimised table surface without upstands, dimensions: 1591 x 742 mm, table height 839 mm
  • At the table end faces 3 pcs. each fixing clamps (cleats / rope ties) for holding ropes
  • Integrated drawer for positioning aids etc.
  • Indirect lighting through LED strips between the drawers.
  • Stable and durable design of all components in modern design
  • Foot switch, 2-stage (collimator light on / X-ray shot)
  • Weight approx. 180 kg
CsI X-ray detector 35 cm x 43 cm

Excellent image quality even at low radiation dose -
Different sizes and resolutions available

CsI X-ray detector 43 cm x 43 cm

Excellent image quality even at low radiation dose -
Different sizes and resolutions available

Operation by acquisition station

Mini PC with 24” monitor including dicomPACS®DX-R acquisition and diagnostic software with modern graphical user interface

  • Control of the flat panel monitor
  • Control of the X-ray generator
  • Customised, organ-specific image processing CoP (Cognition Optimised Processing)
  • Mulitmedia X-ray positioning guide
  • DICOM Send SCU for image transfer to a PACS system
  • SCU/SCP instructions for connecting to the practice's data processing system
  • Patient CD
Fixing clamps

Clamps for holding ties to hold the animal in place so that staff can leave the controlled area during the shot

nach oben

Optional Components for Amadeo V nano II Systems

Hand switch
Grid for 17" x 17" detectors - 200LPI
nach oben
Subject to technical modifications
