radiographic inspection of weld seams
X-ray technology from the experts -
A long-lasting bond
X-ray technology from the experts - A long-lasting bond
Portable X-ray systems and X-ray units with pulse technology for radiographic testing (RT) of weld seams, cast and forged parts and much more.
Do you need handy, robust X-ray systems and powerful industrial X-ray devices for mobile non-destructive testing (NDT) of weld seams in the construction industry, aviation or the oil and gas industry? Do you want to inspect castings and welds for voids, cracks, inclusions and porosity? The systems should meet the common standards (ISO 17636-2, EN 12681-2, ISO 19232-5), be easy to operate, suitable for outdoor use as well as robust and portable?
Then you have found the right partner in us. Our professional, portable NDT X-ray solutions guarantee you easy handling, effortless creation of inspection protocols and outstanding image quality. A cloud connection for obtaining a second opinion, a high processing speed and, above all, the unrivalled price-performance ratio are further unbeatable advantages of our systems for your material and quality inspection.
Our portable X-ray inspection systems include in-house developed professional radiographic inspection (RT) acquisition and control software with a simple, user-friendly touch screen interface. Powerful image processing procedures allow material- and application-specific optimisation according to your needs.
No matter where you are, we support you with our extensive remote support, offer presence and online training as well as a replacement service for defective devices. Our X-ray products "Made in Germany" have all the necessary certifications from CE to FDA.
With the NDT X-ray units from our portfolio, you have the latest technology at your disposal and OR Technology as experienced partner at your side. We will be happy to advise you.
Products & solutions, performance & service

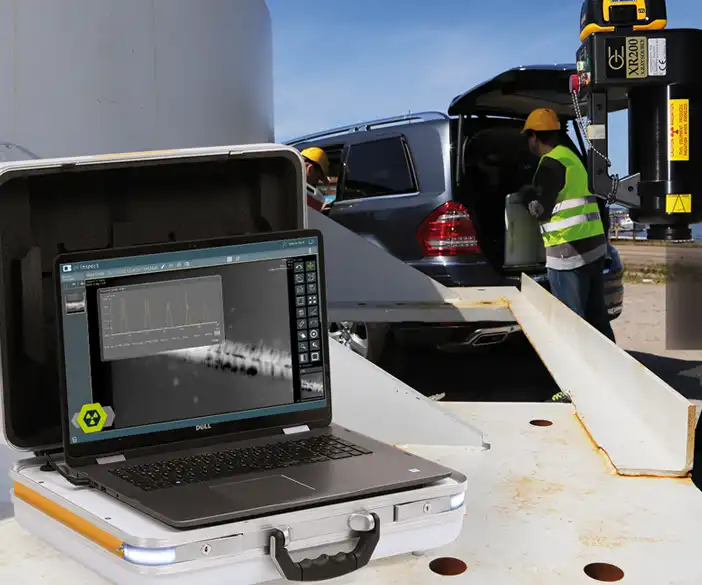

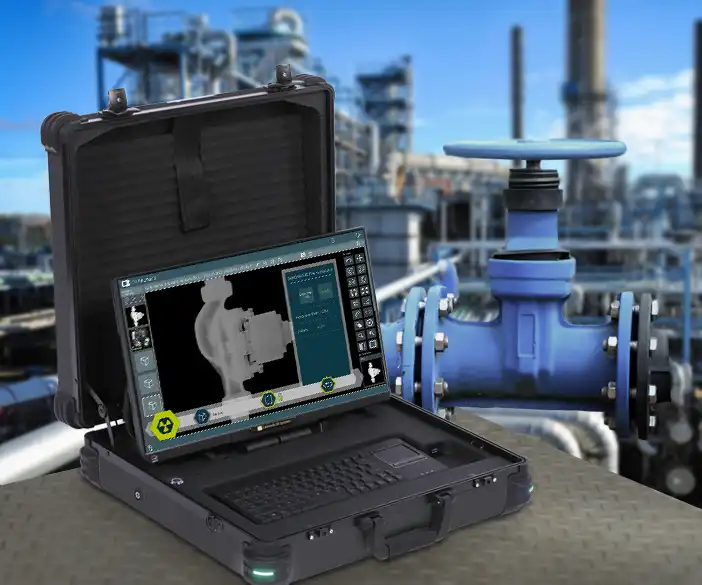

Leonardo DR mini II

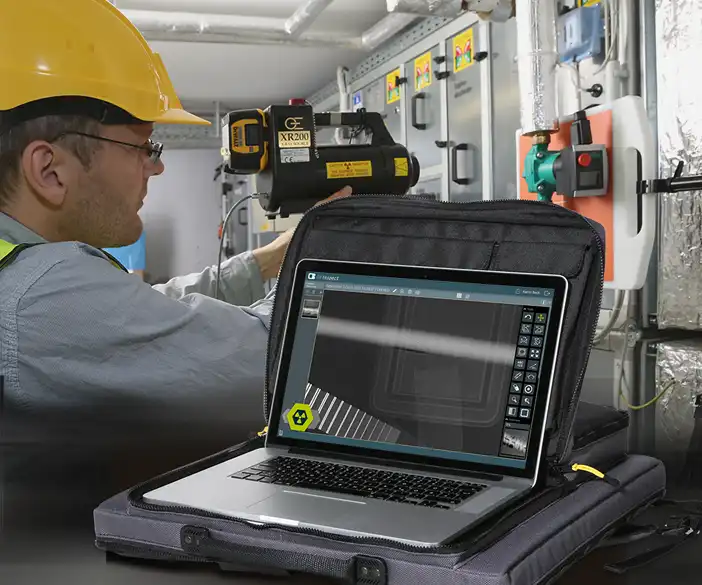

Leonardo DR nano
Amadeo P - Portable X-ray units partly with pulse technology
Medici DR System [mobile]
Medici DR System [CMOS]
Your ideas and projects, goals & current challenges
We will get back to you within 24 hours
Supplier of X-ray equipment & radiology software for more than 30 years
OR Technology has been developing sophisticated and individual tailored X-ray solutions and X-ray software for medicine and industry for the international market since 1991.
All development processes take place in our company in Germany. A close dialogue with physicians, universities and engineers is an important part of our company's innovative activities.
We successfully installed several thousand X-ray and image processing systems in Germany and abroad. Satisfied customers in over 120 countries use the digital image management solutions developed by the Rostock specialists (as of February 2022).
Frequently asked questions
Our X-ray systems are designed so that they do not require any regular maintenance. If you do have a problem, you can contact us at any time. OR Technology has its own support centre [+49 381 36 600 800] with over 20 employees. Here you will receive help asap. Usually, software problems can be solved quickly via remote maintenance. Our field technicians will make an appointment with you asap if something needs to be repaired or replaced on site.
Archiving and long-term storage are the key elements of any modern digital imaging system. The latest as well as the archived data need to be accessible in the short-term and a high level of security against failure are the requirements for such systems.
dicondePACS® meets these requirements and is a safe investment for the future due to its archive structure (online/offline as archive copy). With this "double" archive, you can manage and store all your data in one spot.
The current images of the image-giving modality are stored on the PACS image server of your network on a so-called RAID system. A hard disk RAID still works even if a single disk is defective.
Additionally, all new data is saved on an extra space as daily backup. Multiple storage guarantees that even data not yet backed up by the daily backup is redundant. Older images and documents are stored on inexpensive mass storage devices in the network. In this way, the entire archive can be kept online.
The daily backup with the dicondePACS® backup module can be carried out either on a hard disk, DVD, a streamer or a network storage. Storage on optical or magneto-optical storage media ensures the minimum long-term archiving of ten years legally required in the X-ray Ordinance.
Speed is key
Images of the last months stored on the server are available at any workstation within seconds due to modern hard drives, RAID system and fast network connection. Older images are saved several times on local PCs with conventional hard disks, the so-called PC farm. Loading times from this area of the archive are only slightly slower than from the image server. Even in the event of a failure of a PC farm computer, working is still possible without any problems and without additional downtime due to the standard double storage.
You can easily and quickly connect with experts and assessors worldwide via our ORCA® Cloud. To meet your high security standards, all servers are located in Europe.
ORCA® Share also enables better use of expert resources. An enterprise-grade platform for securely transferring and sharing images or data offers you, your staff or a reviewer a fast exchange. The recipient receives protected access to the shared images via an email link. No separate software needs to be installed.
Many helpful integrated functions and the intuitive operation make work and documentation in daily routine operation much easier. The integrated, fully-fledged ORinspect viewer allows the evaluation of radiographic images within the acquisition software and supports the creation of inspection reports according to standards.
In addition to the standard tools, ORinspect offers the following special measurement tools:
- SNR measurement and SNRn determination (ISO 17636-2, EN 12681-2)
- Automatic determination of the image blur number according to ISO 19232-5
- Automatic qualification according to SNR-norming based on double wire measurement (ISO 19232-5)
- Display of grey values, grey value profiles
- False colour display (pseudo colour)
- Intelligent image inversion
- Wall thickness measurement
- And much more ...
The integrated reporting tool helps to easily create inspection reports. It ensures convenient creation of various report templates (e.g. work reports) incl. use of Word macros with integrated images. Optionally, a digital dictation system with speech recognition can also be used.
OR Technology offers a special exchange service for X-ray detectors so that you can resume your work immediately in the event of a malfunction. This includes the free loan of a comparable replacement detector for the period of repair of the detector for which the service package was ordered. This service applies regardless of whether the detector is still under warranty or not.
