Amadeo P high frequency, industrial X-ray machines for radiographic testing (RT) in the NDT sector

High-quality X-ray images are nowadays no longer a problem for portable, industrial X-ray machines (Monoblock). The state-of-the-art high-frequency technology offers high performance in miniature format using only a standard power connection (220V/110V). Its low weight, user-friendly operation and the integrated interface for using the X-ray machine with a digital system enable many different test methods in the NDT industry.

Amadeo P-90/20VB - battery-operated monoblock portable X ray machine for radiographic testing

Amadeo P-90/20VB portable, industrial X-ray machine (monoblock) with high frequency technology

Long-lasting, lightweight X-ray machine (approx. 7 kg including battery) with innovative microprocessor and new battery technology, ideal for radiographic testing, collimator with increased brightness and integrated timer

Productinformation:  Amadeo P-90/20VB [PDF]
Amadeo P-100/20HB - x-ray inspection equipment for non destructive testing

Amadeo P-100/20HB portable, industrial X-ray machine (monoblock) with high frequency technology

Battery-operated, industrial X-ray machine (11.2 kg including battery), equipped with a high powered rechargeable lithium-ion polymer battery, no AC power supply necessary, battery life approx. 300 exposures

Productinformation:  Amadeo P-100/20HB [PDF]
Amadeo P-100/35HB - battery-operated, industrial portable X ray machine with high frequency technology for radiographic weld testing

Amadeo P-100/35HB portable, testing X-ray machine (monoblock) with high frequency technology

Compact, lightweight, battery-operated X-ray machine for industrial testing Amadeo P-100/35HB (approx. 14 kg including battery), high powered rechargeable lithium-ion polymer battery, 3000 mAs power output without recharging, no external power sources required to produce X-ray images, state-of-the-art microprocessor controls, PROM memory, battery status indicator,  mAs energy level display and dual laser collimator

Productinformation:  Amadeo P-100/35HB [PDF]
Amadeo P-110/100H – industrial digital X ray unit for weld testing

Amadeo P-110/100H portable, industrial X-ray machine (monoblock) with high frequency technology

Features include modern LED light, high performance capacitor for a stable and reliable power supply, non-stop operation during brief power outage or relocation, weight approx. 19.6 kg,  max. power requirement 5.0 kW,  0.1-100 mAs

Productinformation:  Amadeo P-110/100H [PDF]

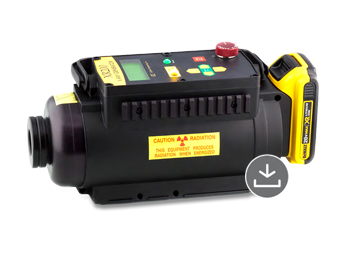

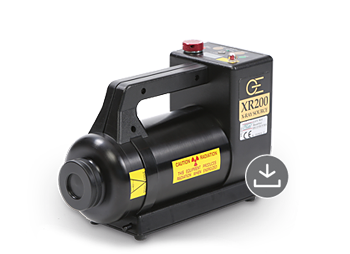

Golden Engineering XR200 battery-operated NDT Xray machine with pulse technology for weld radiography

Golden Engineering XR200 battery-operated, NDT X-ray machine with pulse technology

150 kV pulsed X-ray device ideal for weld testing (NDT), the unit‘s high powered battery and low overall weight guarantee easy handling

  • includes hard shell carrying case and remote cable
  • peak output 150 kV, 2.6 mR, 6.000 pulses per battery charge
  • dimensions 14.81 x 10.82 x 27.15 cm, weight 10.7 lb [4.8 kg] including battery

Productinformation:  Golden Engineering XR200 [PDF]

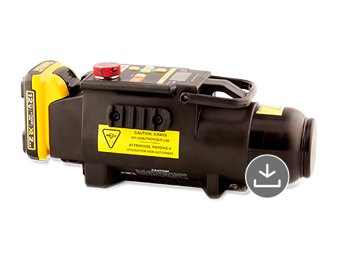

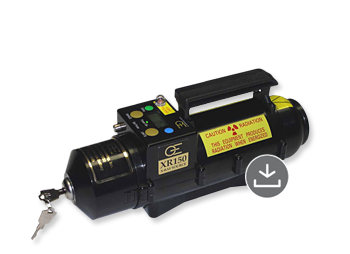

Golden Engineering XR150 X ray machine for weld testing

Golden Engineering XR150 battery-operated, NDT X-ray machine

Portable, industrial X-ray machine with pulse technology ideal for NDT and the security sector

  • includes hard shell carrying case and remote cable
  • peak output 150 kV, 0.75 - 1.3 mR per pulse [2.0 - 2.8 mR per pulse*]
  • Dimensions with battery 26.87 x 9.91 x 10.95 cm [26.65 x 8.99 x 11.96 cm*]
  • 2.22 kg (4.9 lbs) [2.58 kg (5.7 lbs.)*]

* Values for version XR150-20

Productinformation:  Golden Engineering XR150 [PDF]

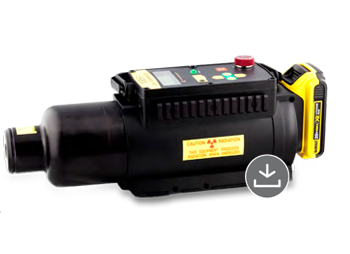

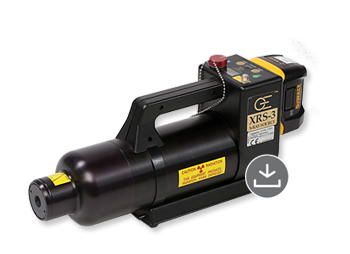

Golden Engineering portable, industrial, weld X ray machine XRS 3 for material testing

Golden Engineering XRS-3 battery-operated, NDT X-ray machine

Portable, industrial X-ray machine with pulse technology ideal for NDT and the security sector

  • includes hard shell carrying case and remote cable
  • peak output 270 kV, 2.6 mR/pulse,
  • pulse rate 15 pulse per second, 5500 pulses per battery charge
  • dimensions 14.81 x 10.87 x 36.07 cm, weight 5.3 kg (including battery)

Productinformation:  Golden Engineering XRS-3 [PDF]

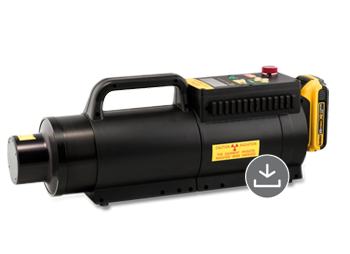

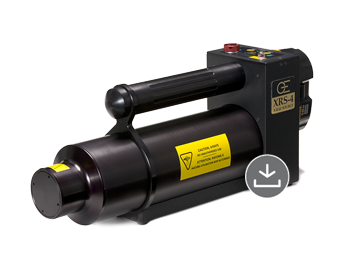

Golden Engineering XRS 4 - industrial, welding x ray machine

Golden Engineering XRS-4 battery-operated, NDT X-ray machine

Portable industrial X-ray machine with pulse technology ideal for NDT and the security sector

  • includes hard shell carrying case and remote cable
  • max. Output 370 kV, 4.0 mR - 7.0 mR per pulse, 3.0 x 3.0 mm focal
  • Dimensions 7.05" (17.91 cm)  x 4.80" (12.19 cm) x 19 .26" (48.92 cm)
  • Weight 18.3 lb / 8.3 kg (including battery)

Productinformation:  Golden Engineering XRS-4 [PDF]
GIERTH TR 80/20 - Maximum power – minimum size for industrial radiographic material or welding tests

GIERTH TR 80/20 ULTRA LIGHT high frequency, portable X-ray machine

High frequency X-ray machine for radiographic testing (only 6.00 kg, max. 20mA at 60kHz) with full-wave inverter system, ideal for non-destructive radiographic testing(NDT)

Productinformation:  GIERTH TR 80/20 [PDF]
GIERTH TR 90/20 Battery - high frequency industrial X ray machine

GIERTH TR 90/20 Battery high frequency, battery-operated X-ray machine

A high powered and wireless, testing unit with a new design: 6.8 kg, max. 20mA at 100kHz with full-wave inverter system, ideal for extremity X-rays

Productinformation:  GIERTH TR 90/20 Battery [PDF]
GIERTH TR 90/30 peak - NDT X-ray machine for radiographic industrial radiography e.g. weld testing

GIERTH TR 90/30 peak Maximum power – minimum size

Powerful high frequency, industrial X-ray machine (only 6.5 kg) with full-wave inverter system, ideal for digital radiographic testing

Productinformation:  GIERTH TR 90/30 peak [PDF]
GIERTH HF400H - digital NDT X-ray machine for welding tests

GIERTH HF400H NDT X-ray machine with dual laser pointer and rotating collimator

The powerhouse among the portable HF X-ray machines (16.8 kg including light beam collimator and dual laser pointer): high powered HF X-ray machine with full-wave inverter system, max. frequency 100 mA

Productinformation:  GIERTH HF400H [PDF]
nach oben

Any further questions?

Which portable X-ray inspection equipment is the right one for your purposes.
Let's find out together.
Icon - call us for non destructive x ray equipment +49 381 36 600 500 Icon - write us a mail info@or-technology.com
Contact
OR Technology - Call our Sales-Team





nach oben

Add-ons to complete the digital NDT X-ray system

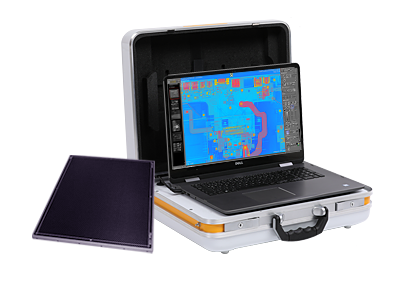

Digital X-Ray ZfP | NDT: mobile, inspection X-ray Equipment

Wireless radiography with the incredibly light and compact X-ray suitcase system

The portable, inspection X-ray system for Non Destructive Testing (NDT) of welds, castings and forgings, for various applications: The combination of a portable Amadeo P-AX generator and the Leonardo suitcase solution constitutes a perfect symbiosis for mobile, industrial X-ray especially outdoors. The newest model in our Leonardo series, the compact and versatile Leonardo DR mini II, combines X-ray detector technology with a high-performance acquisition and control software ORinspect for Non Destructive Testing (NDT). Weighing only 8.9 kg, the system is one of the lightest X-ray solutions worldwide.

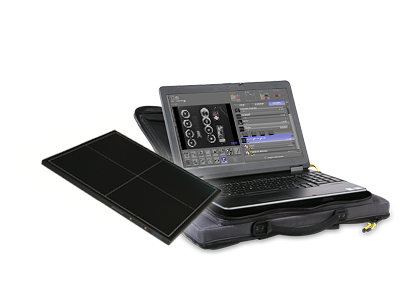

ZfP | NDT: Superlight, industrial testing X-ray system in a backpack



Superlight, portable, radiographic testing X-ray system in the backpack

In combination with a portable Amadeo P-AX X-ray generator you have a superb solution for industrial radiography. The Leonardo DR nano consists of two components only, a wireless X-ray detector and a tablet PC/notebook. Weighing only approx. 8 kg (complete package, bag incl. tablet PC, accessories and 12" x 10" flat panel detektor), the system is one of the lightest portable X-ray solutions worldwide.


nach oben
Subject to technical modifications
