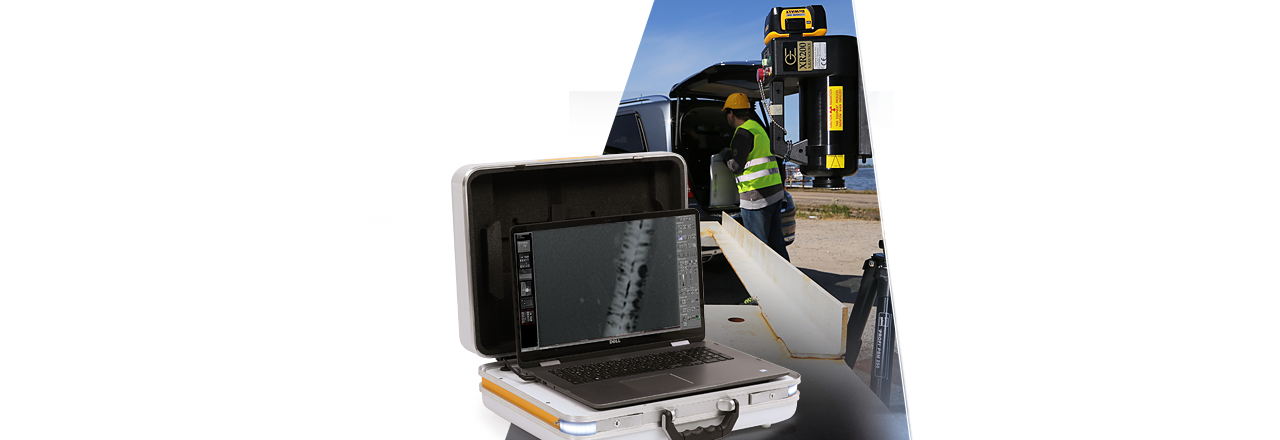

The X-ray suitcase for mobile applications in material testing or quality inspection

The portable X-ray system for Non Destructive Testing (RT) of welds, castings and forgings, etc. for various applications:

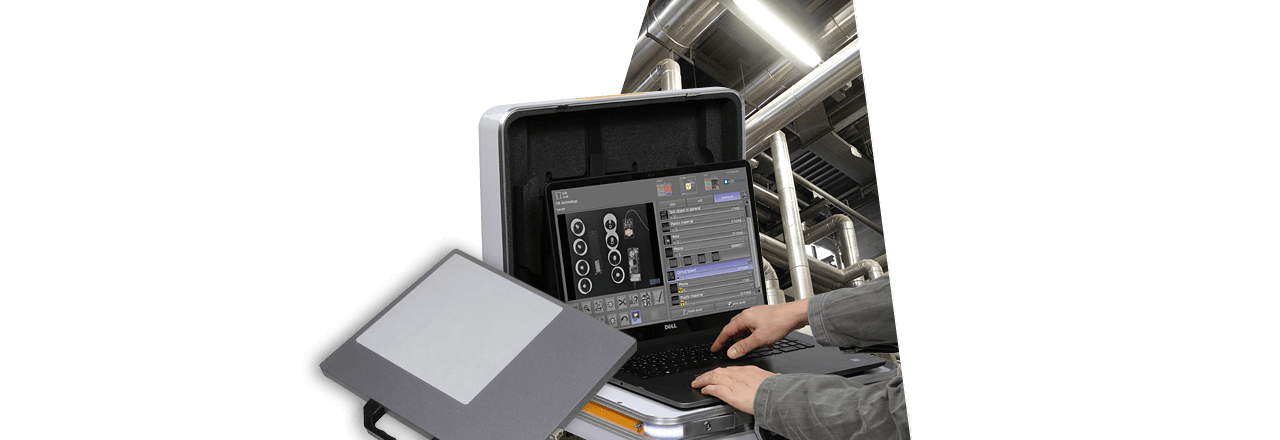

The newest model in our Leonardo series, the compact and versatile Leonardo DR mini II, combines X-ray detector technology with a high-performance acquisition and control software ORinspect for Non Destructive Testing (RT). Weighing only 8.9 kg, the system is one of the lightest suitcase X-ray solutions worldwide.

The Leonardo DR mini II is optimised for stationary as well as mobile use and easy to operate. Its built-in 17" premium notebook with high resolution touchscreen monitor as well as integrated acquisition and control software, functions via touchscreen and mouse, guarantees excellent image display. The notebook can easily be removed from its secured location within the case for use in an optimal ergonomic position or as a tablet during presentations.

The professional high-performance image processing is adaptable to individual users’ and material-specific requirements and ensures outstanding image quality. The integrated diagnosis software provides global, rapid and inexpensive consultations via e-mail or ORCA cloud services in compliance with applicable regulations.



Two versions of the Leonardo DR mini II system are available:

Leonardo DR mini II [1210]

mobile X-ray system with wireless CsI flat panel detector 12" x 10",
format 24 x 30 cm

Leonardo DRw mini II [1417]

mobile X-ray system with wireless CsI flat panel detector 14" x 17",
format 35 x 43 cm

Features & Benefits of the Leonardo DR mini II System

Ingeniously designed

wireless and battery-powered – designed for use in confined spaces as well as in the field

Wireless

battery-operated system can run continuously for over four hours – providing flexibility and maneuverability in difficult environments

Compact

weighing in at approx. 8.9 kg, the case fits behind any car seat

Practical

17" laptop can easily be removed from its secured location within the case – for use in an optimal ergonomic position or as a tablet during presentations

Excellent high-quality X-ray detector based on a caesium iodide (CsI) scintillator – top image quality even at low X-ray doses
User-friendly

self-explanatory OR Technology acquisition and control software ORinspect for non-destructive testing

Fast

shortly after taking the shot (6 - 8 seconds), the X-ray image is already available for viewing and diagnostic evaluation

Accessibility

integrated acquisition and control software software offers a worldwide, fast and cost-effective exchange of information (via cloud or email)

Acquisition and control software for X-ray images

Portable X-ray case NDT

The heart of each Leonardo NDT system is the  ORinspect X-ray acquisition and control software developed by OR Technology.

The software controls X-ray generators and X-ray units of various manufacturers, providing a smooth and structured workflow. A intuitive and user friendly GUI (graphical user interface), operated by touchscreen or mouse, completes the system.

The professional image processing can be adapted to individual user needs and offers outstanding image quality. It has been specially developed to enable material-specific optimisation, guaranteeing the highest quality of X-ray images.

[more information...]


X-ray detectors for Leonardo NDT systems

X-ray detector NDT

Here you can find a list of the available X-ray detectors. Different types and sizes of X-ray detectors allow an individual configuration of the system.

[to the overview...]

  • Product information X-ray suitcase Leonardo DR mini II
    The compact suitcase solution - the newest model in our Leonardo series combines X-ray detector technology with a high-performance acquisition and control software

  • Product overview Strong Workmate for Non-Destructive (RT)
    Digital systems from OR Technology deliver X-ray images of the highest quality to detect even the smallest deviations during daily inspections.

  • Product information protection box for X-ray detector XenOR 24CW
    This protective housing has been especially developed for the XenOR 24CW X-ray detector in order to protect it from external impacts and strong concussions. The robust housing comprises numerous protective layers and a circumferential rubber surround so that impacts can be absorbed and the load rating increased.

Optional add-ons

Amadeo P

Amadeo P  Practical portable and light-weight generators
Due to their low weight, user-friendly operation and integrated interface they can be used in numerous applications in practices, clinics and for out-patient purposes.



PACS MobileView Materialpruefung

dicondePACS® ®MobileView  the web-based viewer for mobile devices
The web-based viewer contains all the basic functions for viewing images. You can view images virtually with any browser on mobile devices. dicondePACS®MobileView offers a previously unknown degree of mobile freedom, the images are available anywhere.



PACS Vermessung Materialpruefung

dicondePACS®   the sophisticated and high-tech image management solution
The dicondePACS® software acquires, processes, transfers and archives images. Thanks to a diverse array of special functions, the dicondePACS® can be customised for many applications.



Wandstative Wandhalterungen Materialpruefung


Trolley stands and cassette holder for digital X-ray
A range of trolley stands and cassette holders can be found here.

Technical specifications for Leonardo DR-mini II

Compact and light suitcase

Total weight: 8.9 kg (including the complete suitcase, notebook, power supply and electronics), size: ca. 49 x 39.5 x 18.5 cm

Notebook

Convertible 2-in-1 premium notebook with large monitor, newest 8th generation Intel® Core™ i7 processor, 16 GB RAM, 17,3“ full HD touchscreen monitor, keyboard with background lighting, SSD hard disk 512 GB

Flat panel detector CsI 24 x 30 cm (10“ x 12“) wireless*

Wireless X-ray imaging!
Fits into an existing X-ray system without requiring modification (in conformity
with the X-ray film cassette), fast charging, long life batteries incl. battery charger

Flat panel detector CsI 35 x 43 cm (14" x 17") wireless*

Wireless X-ray imaging!
Fits into an existing X-ray system without requiring modification (in conformity with the X-ray film cassette), fast charging, long life batteries incl. battery charger

* Various types of flat panel on request

Leonardo DR mini II software package

with ORinspect, the professional acquisition and control software for the non-destructive X-ray testing with modern graphical user interface with basic software included:

  • ORinspect DICONDE Send SCU
  • ORinspect DICONDE Object CD
  • ORinspect Cognition Optimised Processing
Extension for battery operation

Allows working without power connection up to an average of 4-6 hours in normal mode

Shoulder strap for X-ray case

Easy-to-use, detachable strap for convenient transport

Optional components for the Leonardo DR mini II system

Wireless synchronisation

for any  X-ray generator

Protective case for detector

Available for all three versions

  • For 35 x 43 cm (14“ x 17“) detectors
  • For 24 x 30 cm (10“ x 12“) detectors

Available with and without grid

Carrying case for 35 x 43 cm (14" x 17") detector

Available for DR mini II [1417] and DR mini II [1417]
Dimensions: 55.5 x 49 x 6 cm

Amadeo P high frequency X-ray system

Portable high frequency X-ray units for high-quality X-ray images: Low weight and user-friendly operation  enable various fields of application in small animal practices and equine clinics
