Medici DR systems – DR retrofits for your existing stationary X-ray system for materials testing and quality inspection

Industrial production relies on non-destructive testing procedures. Radiographic testing is one of the most common inspection methodologies available in industrial radiography. Radiographic methods can be used to identify hidden flaws, cavities, inclusions and material structures. Until recently, images captured on film were industry standard. With the Medici DR X-ray detector upgrade, work routines for materials testing and quality inspection become simpler and faster. Furthermore, the digital technology clearly leads to improved image quality and higher reproducibility. Our Medici DR systems are available for nearly every X-ray unit manufactured. After choosing the appropriate make and size of wireless flat panel detector, the system can be configured according to your needs.

The acquisition and control software for radiographic testing ORinspect is easy to operate, has a touchscreen interface, improves the workflow and produces outstanding X-ray images. Naturally, Medici DR systems can be integrated with your information system software and programmed to transfer X-ray images to an image management system (dicondePACS).

Should you lack access to a PACS server but still require images to be distributed (e.g., within your company or to colleagues via internet), our dicondePACS image processing system also offers file sharing.





Benefits of a digital upgrade with Medici DR systems

Choose the optimal configuration for your X-ray system

A large selection of X-ray detectors in various sizes and from diverse manufacturers

Improve your diagnosis

Excellent image quality with automatic image processing, no need for manual corrections

Reduce operating costs, be environmentally friendly

No processing chemicals necessary

Save time and space

Digital image transfer and archiving

Second opinions in a flash

Well-designed image management, for example via a cloud solution

No need to access X-ray unit

Auto Exposure Detection (AED) means you no longer have to access the x-ray unit or make manual adjustments to the system. Just as easy to install as a CR system.

ORinspect: Professional acquisition and control software for radiographic testing (RT)

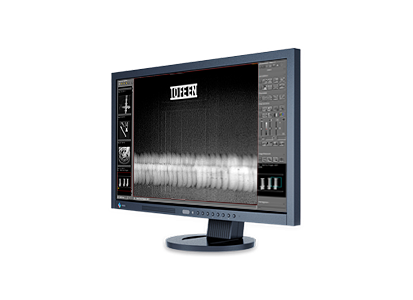

PACS Basispaket Materialprfung

The heart of each Amadeo NDT system is the  ORinspect X-ray acquisition and control software developed by OR Technology.

The software controls X-ray generators and X-ray units of various manufacturers, providing a smooth and structured workflow. A intuitive and user friendly GUI (graphical user interface), operated by touchscreen or mouse, completes the system.

The professional image processing can be adapted to individual user needs and offers outstanding image quality. It has been specially developed to enable material-specific optimisation, guaranteeing the highest quality of X-ray images.

[more information...]

  • Brochure Strong Workmate for Non Destructive Testing (RT)
    Our portable digital systems generate images in the highest quality for detecting minimal deviations for your inspection requirements.

  • Product information flat panel PerkinElmer 3543, wireless
    Excellent image quality, pixel resolution of over 100µm, fits into a conventional cassette Bucky tray so that X-ray systems don't have to be modified, active area of 14”x17” (35x43cm)

  • Product information flat panel PerkinElmer 4343F, tethered
    The flat panel offers a pixel resolution of 100μm (up to 5lp/mm – 14“x17“) and fits into a conventional Bucky wall stand or table, just like a film-screen cassette, active area of 17"x17" (43x43cm)

  • Product information flat panel detector XenOR 35CW, wireless
    Compact flat panel detector in cassette size developed for mobile and stationary radiography, weighing only 3.7kg and offering an active area of 14”x17” (35x43cm) and providing the freedom of wireless operation

  • Product information flat panel detector XenOR 43CL, tethered
    Various fields of application for digital radiography due to Auto Exposure Detection (AED), low weight and cassette-sized, active area 17"x17" (43x43cm)

  • Product information flat panel detector XenOR 35CL, tethered
    The robust flat panel detector was developed for a large variety of uses in digital radiography, for instance as an upgrade to existing X-ray systems, active area 35x43cm (14 x17")

Further Varex X-ray detectors for the NDT sector are available:

•   XRD 0822 xO/xP: 8 x 8 inch [20 x 20 cm], 200 μm pixel pitch, up to 65,536 gray levels, radiation-hardened for harsh environments, Gadox or CsI:Tl

•   XRD 1611 xP: 16 x 16 inch [41 x 41 cm], greater than 16 million pixels, 100 μm pixel pitch, 65,536 grey levels, direct deposit CsI or Gadox

•   XRD 1620 xN CS: 16 x 16 inch [41 x 41 cm], 100 μm pixel pitch, 65,536 grey levels, direct deposit CsI or Gadox

•   XRD 1621 xN ES: 16 x 16 inch [41 x 41 cm], 200 μm pixel pitch, 65,536 grey levels, direct deposit CsI or Gadox

•   XRD 1622 AO, AP: 16 x 16 inch [41 x 41 cm], 200 μm pixel pitch, 65,536 grey levels, direct deposit CsI or Gadox

•   XRD 1642 AP: 16 x 16 inch [41 x 41 cm], 400 μm pixel pitch, 65,536 grey levels, radiation-hardened for harsh environments, direct deposit CsI or Gadox



The system includes the following components:

•    X-ray detector (built-in or portable)
•    ORinspect: Professional acquisition and control software for radiographic testing (RT)
•    Control panel with touchscreen

  • Medici reference - X-ray imaging of pearls in Gübelin Gem Lab Ltd. Luzern, Switzerland and Hong Kong
    To be able to continue conducting reliable and even more efficient tests to differentiate between natural and cultured pearls and to establish the quality of cultured pearls with nuclei, the company decided to upgrade to digital X-ray imaging systems by OR Technology.

Optional add-ons

PACS MobileView Materialpruefung


dicom
PACS
®MobileView the web-based viewer for mobile devices
The web-based viewer contains all the basic functions for viewing images. You can view images virtually with any browser on mobile devices. dicomPACS®MobileView offers a previously unknown degree of mobile freedom, the images are available anywhere.

PACS Vermessung Materialpruefung


dicomPACS®
the sophisticated and high-tech image management solution
The dicomPACS® software acquires, processes, transfers and archives images. Thanks to a diverse array of special functions, the dicomPACS®  can be customised for many applications in the security sector.
