Wireless X-ray detectors for OR Technology security X-ray systems

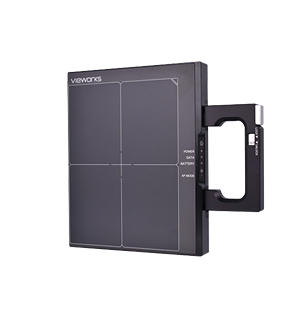

Wireless X-ray detector Gadox detector Vieworks VIVIX-V 1723P

Gadox detektor Vieworks VIVIX-V 1723P [to the product information]

  • Long batterie lifetime of 8 hours (capturing), 9 hours standby
  • Excellent temperature range -20°C to +50°C
  • Dust and water resistant (IP67)
  • 40 kVp - 450 kVp (IR-192)
  • Max. exposure time up to 180 seconds
  • Removable handle can be positioned on both sides
  • Pixel matrix: 2,300 x 3,064 Pixel
  • Dimensions (W x H x D): 20.82 x 25.65 × 2.75 cm
  • Weight: 2.4 kg

The Vieworks VIVIX-V 1723P is used in the following X-ray systems for the NDT sector:
Medici, Amadeo NDT, Leonardo DR mini II, Leonardo DR nano




X-ray detector Varex XRpad2 4336 - compatible with Medici, Leonardo DR nano and Leonardo DR mini II X-ray systems



X-ray detector Varex XRpad2 4336 with CSI or Gadox [to the product information]

  • Dynamic mode with continuous output ofup to 8 fps
  • Onboard preview: The flat panel detector sendsa preview immediately after image acquisition
  • Acknowledge function: Buffering of acquiredimages
  • High resolution 100 μm pixel pitch (5.0 lp/mm)
  • Pixel array 3524 × 4288
  • Dimensions (W x H x D) 384 mm × 460 mm × 15.5 mm
  • Weight approx. 3.2 kg (7.0 lbs)

The Varex XRpad2 4336 is used in the following X-ray systems for the security sector:
Medici, Leonardo DR nano, Leonardo DR mini II



XenOR 35CW X-ray detector

X-ray detector XenOR 35CW   [to the product information]

  • Automatic synchronisation of detector and generator by means of AED
  • Built-in fold-down handle
  • Extra long battery life with 1400 shots/ charge (10 second interval between shots) and 7-hours standby time
  • Active area 43.4 x 35.5 cm (14" x 17")
  • Pixel pitch 154 µm
  • Pixel array 2816 x 2304
  • Resolution approx. 3.3 lp/mm
  • Dimensions (W x H x D) 460 x 384 x 15 mm
  • Weight approx. 3.7 kg

The XenOR 35CW is used in the following X-ray systems for the security sector:
Medici, Leonardo DR nano, Leonardo DR mini II



Varex PaxScan 4336Wv4 Detector for digital X-ray machines

X-ray detector Varex PaxScan 4336Wv4  [to the product information]

  • Detector based on amorphous silicon (a-Si) with PIN technology and with caesium iodide (CsI) scintillator
  • Automatic synchronisation of detector and generator by means of AED
  • Pixel pitch 139 µm
  • Resolution approx. 3.6 lp/mm
  • A/D conversion 16 Bit
  • Dimension ca. 38.3 x 45.9 x 1.5 cm
  • Weight ca. 3.0 kg
  • IP54 water resistant

The Varex PaxScan 4336Wv4 is used in the following X-ray systems for the security sector:
Medici, Leonardo DR nano, Leonardo DR mini II



Varex XRpad2 3025 HWJ

Varex XRpad2 3025 HWJ [to the product information]

  • Dynamic mode with continuous output of up to 10 fps
  • The Gadox-Fine scintillator used in the detector guarantees the best image quality
  • Onboard preview: The flat panel detector sends a preview immediately after image acquisition
  • Acknowledge function: Buffering of acquired images
  • High resolution 100 μm
  • Pixel pitch (5.0 lp/mm)
  • Pixel array 2508 × 3004
  • Dimensions (W x H x D): 282 mm × 332 mm × 15.5 mm
  • Weight approx. 1.8 kg (4 lbs)

The Varex XRpad2 3025 HWJ is used in the following X-ray systems mainly for art, archaeology and geology or in the jewelry industry (pearl X-ray):
Medici, Leonardo DR mini II





Subject to technical modifications
