The lightweight X-ray suitcase for field and on-board hospitals

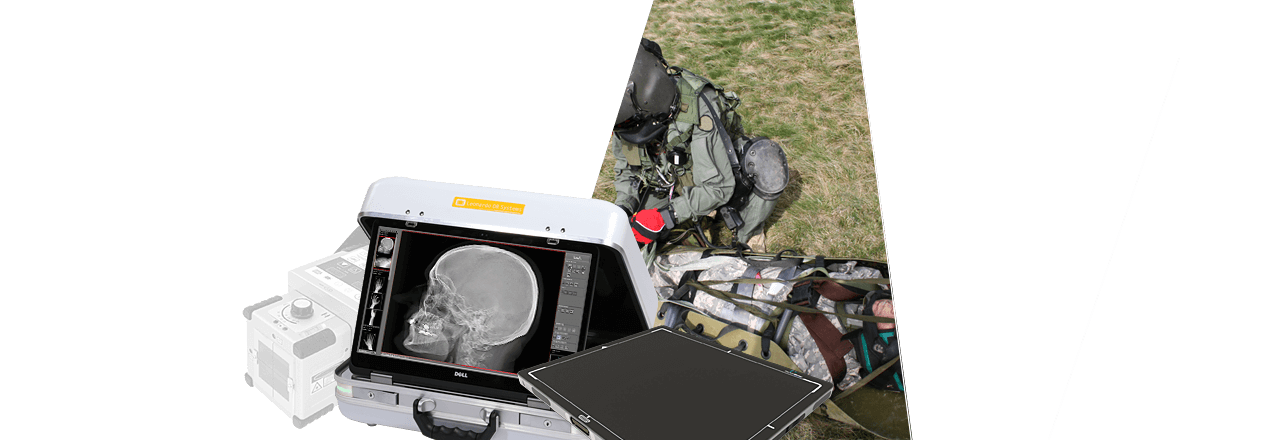

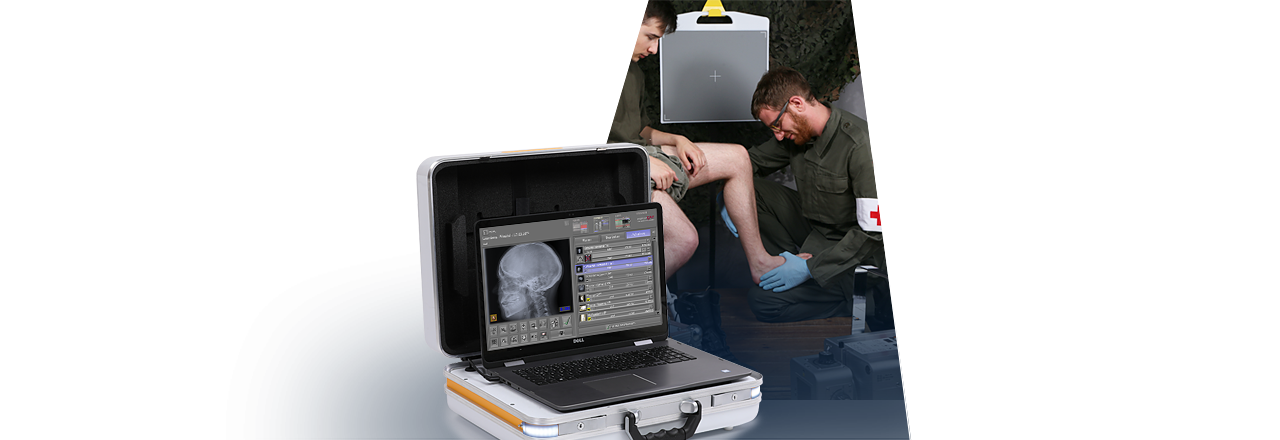

The highly functional X-ray suitcase Leonardo DR mini II - the latest development of the Leonardo series - combines X-ray detector technology with powerful acquisition and diagnosis software. Weighing only approx. 8.9 kg, the compact suitcase with the shock-absorbing, dirt-repellent plastic coating is one of the lightest X-ray systems worldwide. Leonardo DR mini II can also be easily transported with the shoulder strap supplied. The X-ray case is used both in small medical wards and for outpatient care of patients in field hospitals.

The X-ray suitcase is quickly ready for use and easy to operate. A built-in 17" premium notebook with touch screen and high screen resolution as well as the integrated acquisition and diagnosis software guarantee an excellent image display. The X-ray suitcase has two large LEDs clearly visible even from a distance of several meters. These LEDs indicate the software status, such as "Ready to expose". In addition, a signal tone sounds when the status changes. The notebook can be easily removed from the suitcase, moved into an ergonomic working position and used as a tablet for presentation purposes.

The straightforward operation of the system and the integrated acquisition and diagnostic software by OR Technology make it easy even for less radiologically trained personnel to take optimal X-ray images. In addition, the integrated X-ray assistant provides videos to support the correct positioning of the patients during the X-ray process. The possibility of diagnosis supported by an automatic, AI-assisted thorax screening (by a qualified third-party provider) is also included in the software (optional).

nach oben

Two versions of the Leonardo DR mini II system are available:

Leonardo DR mini II

portable X-ray system with wireless CsI flat panel detector 12" x 10",
format 24 x 30 cm

Leonardo DR mini II

portable X-ray system with wireless CsI flat panel detector 14" x 17",
format 35 x 43 cm

nach oben

Features & Benefits of the Leonardo DR mini II System

Ingeniously designed

wireless and battery-powered – designed for use in confined spaces as well as in the field

Wireless

battery-operated system can run continuously for over four hours – providing flexibility and maneuverability in difficult environments

Compact

weighing in at approx. 8.9 kg, the case fits behind any car seat

Practical

17" laptop can easily be removed from its secured location within the case – for use in an optimal ergonomic position or as a tablet during presentations

Efficient

integration into your existing patient management system – patient data at the push of a button

Excellent high-quality X-ray detector based on a caesium iodide (CsI) scintillator – top image quality even at low X-ray doses
User-friendly

self-explanatory OR Technology acquisition software dicomPACS®DX-R including free special measurement functions - the possibility of diagnosis supported by an automatic, AI-assisted thorax screening (by a qualified third-party provider) is also included in the software (optional).

Fast

shortly after taking the shot (6 - 8 seconds), the X-ray image is already available for viewing and diagnostic evaluation

Cleverly designed

fully integrated radiographic positioning guide for all examinations in human medicine with comprehensive notes, photographs, videos and sample X-ray images

Accessibility

integrated diagnostic software offers a worldwide, fast and cost-effective exchange of information via email

One of a kind

Safe and quick registration of emergency patients and user-defined macros for recurring examinations, e.g. thorax screenings

Visible

Software status display via large 4-colour LEDs on the corners of the suitcase

Audible

Audio output on status change

Remote controlled

You can use a portable terminal, such as your smartphone, via a special app as a remote control to plan and view images. Attached to your arm or the X-ray generator, it also serves as a control element allowing the user to gain a first impression of the images taken without having to move to the actual console workstation (tablet PC). You can find more information about the Remote Control app here.

nach oben

Acquisition and diagnostic software for X-ray images

DXR human

At the heart of each Leonardo system is the dicomPACS®DX-R acquisition and diagnostic software with the integrated X-ray positioning guide developed by OR Technology.

The software controls X-ray generators and X-ray units of various manufacturers, providing a smooth and structured workflow. A simple and user friendly GUI (graphical user interface), operated by touchscreen or mouse, completes the system.

The professional dicomPACS®DX-R image processing can be adapted to individual user needs and offers outstanding image quality in human and veterinary medicine. It has been specially developed to enable organ specific viewing quality optimisation, guaranteeing the highest quality of X-ray images.

[more information...]



nach oben

Our Leonardo cases "Made in Germany"

Our Leonardo cases are manufactured exclusively in Germany. Final assembly and quality control are realised at our production facility in Rostock.This way we can guarantee the best product quality for you.

Software and product development are carried out in-house at OR Technology, too, since current developments show that we need to think and act in managable ways. You benefit from an independent supplier who provides you with everything from a single source, ensures service and support for the entire life of the X-ray systems and guarantees manageable delivery times.


Our hard-working employees from the production department during the final assembly of the Leonardo DR mini II cases:

Production of the Leonardo X-ray systems Final assembly of the Leonardo II mini cases Set-up of the Leonardo mini II X-ray systems
nach oben

X-ray detectors for Leonardo mini II systems

Digitales Röntgen: Akquisitions- und Befundsoftware für Röntgenbilder

Here you can find a list of the available X-ray detectors. Different types and sizes of X-ray detectors allow an individual configuration of the system.

[to the overview...]

nach oben

Any further questions?

Is the Leonardo DR mini II motorised the right digital, mobile X-ray unit for you?
Let's find out together.
Icon - call us+49 381 36 600 500 Icon - write us a mailinfo@or-technology.com
Contact
OR Technology - Call our Sales-Team



nach oben
  • Product information X-ray suitcase Leonardo DR mini II
    The compact suitcase solution - the newest model in our Leonardo series combines X-ray detector technology with a high-performance acquisition and diagnostic software

  • Brochure Digital X-ray for mobile and inpatient medical facilities
    Portfolio for military emergency medical services: Mobile digital all-in-one system for your medical faciIity or field hospital, portable digital systems as an upgrade kit for already existing mobile or stationary X-ray equipment, stationary digital X-ray complete system

  • Product information protection box for X-ray detector XenOR 24CW
    This protective housing has been especially developed for the XenOR 24CW X-ray detector in order to protect it from external impacts and strong concussions. The robust housing comprises numerous protective layers and a circumferential rubber surround so that impacts can be absorbed and the load rating increased.

nach oben

Optional add-ons

Amadeo P

Amadeo P  Practical portable and light-weight generators
Due to their low weight, user-friendly operation and integrated interface they can be used in numerous applications in practices, clinics and for out-patient purposes.



PACS MobileView

dicomPACS®MobileView the web-based viewer for mobile devices
The web-based viewer contains all the basic functions for viewing images. You can view images virtually with any browser on mobile devices. dicomPACS®MobileView offers doctors and nursing staff a previously unknown degree of mobile freedom in the workplace inside and outside of hospitals or practices, with the radiological image material available from anywhere.



PACS Software

dicomPACS® the sophisticated and high-tech image management solution
With dicomPACS® all images generated by digital X-ray, CT, MRI and ultrasound devices, as well as diverse documents (e.g. doctor's letters, medical findings, medical history, faxes) are stored in a digital patient folder and readily accessible.



Versarix

VersariX® the portable mounting system for X-ray detectors
VersariX® is the portable flat panel detector mounting system for X-ray examinations and weighing only some 400 grams, it can be attached anywhere, like on room or wardrobe doors, walls, trees etc. The sturdy hook used to suspend the X-ray flat panel detector allows virtually stepless height adjustment.



Wandstative Wandhalterungen


Trolley stands and cassette holder for digital X-ray
The variety of patient sizes poses a major challenge for manufacturers of X-ray technology and accessories. Trolley stands and casette holder must be adapted to their patients. A range of trolley stands and cassette holders can be found here.






nach oben
  • Reference X-ray suitcase Leonardo DR mini II - Digital mobile X-ray service Gulf Coast Radiology Limited Diagnostics
    Mr. Scarlett: "For me, I realised that there must be innovative and creative solutions to assist patients in need of total quality healthcare. With its sophisticated design, the operational capability and the functions for teleradiology, the portable X-ray suitcase Leonardo DR mini II convinced me immediately.“

nach oben

Technical specifications for Leonardo DR-mini II

Compact and light suitcase

Total weight: 8.9 kg (including the complete suitcase, notebook, power supply and electronics), size: ca. 49 x 39.5 x 18.5 cm, inclusive detachable strap for convenient transport

Notebook

Convertible 2-in-1 premium notebook with large monitor, newest 8th generation Intel® Core™ i7 processor, 16 GB RAM, 17,3“ full HD touchscreen monitor, keyboard with background lighting, SSD hard disk 512 GB

Flat panel detector 24 x 30 cm (10“ x 12“) wireless*

Wireless X-ray imaging!
Fits into an existing X-ray system without requiring modification (in conformity
with the X-ray film cassette), fast charging, long life batteries incl. battery charger

Flat panel detector 35 x 43 cm (14" x 17") wireless*

Wireless X-ray imaging!
Fits into an existing X-ray system without requiring modification (in conformity with the X-ray film cassette), fast charging, long life batteries incl. battery charger

* Various types of flat panel on request

Leonardo DR mini II software package

The dicomPACS®DX-R professional console software sports a modern graphical user interface, integrated radiographic positioning guide and the following modules:

  • dicomPACS®DX-R DICOM Send SCU
  • dicomPACS®DX-R DICOM Patient CD
  • dicomPACS®DX-R Cognition Optimised Processing
Extension for battery operation

Allows working without power connection up to an average of 4-6 hours in normal mode

Shoulder strap for X-ray case

Easy-to-use, detachable strap for convenient transport

nach oben

Optional components for the Leonardo DR mini II system

Wireless synchronisation

for any  X-ray generator

Protective case for detector

Available for all three versions

  • For 35 x 43 cm (14“ x 17“) detectors
  • For 24 x 30 cm (10“ x 12“) detectors

Available with and without grid

Carrying case for 35 x 43 cm (14" x 17") detector

Available for DR mini II [1417] and DR mini II [1417]
Dimensions: 55.5 x 49 x 6 cm

Amadeo P high frequency X-ray system

Portable high frequency X-ray units for high-quality X-ray images: Low weight and user-friendly operation  enable various fields of application in the outpatient and inpatient area

Wireless remote control

Possibility of wireless control of the digital X-ray system with the app "dicomPACS®DX-R remote control" via smartphone or tablet incl. display of the worklist, preview of the captured image to check the shot etc. - directly from the app a new shot can be planned

nach oben
Subject to technical modifications
