The gold standard among X-ray cases for veterinary medicine.

The gold piece of our Leonardo X-ray case series combines everything you want from a contemporary, highly functional X-ray system. The Leonardo DR mini III is fantastically light. You can X-ray endlessly without recharging and view the razor-sharp X-ray images on an anti-glare 21.5" Full HD touchscreen monitor.
The detector made of almost indestructible, flexible carrier material and 100 µm resolution completes this exceptional X-ray case, specially designed for equine doctors and mixed practices.*

*Detailed information, figures and explanations can be found here.



nach oben

Advantages of X-ray system Leonardo DR mini III



nach oben

Two versions of the Leonardo DR mini III system are available:

Leonardo DR mini III

with wireless CsI flat panel detector flex 13“ x 10“
(format 25 x 33 cm)

Leonardo DR mini III

with wireless CsI flat panel detector 14“ x 17“
(format 35 x 43 cm)

nach oben

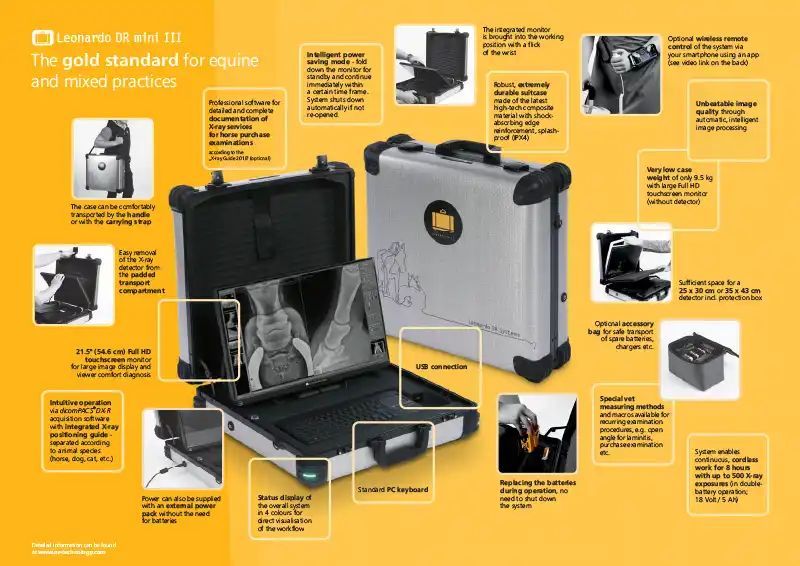

Features & Benefits of the Leonardo DR mini III System

All the benefits at a glance

All the advantages of the Leonardo DR mini III
Large images

anti-glare 21,5" (54.6 cm) Full HD touchscreen

Extremely long battery life

Up to 500 shots without charging

Very low case lightweight

Despite large HD monitor only 9.5 kg (plus detector)

Razor-sharp X-ray images

thanks to globally proven image processing

Hard-wearing detector

25 x 35 cm, almost unbreakable due to flexible carrier material (no glass), CsI scintillator and 100 μm resolution*
* other detectors possible, e.g. for mixed practices


Exchange of batteries during operation, no need to shut down the system


System enables continuous, cordless work for 8 hours with up to 500 X-ray exposures (in double-battery operation; 18 volts / 5 Ah)


Intelligent stand-by mode activated when closing the monitor - you can continue working immediately within a defined time frame or the system shuts down automatically


Intuitive operation via dicomPACS®DX-R acquisition software with integrated X-ray assistant - separated according to animal species (horse, dog, cat, etc.)

Well documented

Professional software for detailed and complete documentation of radiographic services in equine acquisition examinations


Vet special measurement methods and macros available for recurring examination procedures, e.g. open angle for laminitis, purchase examination, etc.


Robust, extremely durable case made of the latest high-tech composite material with shock-absorbing edge reinforcement, splash-proof (IPX4)

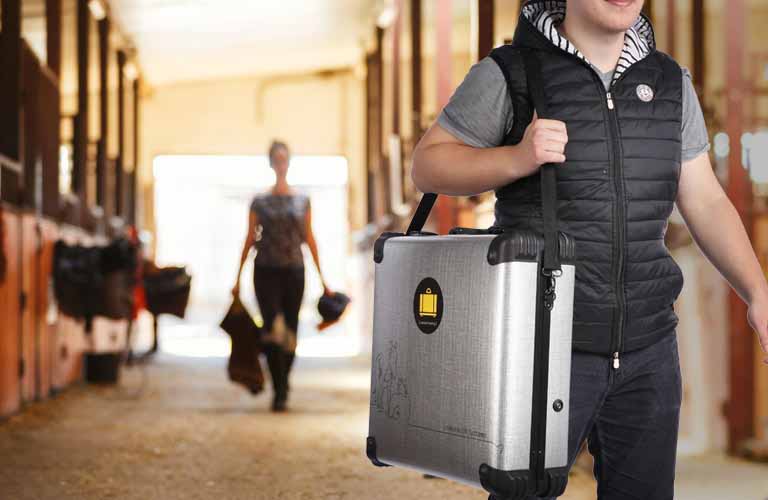

The case can be transported with the handle or the carrying strap


Status display of the entire system in four colours for direct visualisation of the workflow


Optional accessory bag for transport-safe packing of spare batteries, chargers, etc.

Wireless operation

Optional wireless remote control of the system via your smartphone using the app.
You can find more information on dicomPACS®DX-R remote control here


Sufficient space for all 25 x 30 cm and 35 x 43 cm X-ray detectors incl. protection box


X-ray case can also be operated with external power supply without batteries*

* suitable for emergency mode only

nach oben

Extended operating time through intelligent battery concept

A completely new concept for the power supply has been developed for the Leonardo DR mini III, allowing you to choose the batteries. Depending on intended use, you can X-ray for 3.5, 8.5 or unlimited hours.

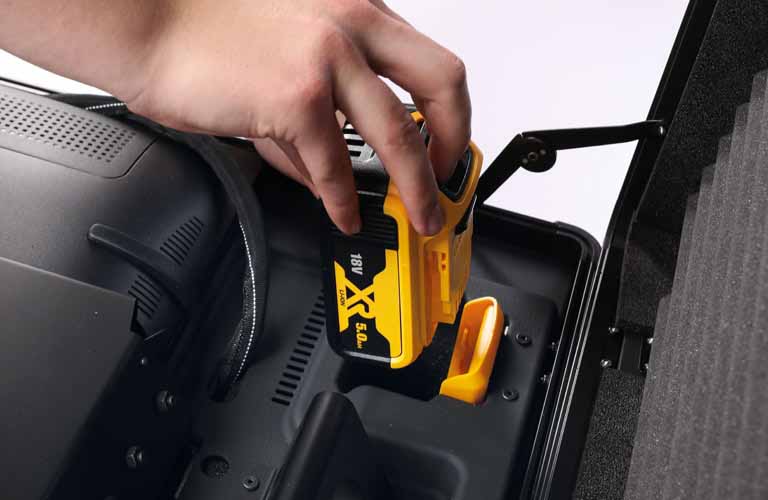

Batteries can be changed during operation.
Advantage: No shutdown of the system is necessary.

Batteries are not discharged when the case is switched off.
Advantage: Case is ready for immediate use, even if it has not been used for a long time.

Unit automatically switches to stand-by mode when the monitor is-closed.
Advantage: After changing the location, the computer does not have to be restarted.

The standard rechargeable batteries can be bought in almost any DIY store worldwide.

  • no expensive special parts with complex logistics
  • choice of large or small batteries is possible enabling user to save weight or extend operating time as required.
  • With low financial investement, several battery sets can be used and, depending on requirements, an unlimited runtime can be achieved


Small battery pack for the Leonardo DR mini III X-ray system

Battery set (small)
18 Volt/2 Ah for a operating time of approx. 3.5 hours and approx. 200 X-ray exposures (0.35 kg/battery)

Large battery pack for the Leonardo DR mini III X-ray system

Battery set (large)
18 Volt/5 Ah for a operating time of approx. 8.5 hours and approx. 500 X-ray exposures (0.62 kg/battery)

nach oben

Acquisition and diagnostic software for X-ray images

PACS Software for veterinary medicine

At the heart of each Leonardo system is the dicomPACS®DX-R acquisition and diagnostic software with the integrated X-ray positioning guide developed by OR Technology.

The software controls X-ray generators and X-ray units of various manufacturers, providing a smooth and structured workflow. A simple and user friendly GUI (graphical user interface), operated by touchscreen or mouse, completes the system.

The professional dicomPACS®DX-R image processing can be adapted to individual user needs and offers outstanding image quality in human and veterinary medicine. It has been specially developed to enable organ specific viewing quality optimisation, guaranteeing the highest quality of X-ray images.

[more information...]

nach oben

X-ray detectors for Leonardo DR mini III systems

X-ray detectors for digital radiography

Here you can find a list of the available X-ray detectors. Different types and sizes of X-ray detectors allow an individual configuration of the system.


nach oben
  • Product info X-ray case Leonardo DR mini III
    Robust X-ray case - the gold standard of the Leonardo series - combines X-ray detector technology with powerful diagnostic and acquisition software

  • Product overview veterinary medicine
    Digital X-ray imaging - guide for vet clinic and practice

  • Example of report module for X-ray services relating to equine prepurchase examinations
    The required X-ray images, including all modifications such as zoom, measurements and annotations, are automatically added to the respective diagnosis for documentation in the prepurchase report, the layout is automatically compiled

nach oben

Optional extensions

Amadeo P - portable X-ray units

Amadeo P high frequency units for portable X-ray in veterinary medicine
Its low weight, user-friendly operation and the integrated interface for using the X-ray unit with a digital system enable various fields of application in small animal practices and equine clinics.

dicomPACS vet Purchase investigation module

dicomPACS®vet report module for X-ray services relating to equine prepurchase examinations
This dicomPACS®vet report module enables the quick compilation of reports by automatically assembling X-ray images. It follows the “X-ray guideline” by the German organisations “Gesellschaft für Pferdemedizin e.V.” (non-profit organsation for equine medicine) and “Bundestierärztekammer e.V.” (Federal association of veterinarians).

Webviewer for digital X-ray images

dicomPACS®MobileView - The web-based viewer for mobile devices or PCs for vets
As a virtually independent browser, it allows the viewing of image material on mobile devices also outside a veterinary clinic or a practice. The vets staff can access all image material from the dicomPACS®vet system worldwide via a network connection.

ORCA - the cloud for medical images and documents

ORCA® - The DICOM cloud for veterinary images and documents®
ORCA® (OR Technology Cloud Archiving) is a software solution designed to make everyday work in veterinary practices and animal clinics easier, cheaper and more efficient. ORCA®Archive medical images and documents on its remote servers using highest security standards, and allows sharing these data with other veterinarians and authorised persons online.

dicomPACS ® vet - Intelligent image management for veterinarians

dicomPACS®vet - the sophisticated and high-tech image management solution
dicomPACS®vet is an easy to operate, well thought out instrument for daily diagnoses. The software includes the acquisition, processing, transfer and archiving of image material and can easily be integrated into all common administration systems.

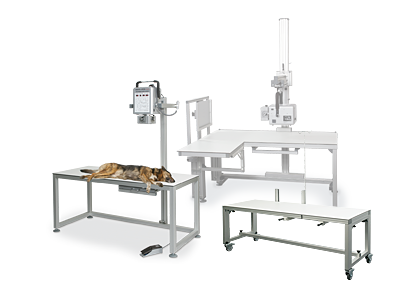

Veterinary X-ray tables for digital X-ray

X-ray tables for stationary digital X-ray imaging
Premium patient tables take into account the diversity of patients in veterinary practices and clinics. All offered X-ray tables of the newest generation allow for easy and comfortable work.

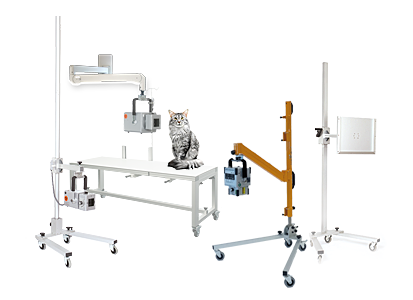

Tripods and holders for X-ray detectors and generators

Mobile stands and cassette holder for digital X-ray
The variety of patient sizes poses a major challenge for manufacturers of X-ray technology and accessories. Mobile stands and casette holder must be adapted to their patients. A range of trolley stands and cassette holders can be found here.



nach oben

Do you still have questions?

Is the Leonardo DR mini III the right portable X-ray system for you?
Let's find out together.
Contact us+49 381 36 600 500 Send us an
OR Technology - contact


nach oben

Technical specifications of the Leonardo DR-mini III

Compact lightweight X-ray case
  • Extremely durable case made of the latest high-tech composite material with shock-absorbing edge reinforcement, splash-proof (IPX4), lockable
  • Total weight: approx. 9.5 kg (includes complete X-ray case, monitor and electronics plus X-ray detector),
  • anti-glare 21.5" full HD touch screen monitor and standard PC keyboard
  • powerful PC with latest Windows version
  • Carrying strap for comfortable transport
  • LED status display of the entire system in four colours

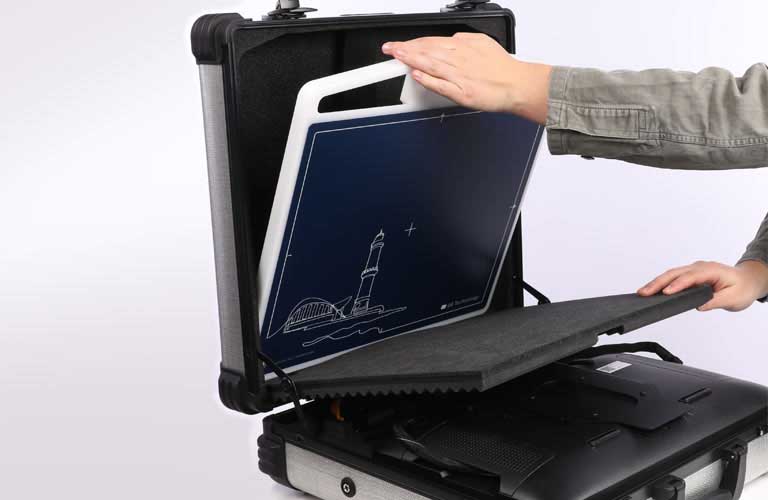

  • padded transport compartment for one detector, max. 14" x 17"
  • Dimensions: approx. 545 x 515 x 194 mm (W x D x H)
  • Connections: 1 x USB, 1 x LAN, 1 x WLAN, 1 x Bluetooth, 1 x DC socket
CsI X-ray detector flex
25 x 33 cm (13“ x 10“) wireless

Wireless X-ray!
World's first Csl X-ray detector with flexible substrate - nearly indestructible - specially developed for imaging horses

CsI X-ray detector
35 x 43 cm (14" x 17") wireless

Wireless X-ray!
Caesium iodide scintillator (CsI), best image quality in clinical use - even at low X-ray dose - fast-charging, long-life batteries, battery charger included

Leonardo DR mini III software package

with dicomPACS®DX-R, the professional console software with modern graphical user interface with basic software features and integrated X-ray assistant for correct setting technique for each examination, included:

  • dicomPACS®DX-R DICOM Send SCU
  • dicomPACS®DX-R DICOM Patient-CD
  • dicomPACS®DX-R Cognition Optimised Processing
Battery set (small or large)
  • Battery set (small) 18 Volt / 2 Ah for a operational time of approx. 3.5 hours and approx. 200 X-ray exposures (0.35 kg/battery)
  • Battery set (large) 18 Volt / 5 Ah for a operational time of approx. 8.5 hours and approx. 500 X-ray exposures (0.62 kg/battery)
nach oben

Optional components

Wireless remote control for the Leonardo DR mini III System

Wireless remote control
Possibility of wireless control of the digital X-ray system with the app „dicomPACS®DX-R remote control“ via smartphone or tablet incl. display of the worklist, preview of the captured image to check the shot etc. - directly from the app a shot can be repeated or a new one can be planned

Protection case for X-ray detectors

Protection case 1417
Dimensions 47,9 x 46,7 x 2,54 cm (B x W x T), weight approx. 1,35 kg

Accessories bag for batteries

Accessories bag
for transport and storage of spare batteries, chargers, cables, power supply etc.



nach oben
Subject to technical modifications
