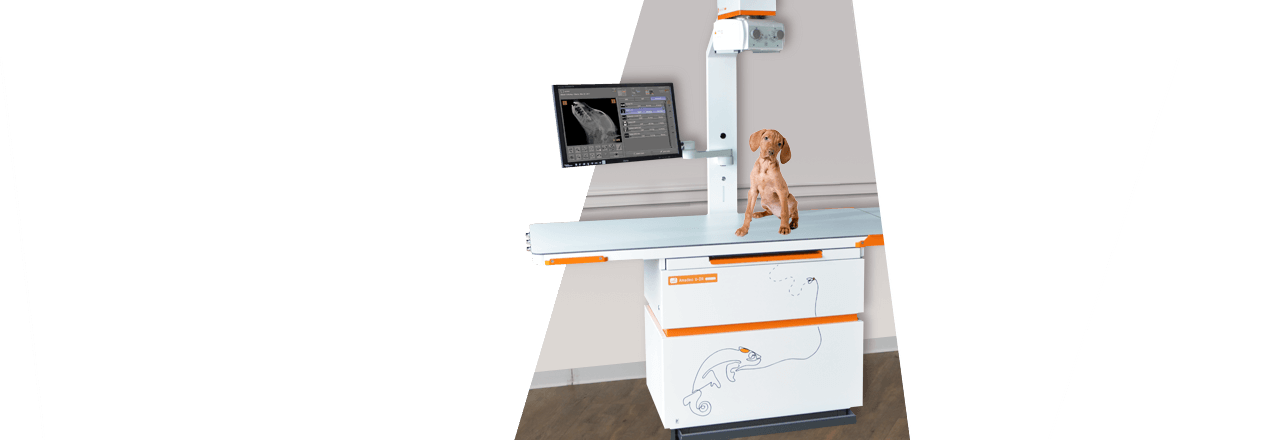

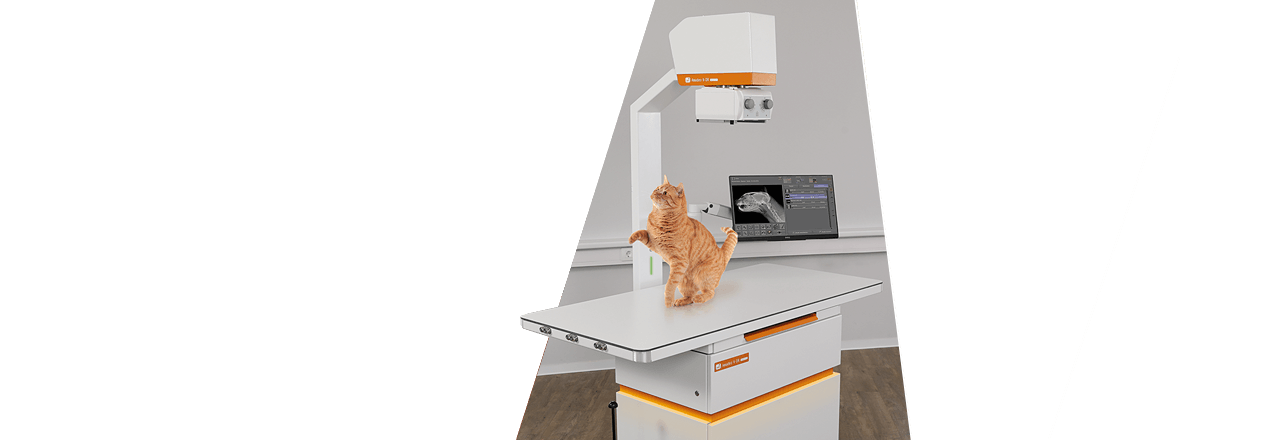

Space-saving full X-ray system for veterinary medicine with swivel monitor and standard socket operation – now ‚Made in Germany‘

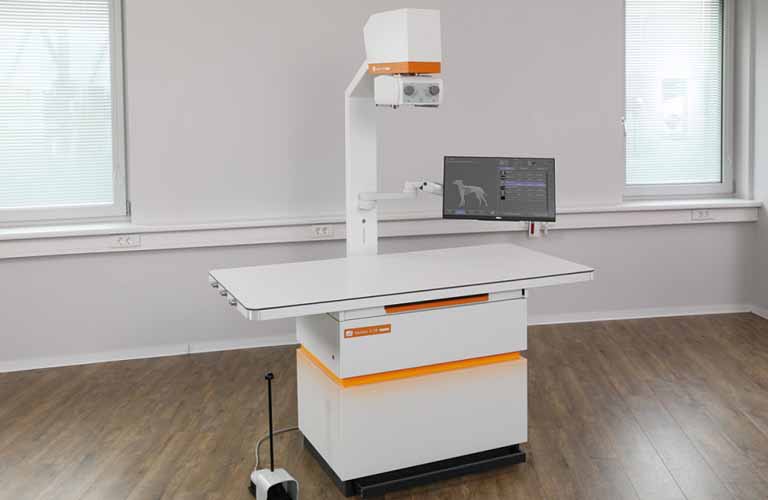

The Amadeo V mini II X-ray machine has been specially designed for the requirements in veterinary medicine and is particularly suitable for small veterinary practices. The completely flat 4-way floating table without upstands will convince you. This veterinary X-ray system is a completely in-house creation "Made in Germany" by OR Technology and the result of close cooperation with veterinarians and university institutions.

The PC as well as a drawer for storage aids are inserted directly into the X-ray table to save space. The 32 kW high-frequency generator with rotating light visor is also integrated in the X-ray table. The foot brake on the table can be used to stop the movement of the table top and to operate the light on the collimator. A standard wall socket is sufficient to power the system. No major conversion measures are required.

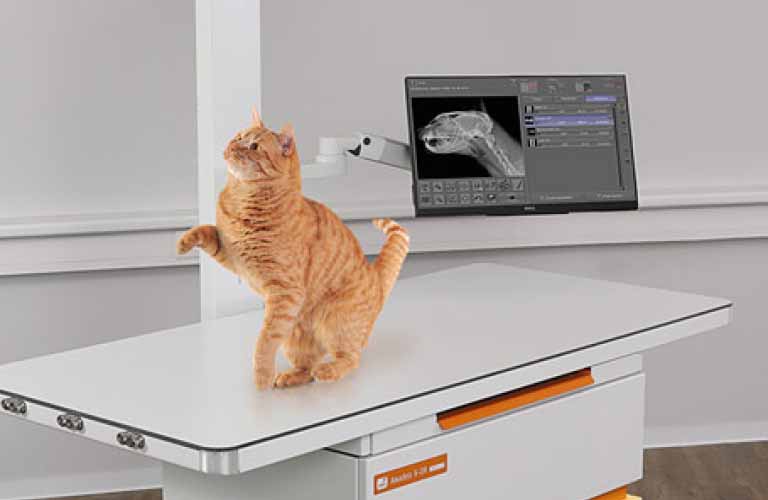

The 180° swivel and height-adjustable touchscreen monitor allows convenient operation of the X-ray software (acquisition and reporting) in a very confined space. The integration of your practice management system is a matter of course for us.

A 3-stage LED status display on the X-ray stand provides simple visualisation of the operating status. With the help of the 2-step foot switch, the X-ray shot can be prepared and triggered.

As a special highlight for the small animal practice, there is the possibility to have the Amadeo X-ray tables artistically designed. The well-known artist from Rostock Felix Fugenzahn was commissioned to create single-line drawings. Four animal motifs are optionally available.



nach oben

Video: Digital veterinary X-ray system for small animal medicine



nach oben

Three versions are available:

Amadeo V-DR mini II

with built-in CsI X-ray detector 17" x 14"
(active area 43.3 x 35.5 cm)

Amadeo V-DR mini II

with built-in CsI X-ray detector 17" x 17"
(active area 43.2 x 43.2 cm)

Amadeo V-AX mini II

for use with film/CR cassettes or existing DR system without generator control

nach oben

Features and Benefits of the Amadeo V mini II System


The Amadeo V-DR mini II can be used with a standard socket. No major conversion measures are necessary.

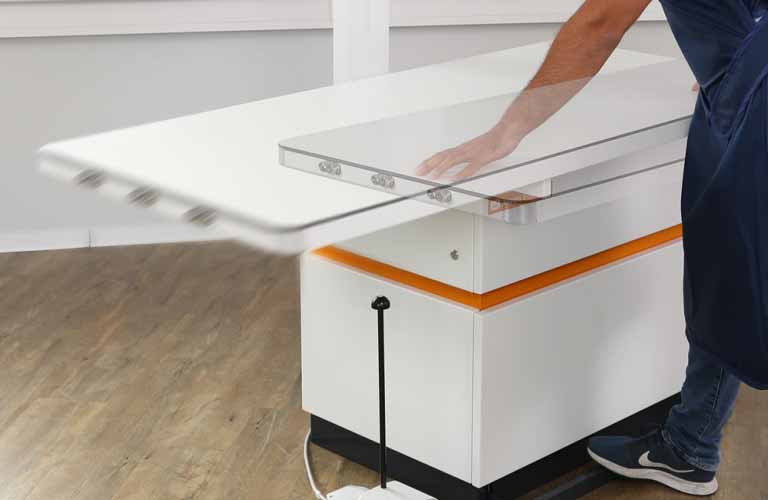

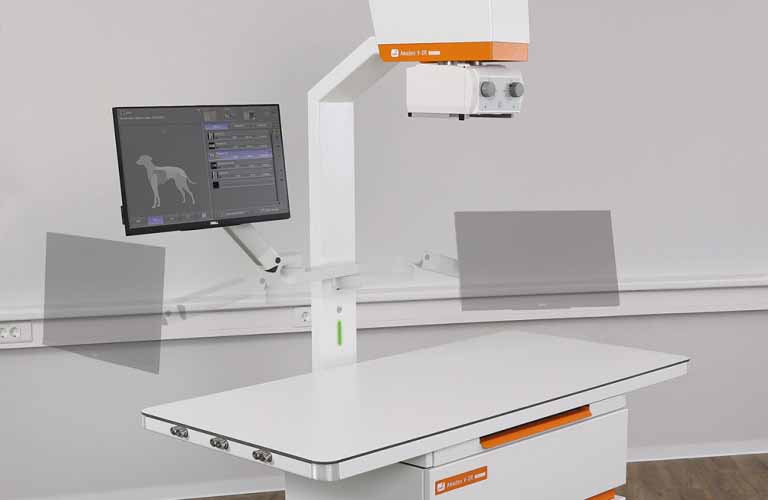

The completely level patient table without upstands is equipped with a floating tabletop and silent brakes. It allows for generous movement and can be operated from the front panel. The height-adjustable monitor arm can be rotated by 180°, enabling a comfortable operation of the acquisition software.


Thanks to the integration into your existing patient management system the patient data is available at the push of a button.

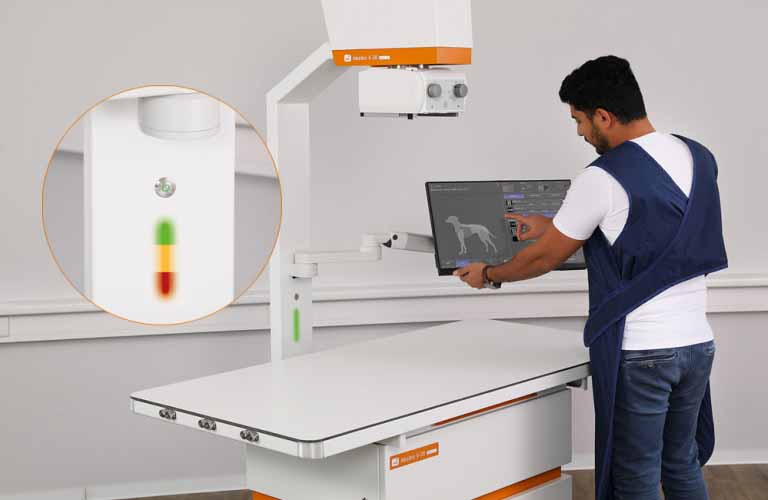

Software status display via large LED in 3 colours


The PC is integrated into the X-ray table. Therefore no additional cables or brackets are necessary. Furthermore, the X-ray system has a sophisticated drawer system for positioning aids etc.

Excellent image quality

The high-quality X-ray detector based on a caesium iodide (CsI) scintillator offers top image quality even at low X-ray doses. Especially in direct comparison with the standard, widely used GadOx (Gd²O²S:Tb) detectors, this edge in quality is clearly visible.

User friendly

The professional dicomPACS®DX-R X-ray software for acquisition and diagnostic offers an intuitive and modern graphic user interface. The examinations can be conducted comfortably at the monitor while all necessary adjustments of the X-ray parameters are automatically communicated to the generator.


Shortly after taking the shot (6 - 8 seconds), the X-ray image is available for viewing and diagnostic evaluation. This ensures a quick workflow.

Cleverly designed

A positioning guide integrated in the X-ray software provides information on the correct positioning technique for any examination of cats and dogs.


Special measuring functions such as MMP (Modified Maquet Procedure), TTA, TPLO and heart measuring are provided without extra cost.


The X-ray system boasts a compact and very space-saving build. The 230V high frequency generator is integrated directly into the X-ray table, allowing an installation in confined spaces. Additional cable ducts or space for the generator are unnecessary.

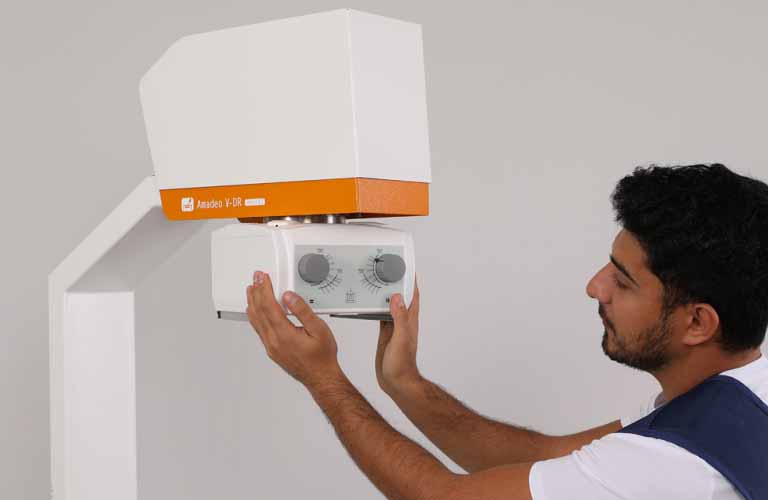

The rotating light visor is equipped with LED illumination/timer and can also be operated via foot switch or foot brake.


Clamps for attaching restraints: These ties can be used to hold the animal in place so that the staff can leave the controlled area during the shot.


AI-supported HD measurement for dogs (determination of the Norberg angle)

nach oben

Any further questions?

Is the Amadeo V mini II the right complete digital X-ray system for your veterinary practice or small animal clinic?
Let's find out together.
Icon - call us+49 381 36 600 500 Icon - write us a
OR Technology - Call our Sales-Team
nach oben

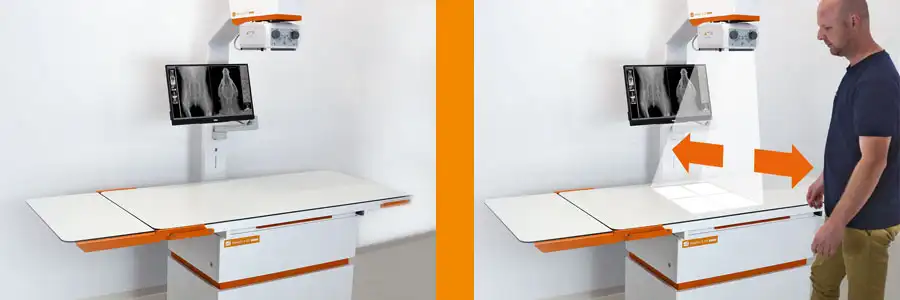

Automatic collimator light

Collimator light for Amadeo V mini x ray system

You asked for it and we made it happen: With this new feature both your hands are free for positioning the animal to be x-rayed and you do not have to search for the light switch first. The collimator light remains on as long as you are standing in front of the X-ray system.

Your advantages:

  • Collimator light is automatically activated when a person approaches within 20 cm of the X-ray system.
  • Light stays on while positioning the animal
  • Light turns off automatically 10 seconds after leaving the table --> time customisable





nach oben

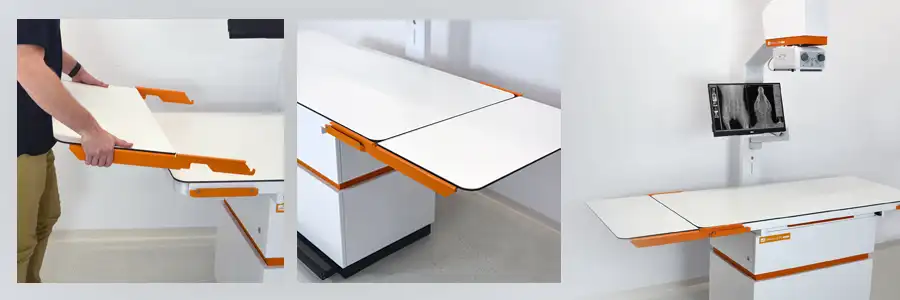

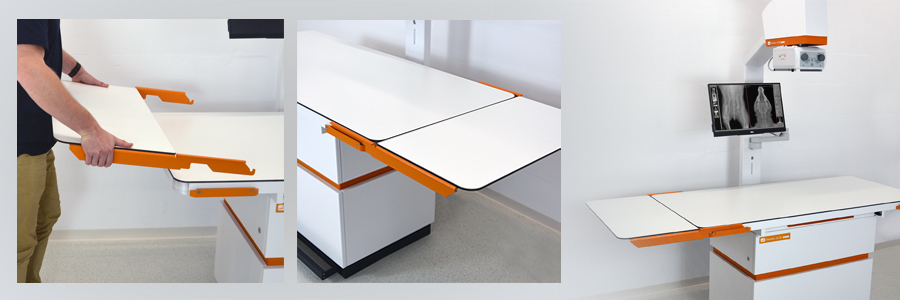

Table extension by 40 cm (optional)

Table extension for the digital veterinary X-ray system Amadeo V mini II

  • quick and easy installation due to convenient "click system".
  • only a few steps required and can be installed without tools, e.g. screwdriver
  • can be attached left or right
  • loadable up to 15 kg
  • without upstands
  • total length of table top incl. extension 199.2 cm



nach oben

Acquisition and diagnostic software for X-ray images

Digital X-ray: Acquisition and diagnostic software for X-ray images

At the heart of each Amadeo system is the dicomPACS®DX-R acquisition and diagnostic software with the integrated X-ray positioning guide developed by OR Technology.

The software controls X-ray generators and X-ray units of various manufacturers, providing a smooth and structured workflow. A simple and user-friendly GUI (graphical user interface), operated by touchscreen or mouse, completes the system.

The professional dicomPACS®DX-R image processing can be adapted to individual user needs and offers outstanding image quality in human and veterinary medicine. It has been specially developed to enable organ-specific quality optimisation, guaranteeing the highest quality of X-ray images.

[more information...]

nach oben

X-ray detectors for Amadeo V mini II systems

digital x-ray detectors

Here you can find a list of the available X-ray detectors. Different types and sizes of X-ray detectors allow an individual configuration of the system.

[to the overview...]

nach oben
  • Product information Amadeo V mini II
    Space-saving full X-ray system with rotating monitor arm for use with standard wall sockets

  • Product overview veterinary medicine
    Digital X-ray imaging - guide for vet clinic and practice

nach oben

Optional add-ons

dicomPACS®MobileView – the web-based viewer for mobile devices

dicomPACS®MobileView - the web-based viewer for mobile devices
The web-based viewer contains all the basic functions for viewing images. You can view images virtually with any browser on mobile devices. dicomPACS®MobileView offers vets a previously unknown degree of mobile freedom in the workplace inside and outside of hospitals or practices, with the radiological image material available from anywhere.

Cloud ORCA – storage of medical data (images and documents) as well as sharing via the internet

ORCA storage of medical data (images and documents) as well as sharing via the internet
ORCA (OR Technology Cloud Archiving) is a cloud-based platform specially designed for storing, viewing and sharing medical images and documents. ORCA offers two exciting applications: ORCA Archive and ORCA Share.

dicomPACS®vet – the sophisticated and high-tech image management solution

dicomPACS®vet – the sophisticated and high-tech image management solution
dicomPACS®vet  is an easy to operate, well thought out instrument for daily diagnoses. The software includes the acquisition, processing, transfer and archiving of image material and can easily be integrated into all common administration systems.

nach oben
  • Direct digital X-ray with Amadeo V mini II in the Kammermaier veterinary practice in Laberweinting, Germany
    A few years ago, I became aware of the image processing software dicomPACS®vet and thus of OR Technology through a WDT catalogue," veterinary Kammermaier told us.

nach oben

Technical Data for Amadeo V mini II (standard configuration)

HF generator

32 kW HF generator for 230 V~ line voltage,
50/60 Hz single phase (standard socket)
• kV range from 40 - 125 kV
• mA Range 80 - 400 mA
• Switching time from 0.004 – 1.5 s

X-ray stand with table

• X-ray stand with fixed FFA = 105 cm
• Professional monitor-arm mount for convenient operation
   (180° swivel range, height adjustable)
• Rotatable collimator with LED light and timer, control via brake
• 4-way floating table system, generous travels, very quiet brakes
• Large, completely flat table surface without
   upstand (1591 x 742 mm) with scratch-resistant,
   dose-optimised table top
• Table height 839 mm
• Built-in PC (depending on version)
• Integrated drawer for positioning aids etc.
• 3-stage LED status display    Visualisation of operating status
• Stable and durable design of all components
• 2-step foot switch (prepare / X-ray shot)
•  Weight approx. 245 kg

X-ray tube 125 kVp

Rotating anode X-ray tubes with double focus, focal spot 0.6 / 1.3 mm

Direct radiography flat panel detector 35 cm x 43 cm

Excellent image quality even at low radiation dose - different sizes and resolutions available

Direct radiography flat panel detector 43 cm x 43 cm

Excellent image quality even at low radiation dose - different sizes and resolutions available

Operation by acquisition station

Mini PC with 24” monitor including dicomPACS®DX-R acquisition and diagnostic software with modern graphical user interface

•  Control of the flat panel monitor
•  Control of the X-ray generator
•  Customised, organ-specific image processing CoP (Cognition Optimised Processing)
•  Mulitmedia X-ray positioning guide
•  DICOM Send SCU for image transfer to a PACS system
•  SCU/SCP instructions for connecting to the practice's data processing system
•  Patient CD

Fixing clamps

Clamps for holding ties to hold the animal in place so that staff can leave the controlled area during the shot

nach oben
Subject to technical modifications
