Portable Amadeo P high frequency X-ray units for targeted operations against terrorism, for civil defense and forensic science

Nowadays, high-quality X-ray images are no longer a problem for portable monoblock X-ray units. Modern high frequency technology means high performance using a standard power supply (220V/ 110V) in miniature format. The low weight, user-friendly operation and the integrated interface for using the X-ray unit with a digital X-ray detector system guarantee a wide range of applications for border surveillance, forensics, counter-eavesdropping and private security.

Portable battery-operated monoblock X-ray machine with high frequency technology

GIERTH QP 400 with dual laser pointer and rotating collimator

X-ray unit (11.2 kg including battery), equipped with a high powered rechargeable lithium-ion polymer battery, no AC power supply necessary, battery life approx. 300 exposures


Battery-operated portable monoblock X-ray machine with high frequency technology

Amadeo P-100/35HB - battery-operated portable monoblock X-ray unit with high frequency technology

Compact, lightweight, battery-operated X-ray unit Amadeo P-100/35HB (approx. 14 kg including battery), high powered rechargeable lithium-ion polymer battery, 3000 mAs power output without recharging, no external power sources required to produce X-ray images, state-of-the-art microprocessor controls, PROM memory, battery status indicator,  mAs energy level display and dual laser collimator



Amadeo P-110/100H – portable monoblock X-ray unit with high frequency technology

Amadeo P-110/100H – portable monoblock X-ray unit with high frequency technology

Features include modern LED light, high performance capacitor for a stable and reliable power supply, non-stop operation during brief power outage or relocation, weight approx. 19.6 kg,  max. power requirement 5.0 kW,  0.1-100 mAs






Golden Engineering XR200 battery-operated with pulse technology

Golden Engineering XR200 battery-operated with pulse technology

150 kV pulsed X-ray device ideal for radiological testing, the unit‘s high powered battery and low overall weight guarantee easy handling

• includes hard shell carrying case and remote cable

• peak output 150 kV, 2.6 mR, 6.000 pulses per battery charge

• dimensions 14.81 x 10.82 x 27.15 cm, weight 10.7 lb [4.8 kg] including battery

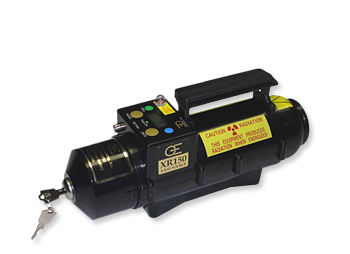

Golden Engineering XR150 X ray unit

Golden Engineering XR150 battery-operated

Portable battery-operated X-ray unit with pulse technology ideal for NDT and the security sector ]

• includes hard shell carrying case and remote cable

• peak output 150 kV, 0.75 - 1.3 mR per pulse [2.0 - 2.8 mR per pulse*]

• Dimensions with battery 26.87 x 9.91 x 10.95 cm [26.65 x 8.99 x 11.96 cm*]

• 2.22 kg (4.9 lbs) [2.58 kg (5.7 lbs.)*]

* Values for version XR150-20

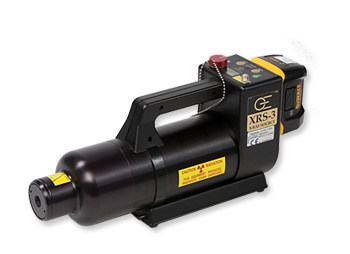

Golden Engineering X ray unit XRS 3

Golden Engineering XRS-3 battery-operated

Portable battery-operated X-ray unit with pulse technology ideal for NDT and the security sector

• includes hard shell carrying case and remote cable

• peak output 270 kV, 2.6 mR/pulse,

• pulse rate 15 pulse per second, 5500 pulses per battery charge

• dimensions 14.81 x 10.87 x 36.07 cm, weight 5.3 kg (including battery)




Golden Engineering XRS 4

Golden Engineering XRS-4 battery-operated

Portable battery-operated X-ray unit with pulse technology ideal for NDT and the security sector

• includes hard shell carrying case and remote cable

• max. Output 370 kV, 4.0 mR - 7.0 mR per pulse, 3.0 x 3.0 mm focal

• Dimensions 7.05" (17.91 cm)  x 4.80" (12.19 cm) x 19 .26" (48.92 cm)

•  Weight 18.3 lb / 8.3 kg (including battery)




GIERTH TR 90/20 battery-operated high frequency X-ray unit

GIERTH TR 90/20 battery-operated high frequency X-ray unit

A high powered and wireless unit with a new design: 6.8 kg, max. 20mA at 100kHz with full-wave inverter system, ideal for extremity X-rays



GIERTH QP 400 with dual laser pointer and rotating collimator



GIERTH QP 400 with dual laser pointer and rotating collimator


Monoblock X-ray unit with short exposure times, reduced radiation exposure, aluminium casing, laser diodes for exact positioning and much more










Add-ons to complete digital X-ray systems

Leonardo mini - Security IOD/EOD: Portables Röntgensystem im handlichen Koffer

Security IOD/EOD: Wireless radiography with the incredibly light and compact X-ray suitcase system
The portable X-ray system in the service of anti-terrorism measures, forensic science investigations  and civil defence activities: The combination of a portable Amadeo P-AX generator and the Leonardo suitcase solution constitutes a perfect symbiosis for mobile X-ray especially outdoors. The compact and versatile Leonardo DR mini II, combines X-ray detector technology with the high-performance acquisition and control software ORsecure for radiographic inspections. Weighing only 8.9 kg, the system is one of the lightest suitcase X-ray solutions worldwide.

Leonardo nano - Security IOD/EOD: Superlight, portable X-ray system in the backpack




Security IOD/EOD: Superlight, portable X-ray system in the backpack

In combination with a portable Amadeo P-AX generator you have a superb solution for mobile X-ray imaging. The Leonardo DR nano consists of two components only, a wireless X-ray detector and a tablet PC/notebook. Weighing only approx. 8 kg (complete package, bag incl. tablet PC, accessories and flat panel detektor), the system is one of the lightest portable X-ray solutions worldwide.



Subject to technical modifications
