Portable Amadeo P high frequency X-ray units for targeted operations against terrorism, for civil defense and forensic science

Nowadays, high-quality X-ray images are no longer a problem for portable monoblock X-ray units. Modern high frequency technology means high performance using a standard power supply (220V/ 110V) in miniature format. The low weight, user-friendly operation and the integrated interface for using the X-ray unit with a digital X-ray detector system guarantee a wide range of applications for border surveillance, forensics, counter-eavesdropping and private security.

Portable battery-operated monoblock X-ray machine with high frequency technology

GIERTH QP 400 with dual laser pointer and rotating collimator

X-ray unit (11.2 kg including battery), equipped with a high powered rechargeable lithium-ion polymer battery, no AC power supply necessary, battery life approx. 300 exposures


Battery-operated portable monoblock X-ray machine with high frequency technology

Amadeo P-100/35HB - battery-operated portable monoblock X-ray unit with high frequency technology

Compact, lightweight, battery-operated X-ray unit Amadeo P-100/35HB (approx. 14 kg including battery), high powered rechargeable lithium-ion polymer battery, 3000 mAs power output without recharging, no external power sources required to produce X-ray images, state-of-the-art microprocessor controls, PROM memory, battery status indicator,  mAs energy level display and dual laser collimator



Amadeo P-110/100H – portable monoblock X-ray unit with high frequency technology

Amadeo P-110/100H – portable monoblock X-ray unit with high frequency technology

Features include modern LED light, high performance capacitor for a stable and reliable power supply, non-stop operation during brief power outage or relocation, weight approx. 19.6 kg,  max. power requirement 5.0 kW,  0.1-100 mAs






Golden Engineering XR200 battery powered with pulse technology


Golden Engineering XR200 battery powered with pulse technology

150 kV X-ray unit for radiological testing of various materials, combination of battery power and minimal weight guarantee excellent handling for the user

• Including hard shell case and remote release cable

• Max. Output power 150 kV, 2.6 mR - 4.0 mR per pulse, focus 3.0 x 3.0 mm

• Dimensions 318 x 115 x 190 mm, weight 5.5 Kg




Golden Engineering XR150 battery powered

Golden Engineering XR150 battery powered

Portable battery-powered X-ray unit with pulse technology for use in NDT and security applications

• Including hard shell case and remote release cable

• Max. Output power 150 kV, 1.0 mR per pulse, focus 3.0 x 3.0 mm

• Dimensions 273 x 104 x 80 mm, weight 2.1 kg



Golden Engineering X ray unit XRS 3

Golden Engineering XRS-3 battery powered

Portable battery-powered X-ray unit with pulse technology for use in NDT and security applications

• Including hard shell case and remote release cable

• Max. Output power 270 kV, 2.6 mR - 4.0 mR per pulse, focus 3.0 x 3.0 mm

• Dimensions 356 x 115 x 190 mm, weight 5.4 kg

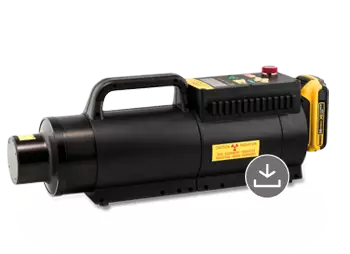

Golden Engineering XRS-4 battery-powered


Golden Engineering XRS-4 battery-powered

Portable battery-powered X-ray unit with pulse technology for use in NDT and security applications

• Including hard shell case and remote release cable

• Max. Output power 370 kV, 4.0 mR - 7.0 mR per pulse, focus 3.0 x 3.0 mm

• Dimensions 445 x 135 x 216 mm, weight 9.5 kg


GIERTH TR 90/20 battery-operated high frequency X-ray unit

GIERTH TR 90/20 battery-operated high frequency X-ray unit

A high powered and wireless unit with a new design: 6.8 kg, max. 20mA at 100kHz with full-wave inverter system, ideal for extremity X-rays

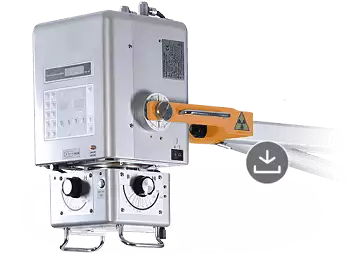

GIERTH QP 400 with dual laser pointer and rotating collimator



GIERTH QP 400 with dual laser pointer and rotating collimator


Monoblock X-ray unit with short exposure times, reduced radiation exposure, aluminium casing, laser diodes for exact positioning and much more










Add-ons to complete digital X-ray systems

Leonardo mini - Security IOD/EOD: Portables Röntgensystem im handlichen Koffer

Security IOD/EOD: Wireless radiography with the incredibly light and compact X-ray suitcase system
The portable X-ray system in the service of anti-terrorism measures, forensic science investigations  and civil defence activities: The combination of a portable Amadeo P-AX generator and the Leonardo suitcase solution constitutes a perfect symbiosis for mobile X-ray especially outdoors. The compact and versatile Leonardo DR mini II, combines X-ray detector technology with the high-performance acquisition and control software ORsecure for radiographic inspections. Weighing only 8.9 kg, the system is one of the lightest suitcase X-ray solutions worldwide.

Leonardo nano - Security IOD/EOD: Superlight, portable X-ray system in the backpack




Security IOD/EOD: Superlight, portable X-ray system in the backpack

In combination with a portable Amadeo P-AX generator you have a superb solution for mobile X-ray imaging. The Leonardo DR nano consists of two components only, a wireless X-ray detector and a tablet PC/notebook. Weighing only approx. 8 kg (complete package, bag incl. tablet PC, accessories and flat panel detektor), the system is one of the lightest portable X-ray solutions worldwide.
