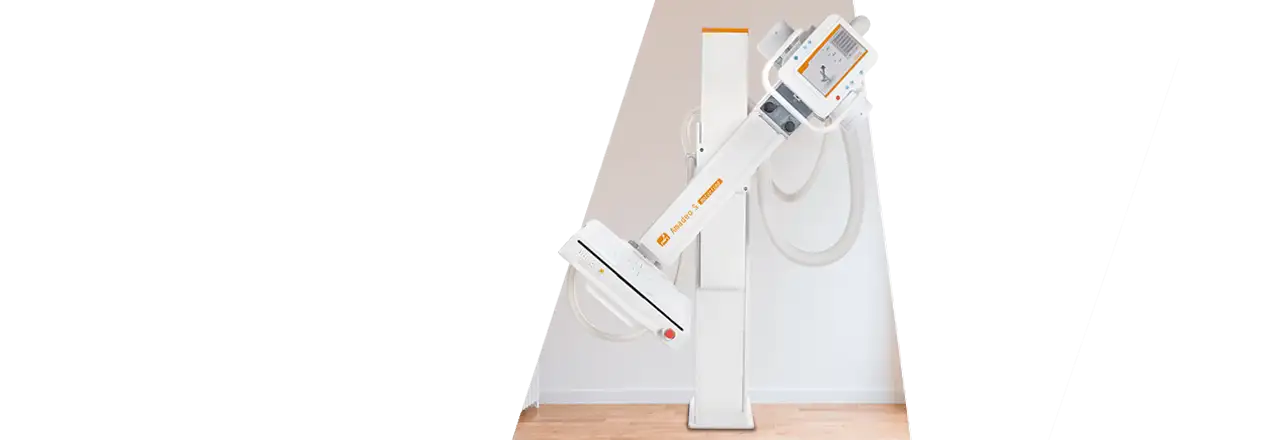

Motorised digital U-arm system for use in field hospitals

The space-saving U-arm X-ray system is ideally suited for use in quasi-stationary field hospitals (containers) or military hospitals, medical military bases or medical services. With the Amadeo S motorised, you can create all images required for diagnostic projection radiography. Both its compact design and the minimum ceiling height of only 2.40 m make the system perfectly suited for small rooms. It includes all necessary components and functions for digital X-ray without cassettes: motorised U-arm system, generator, X-ray detector, PC and the dicomPACS®DX-R acquisition and diagnostic software.

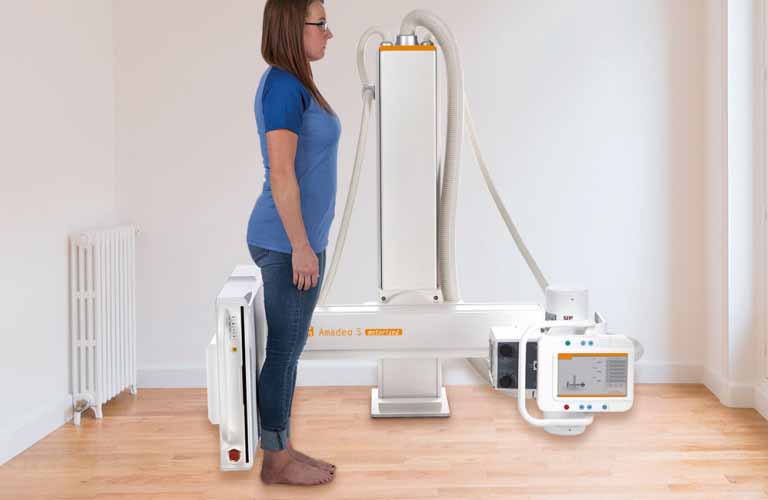

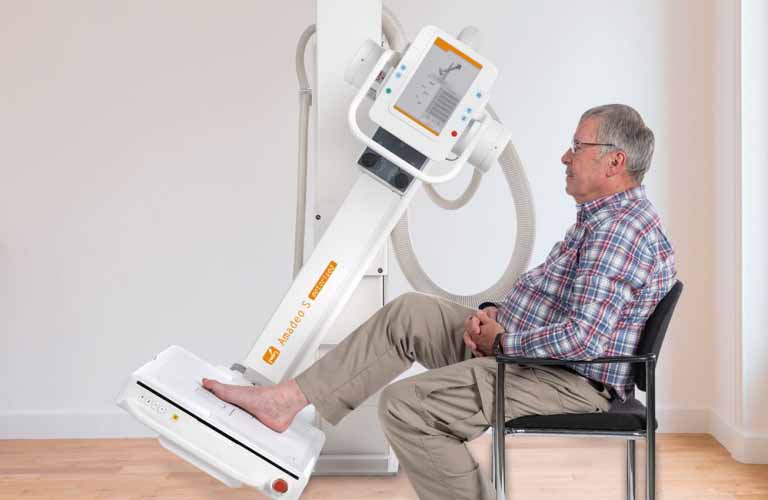

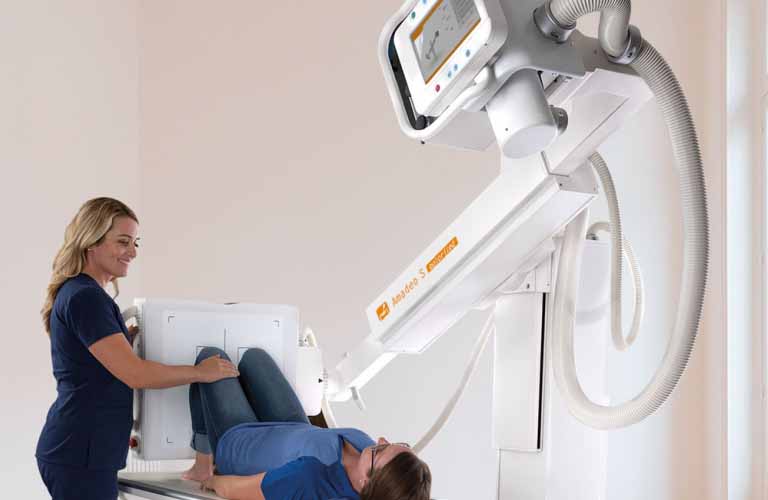

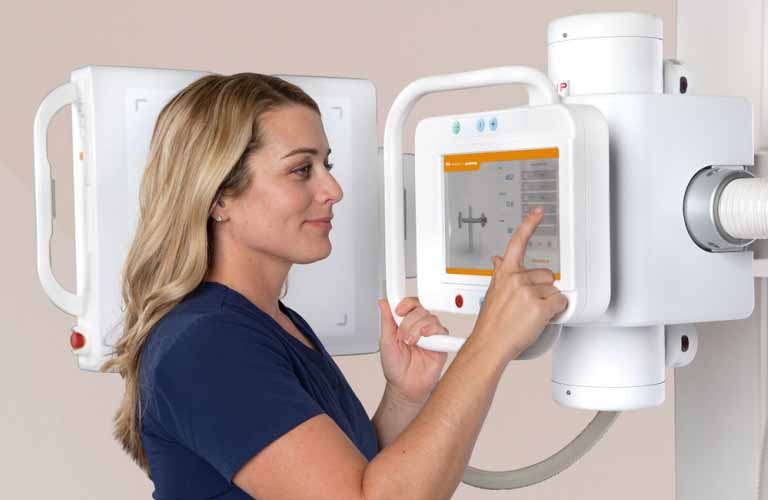

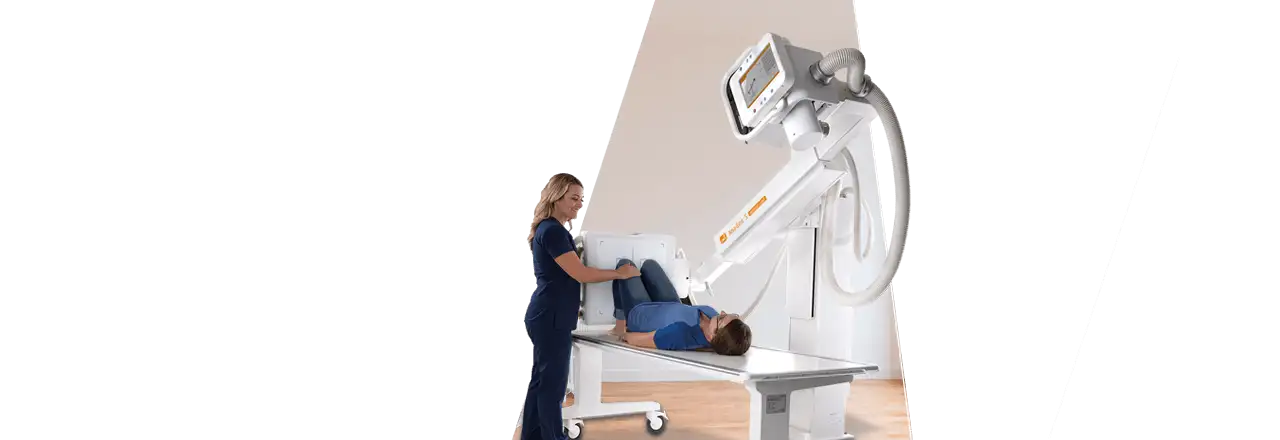

The very flexible and partially motorised positioning of the stand allows a wide range of images to be acquired. These can be taken on sitting, standing or lying patients (table optional). All important settings and operating operations are performed via an integrated 10" touchscreen display console.

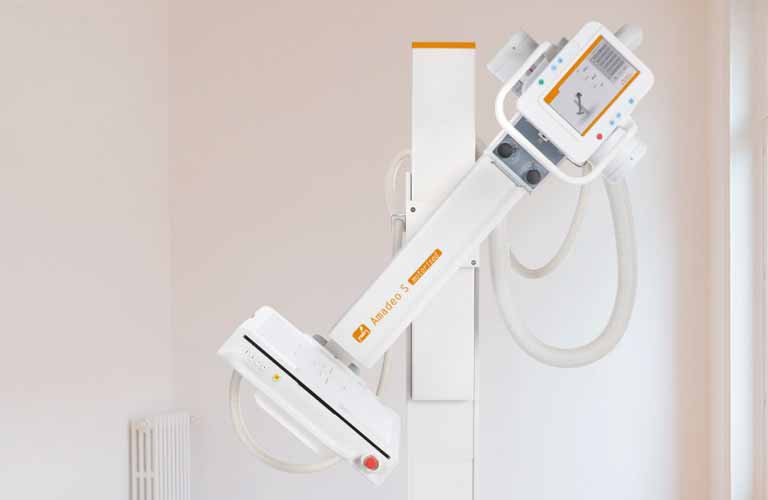

Both bucky tray and tube can be rotated and thus allow very variable X-ray settings. All necessary device positions can be pre-defined on the 60 available program slots to ensure quick positioning on the patient.

The high-resolution, digital CsI X-ray detector, the removable grid and an active grid recognition system ensure best image quality for all images. Intelligent collision sensors ensure patient protection by interrupting the movement in case of possible patient contact or contact with objects in the X-ray room. Features such as stitching to create whole leg and whole spine images, child filters etc. complete the advantages of this system.

The Amadeo S motorised is controlled by our powerful X-ray acquisition software dicomPACS®DX-R. The software enables a very simple and intuitive operation and the automatic setting of all necessary parameters.





nach oben

Motorised digital U-arm system for all applications in diagnostic radiography





nach oben

Two versions of the Amadeo S motorised U-arm X-ray system are available:

Amadeo S-DR motorised:

With a built-in X-ray detector  (43 cm x 43 cm)

Amadeo S-DR motorised:

with a wireless X-ray detector (35 cm x 43 cm)

nach oben

Features and Benefits of Amadeo S motorised Systems:

Optimal

designed especially for small rooms (min. W/H/D 2.30 x 2.40 x 1.70 m) - guaranteed through compact design and collision sensors for room height and detector position for recordings on standing, sitting and lying patients

Convenient

easy manual positioning in all directions, including detector tilt for oblique projections - allows comfortable working

Simple

60 preset positions for stand height, orientation and SID for each examination type

Comfortable

through automatic tripod positioning, motorised adjustment of the shooting specific film focus distance and customised anatomical programming (APR)

Efficient

Quick and easy positioning of the tripod --> detector +/-40° rotatable and tube +/-90°, partly motorised

Safe

integrated safety functions with emergency stop buttons and collision sensors

Sophisticated

control of the high-frequency generator and all system components via integrated 10" touch screen display console with multilingual support

Excellent

high-quality X-ray detector based on a caesium iodide (CsI) scintillator – top image quality even at low X-ray doses

User-friendly

self-explanatory OR Technology acquisition software dicomPACS®DX-R including free special measurement functions

Fast

shortly after taking the shot (6 - 8 seconds), the X-ray image is already available for viewing and diagnostic evaluation

Cleverly designed

integrated X-ray positioning guide helps choose the perfect positioning

Accessibility

integrated diagnostic software offers a worldwide, fast and cost-effective exchange of information (via cloud or email)

Stitching

The stitching module (optional) creates a single image from separate digital X-ray images. The images are loaded, correctly alignedand merged to one image.

nach oben

Acquisition and diagnostic software for X-ray images

Acquisition and diagnostic software for X-ray images

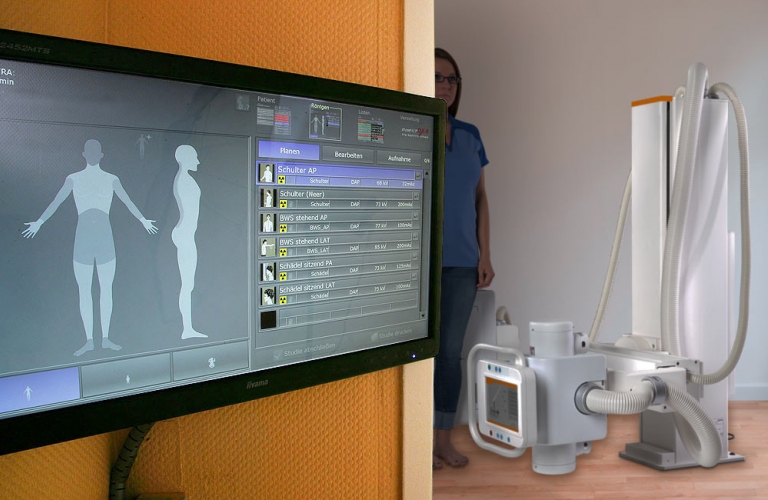

At the heart of each Amadeo system is the dicomPACS®DX-R acquisition and diagnostic software with the integrated X-ray positioning guide developed by OR Technology.

The software controls X-ray generators and X-ray units of various manufacturers, providing a smooth and structured workflow. A simple and user friendly GUI (graphical user interface), operated by touchscreen or mouse, completes the system.

The professional dicomPACS®DX-R image processing can be adapted to individual user needs and offers outstanding image quality in human and veterinary medicine. It has been specially developed to enable organ specific viewing quality optimisation, guaranteeing the highest quality of X-ray images.

[more information...]



nach oben

X-ray detectors for Amadeo S systems

list of the available X-ray detectors

Here you can find a list of the available X-ray detectors. Different types and sizes of X-ray detectors allow an individual configuration of the system.

[to the overview...]

nach oben

Any further questions?

Is the Amadeo S the right digital X-ray unit for your mission or Ambulance service?
Let's find out together.
Icon - call us+49 381 36 600 500 Icon - write us a mailinfo@or-technology.com
Contact
OR Technology - Call our Sales-Team
nach oben
  • Product information U-arm X-ray system Amadeo S motorised
    Digital X-ray system for wireless and tethered X-ray detectors - with collision sensors for low ceiling heights from 2.40 m

  • Product overview Digital X-ray systems for mobile and stationary medical facilities
    Mobile digital all-in-one system for your medical faciIity or field hospital · Portable digital systems as an upgrade kit for already existing mobile or stationary X-ray equipment · Stationary digital X-ray complete system

  • Product information protection box for 14x17 inch detector
    This protection box protects 14x17 inch wireless X-ray detectors from external shocks and strong vibrations. The housing contains several protective layers to absorb shocks and increase the load capacity.

  • Product information dicomPACS® Upper Cervical (NUCCA) and Standard Chiropractic Tools dicomPACS®
    Diagnostic tools for optimal chiropractic diagnosis

nach oben

Optional add-ons

PACS MobileView

dicomPACS®MobileView – the web-based viewer for mobile devices
The web-based viewer contains all the basic functions for viewing images. You can view images virtually with any browser on mobile devices. dicomPACS®MobileView offers doctors and nursing staff a previously unknown degree of mobile freedom in the workplace inside and outside of hospitals or practices, with the radiological image material available from anywhere.

PACS Software

dicomPACS®the sophisticated and high-tech image management solution
With dicomPACS® all images generated by digital X-ray, CT, MRI and ultrasound devices, as well as diverse documents (e.g. doctor's letters, medical findings, medical history, faxes) are stored in a digital patient folder and readily accessible.





nach oben

Technical Data for Amadeo S motorised (standard configuration)

HF generator

Output power 50 kW (40 - 150 kVp, 10 - 630 mA, 400/480 V (+/- 10 %))

U-arm stand
  • Compact design for low ceiling heights (min. 2.40 m)
  • Operation on the tube: 10" touch screen LCD with automatic image rotation
  • Integrated safety functions with emergency stop buttons and collision sensors
  • X-ray radiation is centered on the buckylade and can be rotated +/- 90° if required
  • The focus-film distance ranges from 100 bis 180 cm einstellbar
  • The central beam over the ground ranges from 400 mm max. 1700 mm
  • Rotation of the swivel arm from + 120° bis - 30°
  • Manually operated collimator with LED full field light localiser
  • Bucky cabinet with 3-field ionisation chamber (AEC)
  • Removable grid L (85 L / cm, r 10:1, FFD = 110 - 180 cm)
Manual collimator

Included

Bucky with removeable grid

With active pattern recognition

Grid for FFD 110 to 180 cm

Included

Flat panel detector 17"x17" CsI

Only for Amadeo S-DR
Flat panel detector with excellent image quality and prompt image availability

Flat panel detector 14"x17" CsI

Only for Amadeo S-DR with wireless detctor
Wireless X-ray imaging! Fits into existing X-ray systems without additional modification (in place of the X-ray film cassette); fast-charging and long-lasting batteries

Operator control via dicomPACS®DX-R acquisition station

Mini PC with 24" touch screen monitor, 1920 x 1080 Pixel inkl. the professional console software dicomPACS®DX-R with modern graphic user interface with generator control, integrated X-ray positioning guide and basic software modules:

  • dicomPACS®DX-R DICOM Send SCU
  • dicomPACS®DX-R DICOM Patient CD
  • dicomPACS®DX-R Cognition Optimised Processing
nach oben

Optional Components for Amadeo S motorised Systems

DAP meter (dose-area product meter)

Available

LWS / BWS filter

Available

Generator upgrade

From 50 kW to 65 kW

From 50 kW to 80 kW

Patient tables

Various models: partly motorised height adjustment,floating table top, programmable working height etc.

nach oben
Subject to technical modifications
