Software for acquisition and evaluation of X-ray imaging with matrix detectors (DDA) and CR systems

ORsecure is a professional acquisition and evaluation software for radiographic testing with X-radiation using digital detectors. The X-ray software enables non-destructive testing with matrix detectors (DDA) and imaging plate readers (CR) of virtually any manufacturer.

The software also controls the operation of X-ray generators and X-ray units of different suppliers, thus enabling an optimal, efficient workflow. The user-friendly and straightforward user interface is operated via touchscreen or mouse. The professional high-performance image processing is adaptable to individual users’ and material-specific requirements and ensures outstanding image quality.

Many helpful integrated features and the intuitive handling make the workflow and documentation an easy routine. The integrated ORsecure viewer allows evaluation the X-ray images in the acquisition software and supports the creation standardised inspection reports. Optionally, ORsecure can be upgraded to an archive solution based on DICOS.

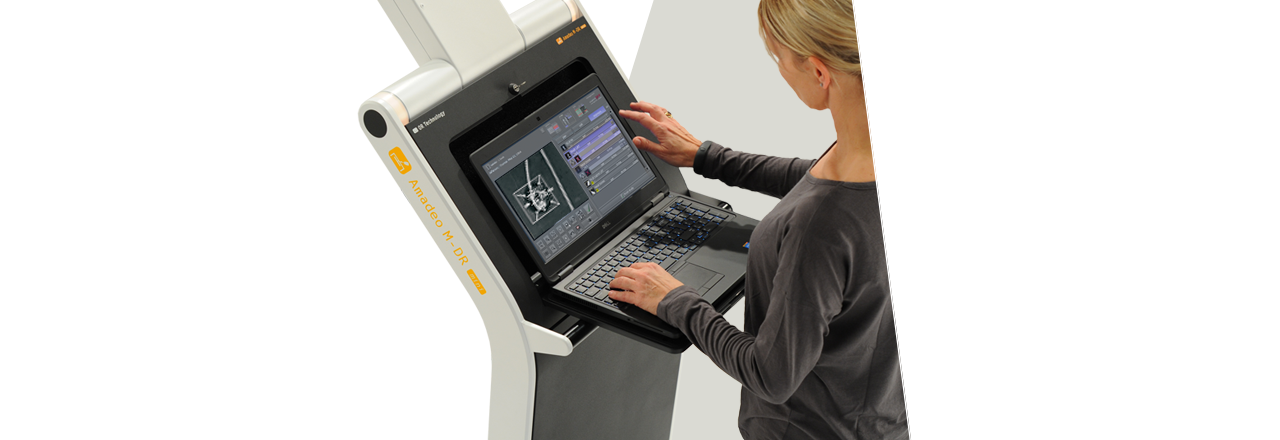

ORsecure is thus the core of a digital X-ray testing system, no matter if it is retrofitting an existing X-ray system, a completely new system including generator control or portable suitcase solutions with mobile X-ray generators.



Features & Benefits of the ORsecure software

Excellent usability and optimised workflow
  • Modern graphical user interface (GUI) adaptable to almost any language
  • Touchscreen operation – ensures a quick, efficient and orderly workflow
  • Free configuration of testing objects already in the system (stipulations for testing images incl. X-ray value settings)
  • Safe and quick registration of ad hoc tests/inspections (spontaneous test without detailed advance planning)
  • Allows switching between planned examinations of a test object
  • Images can be appended to records even after examinations are complete
  • Multi-generator operation for alternating between mobile and/or stationary X-ray systems
  • User-defined macros for recurring examinations
  • To document the testing/inspection setup, photos can be attached to the test images
  • Wireless remote control of digital X-ray system, with display of worklist, image thumbnails and much more...
Versatile image acquisition
  • Connects to flat panel and CR systems of diverse manufacturers
  • Intuitive multi-image concept for SNR improvement
  • Automatic and manual stitching (combination of several images)
  • Up to three flat panel detectors can be connected to one system
  • The generator interface of the software can be configured to control the X-ray generators and X-ray systems of diverse manufacturers
  • The software offers parallel operation of flat panel and CR systems. The user determines which device will capture the next image. Excellent fail-safe option in case of a defect matrix detector.
  • The program exposure allows setting all X-ray parameters for every image with the possibility of easy post-processing.

Other advantages of ORsecure

Professional image processing
  • Perfect images every time – few adjustments needed
  • Integrated software for automatic image optimisation
  • Professional image processing – adaptable to different types of examinations according to customer demands
  • Highly distinguishable details and high image quality
  • Noise reduction
  • Black mask (automatic shutters)
Outstanding image evaluation
  • Integrated ORsecure viewer for image diagnosis, processing, and storage in an SQL database, including image manipulation and filter, export options, layout adjustments, user interface customisation and much more:
  • Stepless zoom, PAN, magnification tool, ROI, crop, rotate, mirror etc.
  • Insert image annotations, e.g. text, arrow, ellipse
  • Measure distances, angles and areas
  • Measure grey level and SNR
  • Adjust window/level options as well as gamma correction,
  • Sharpening filters and highpass filter
  • Noise suppression
  • Intelligent image inversion
  • Pseudo-colour display
  • Many additional functions such as image matching  (subtraction), stitching etc.
  • Can be upgraded to an interconnected DICONDE image management system (PACS)
Image export, integrated image distribution
  • Worldwide distribution of images to colleagues and customers via ORCA
  • Images can be exported in JPEG, TIFF, BMP and DICOM  formats
  • Images can be printed with Windows OS printers as well as laser imagers via DICONDE Basic Print
  • Customer CDs can be created with the free WEB viewer
  • Optional external archive via ORCA®
  • Built-in email tool for image distribution - no external email application necessary
  • Image distribution to multiple recipients via image management systems and DICONDE Store

Optional add-ons

diconde PACS - the web-based viewer for mobile devices security

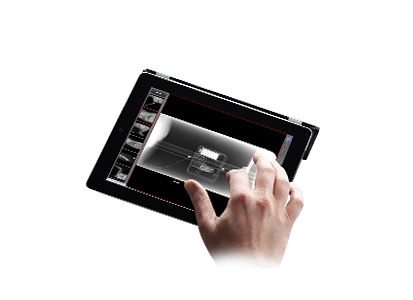

dicosPACS®  MobileView the web-based viewer for mobile devices
The web-based viewer contains all the basic functions for viewing images. You can view images virtually with any browser on mobile devices. dicosPACS MobileView offers a previously unknown degree of mobile freedom, the images are available anywhere.

diconde PACS – die zeitgemäße und ausgereifte High-Tech-Lösung für intelligentes Bildmanagement

Digitales Bildmanagement für mobile Röntgentechnik im Security-Sektor (z. B. EOD/IOD)
Die dicosPACS Software umfasst die Akquisition, Verarbeitung, den Transfer und die Archivierung von Bildmaterial. Dank der Funktionsvielfalt mit vielen Speziallösungen ermöglicht Ihnen dicosPACS, Ihr Arbeitsumfeld im Dienste der Sicherheit ganz individuell und optimal einzurichten.

Subject to technical modifications
