Software for digtital radiographic testing (RT) for the acquisition and evaluation of radiographic images with matrix detectors (DDA) and imaging plate systems (CR)

Evaluation Software for digital radiographic images with X-rays or gamma radiation and standard-compliant evaluation and reporting (e.g. ISO 17636-2)

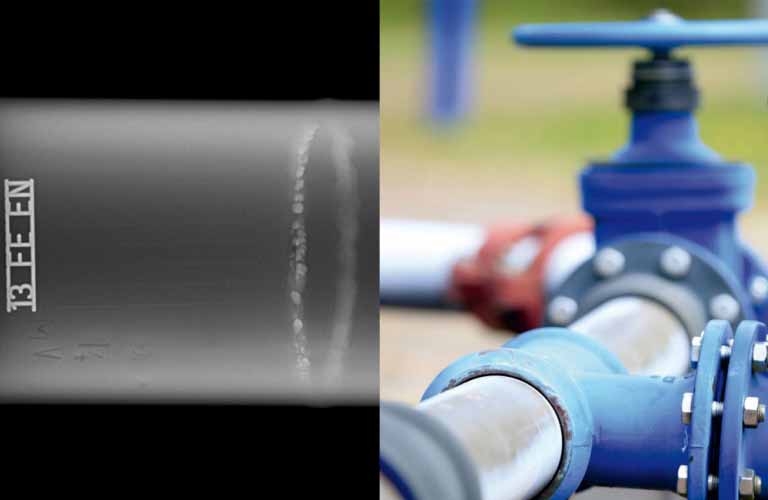

ORinspect is a professional acquisition and evaluation software for radiographic testing with X-radiation using digital detectors. The X-ray software enables non-destructive testing with matrix detectors (DDA) and imaging plate readers (CR) of virtually any manufacturer.

The software also controls the operation of X-ray generators and X-ray units of different suppliers, thus enabling an optimal, efficient workflow. The user-friendly and straightforward user interface is operated via touchscreen or mouse. The professional high-performance image processing is adaptable to individual users’ and material-specific requirements and ensures outstanding image quality.

Many helpful integrated features and the intuitive handling make the workflow and documentation an easy routine. The integrated ORinspect viewer allows evaluation the X-ray images in the acquisition software and supports the creation standardised inspection reports. Optionally, ORinspect can be upgraded to an archive solution based on DICONDE.

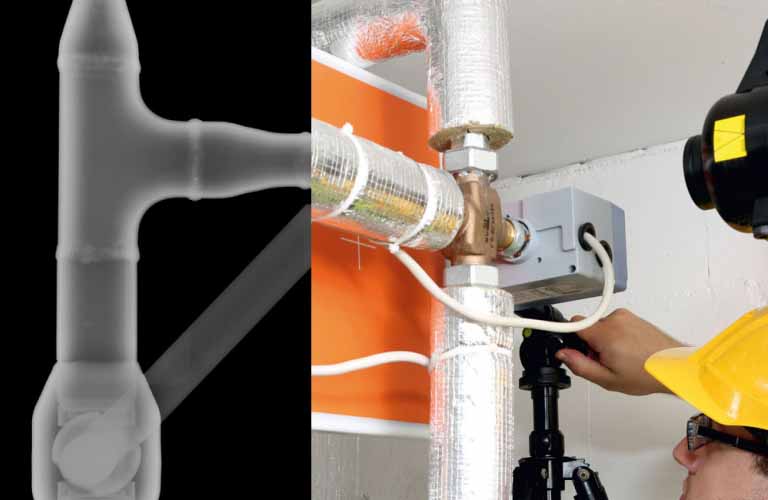

ORinspect is thus the core of a digital X-ray testing system, no matter if it is retrofitting an existing X-ray system, a completely new system including generator control or portable suitcase solutions with mobile X-ray generators.





Features & Benefits of the ORinspect software for industrial radiography

Excellent usability and optimised workflow

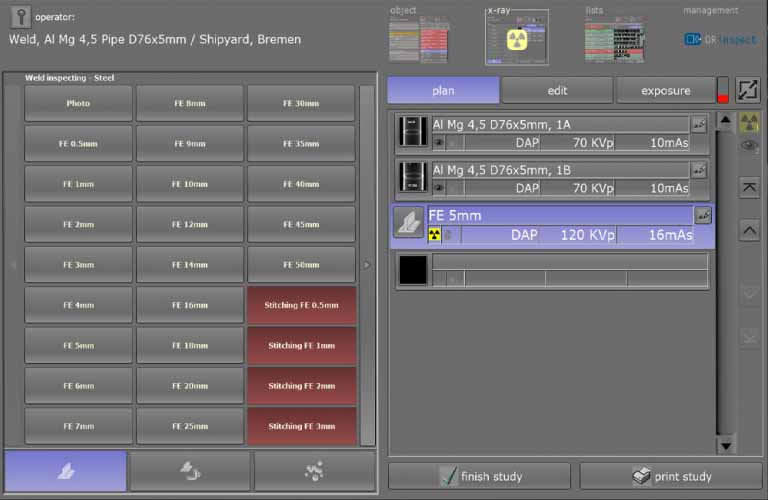

  • Modern graphical user interface (GUI) adaptable to almost any language
  • Touchscreen operation – to ensure quick and efficient work and a smooth workflow

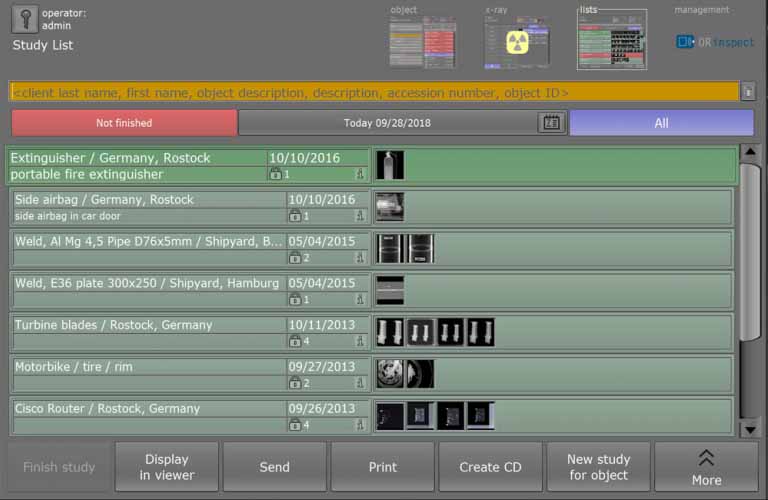

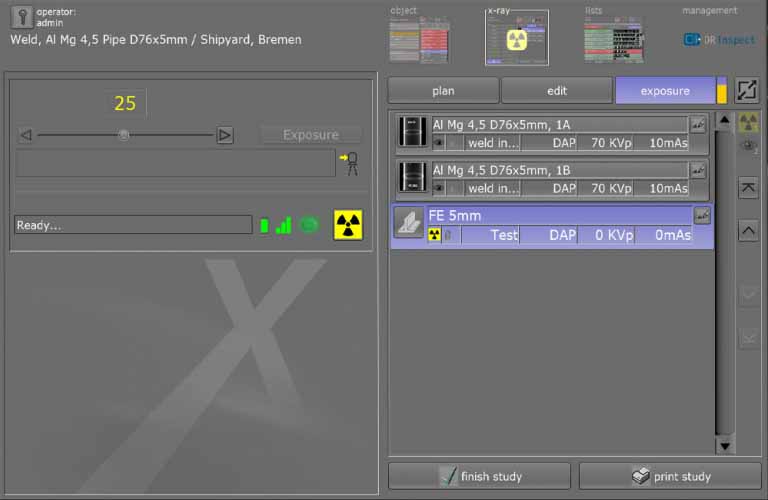

  • Free configuration of the test objects already contained in the system (specifications for test exposures incl. X-ray setting values)
  • Secure and fast acquisition of ad hoc tests / inspections (spontaneous test without detailed prior planning)
  • Allows switching between the planned examinations / inspections of a test object
  • Enables the subsequent addition of shots to tests / inspections
  • Multi-generator operation for switching between mobile and stationary X-ray systems / radiation sources
  • Capture recurring inspection sequences as macros

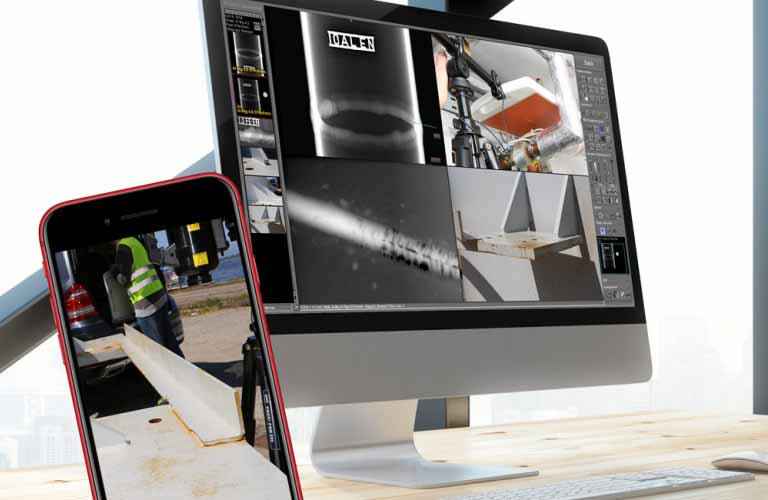

  • Photos can be assigned to the test exposures for documentation of the test situation / inspection and saved in DICONDE format
  • Possibility of controlling the digital RT system via a wireless remote control incl. displaying the work list, previewing the captured image to check the capture and much more.

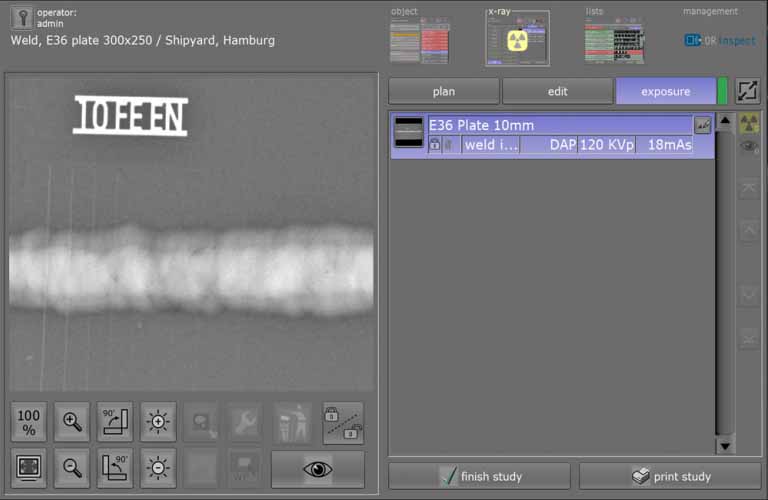

Versatile image acquisition
  • Support of various direct radiography (DR) matrix detectors (DDA, digital detector array) and CR imaging plate systems from different manufacturers. A function for parallel operation of imaging plates (CR) and matrix detectors (DDA) is included as standard. This flexibility also provides an excellent failure concept for a possible defect of the matrix detector.
  • Possibility to connect up to three digital X-ray detectors in one system.
  • Intuitive concept for multiple shots (multi-frame images) for SNR improvement
  • The configurable generator interface allows the control of X-ray generators or X-ray systems from different manufacturers and thus enables the generator parameters to be controlled directly via the software. The automatic programme allows automatic setting of all X-ray parameters for each exposure with simple, manual post-processing options.
  • Automatic and manual stitching (stitching together serveral shots) [optional]

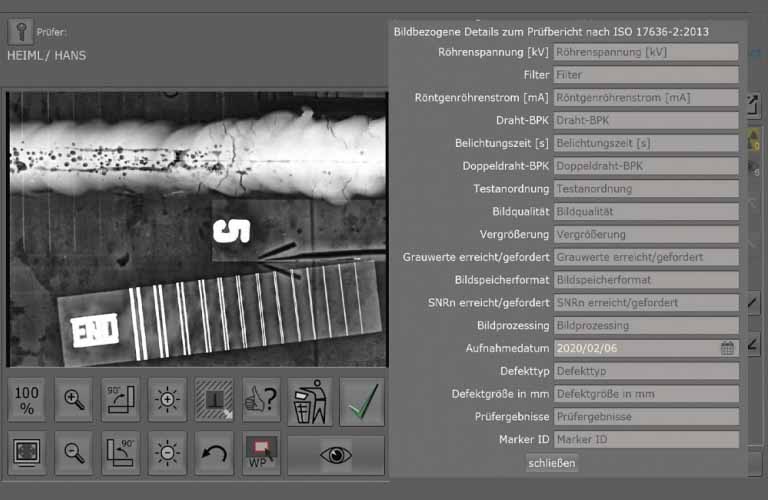

  • Easy creation of test reports (e.g. according to ISO 17636-2)

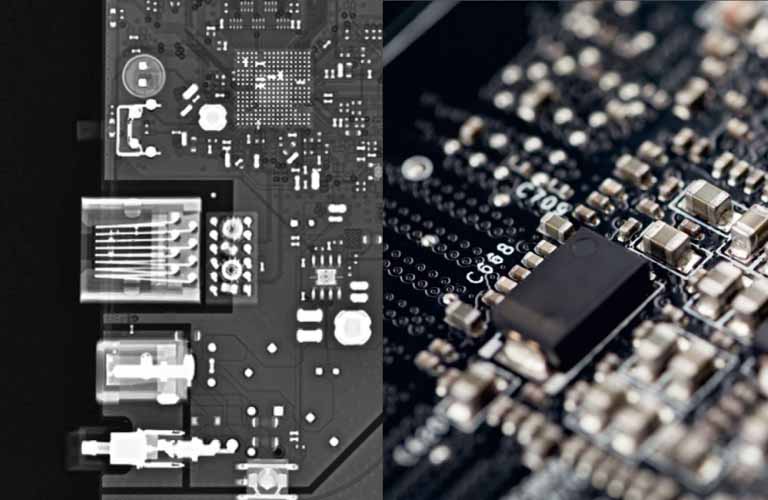

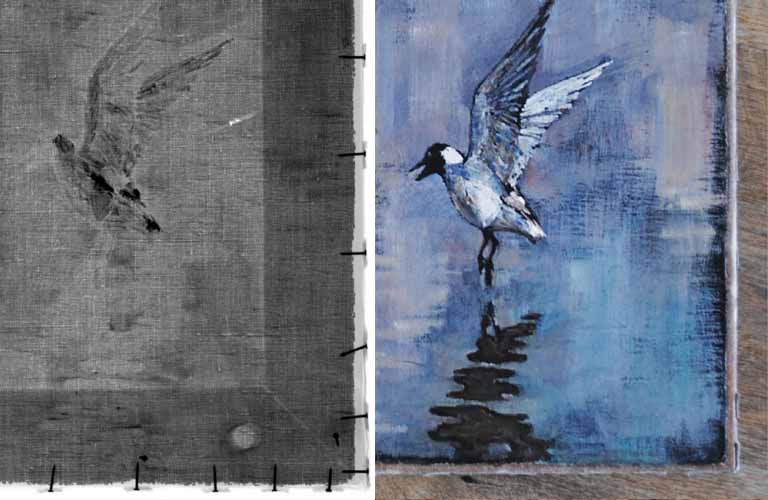

Automatic image optimisation for perfect images

- Perfect images at all times – generally no adjustment required

- Integrated software for automatic image optimisation with COP:

  • ADPC – automatic dead pixel correction
    Automatically eliminates dead pixels – this reduces the need to calibrate the flat panel

  • AIAA – automatic image area analysis
    Automatically analyses each image  and applies the most suitable image processing algorithms

  • MFLA – multi frequency level analysis
    Analyses each image on various frequency levels for ideal sharpness and high contrast

  • ANF – automatic noise filter
    Algorithm for optimal noise reduction

  • IBC – intelligent brightness control
    Automatically displays the image at the ideal level of brightness

  • ACO – automatic contrast optimisation
    Automatic contrast equalisation across the entire image

- Professional and adaptable image processing for each individual inspection/test for optimal image calculation for special customer requirements

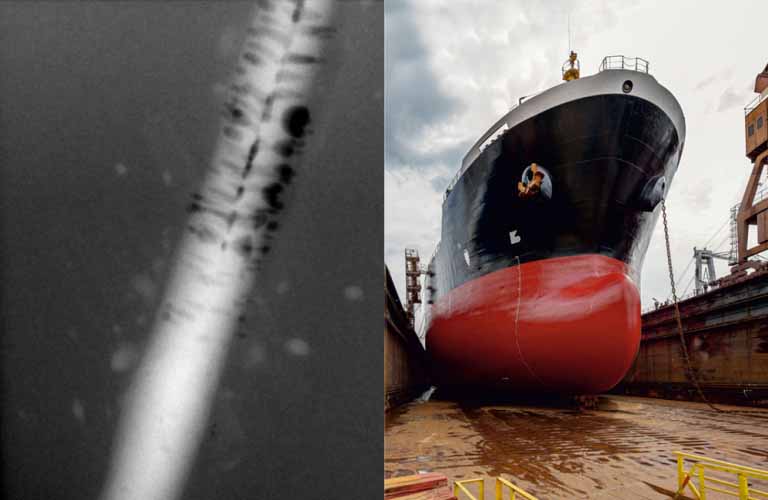

- Very good detail recognition and image quality

- Noise suppression





Professional Evaluation and image processing with the integrated viewer

Completely integrated ORinspect viewer for image diagnosis, further processing and storage of images in an SQL database incl. image manipulations and filter, export options, layout adjustments, freely configurable user interface and much more

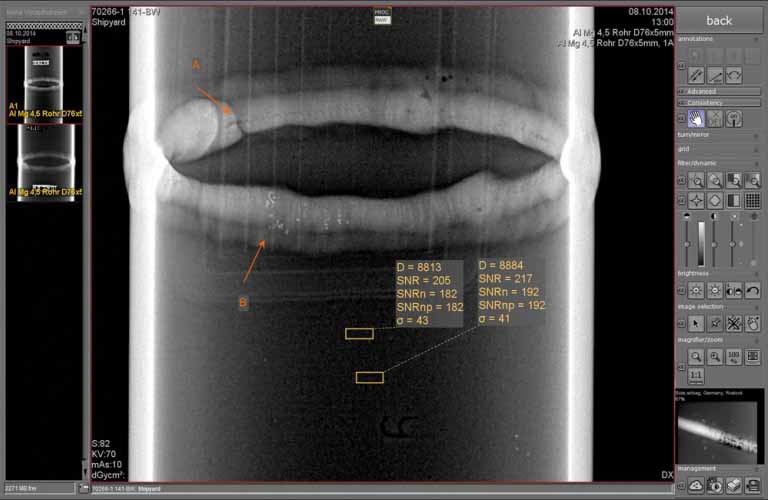

  • SNR measurement and SNRN determination (ISO 17636-2, EN 12681-2)

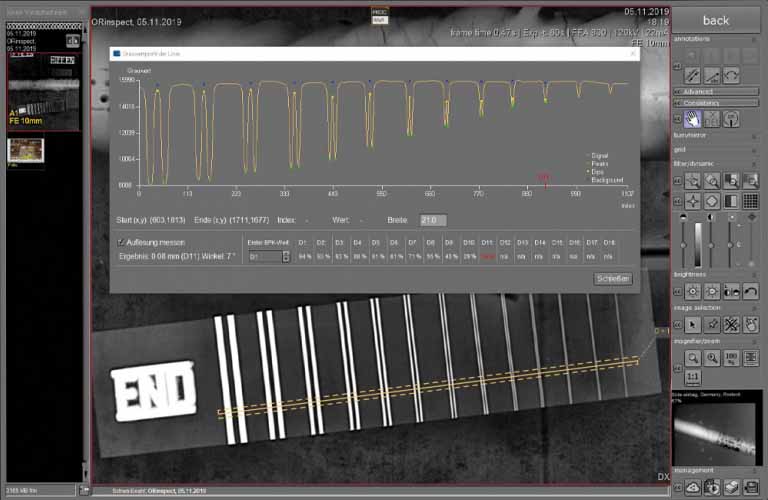

  • Automatic determination of the image blur number of the double-wire test
  • specimen (ISO 19232-5)
  • Measure grey values, plot grey value profiles

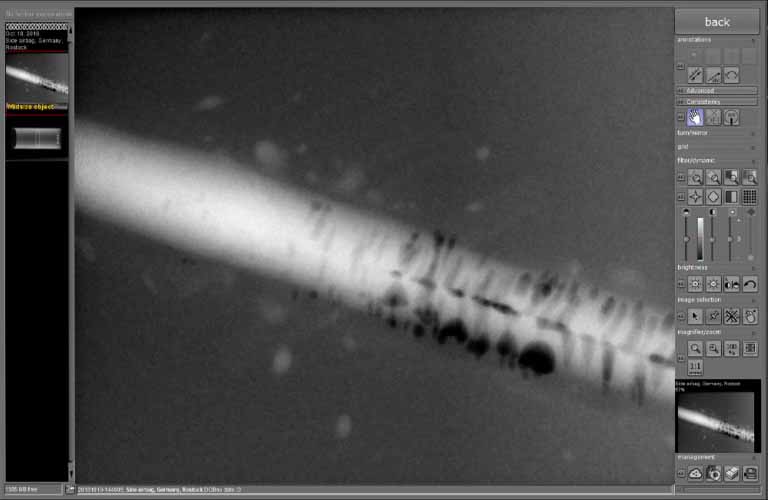

  • Stepless zoom, panning, cropping, magnifying glass function
  • Measurement of distances, angles, areas, wall thicknesses (calibrated and uncalibrated),
  • labelling and marking, e.g. arrows, free text, ellipses, rectangles, etc.
  • Adjustment of window/level values, gamma correction
  • Noise reduction, sharpness filter, high-pass filter

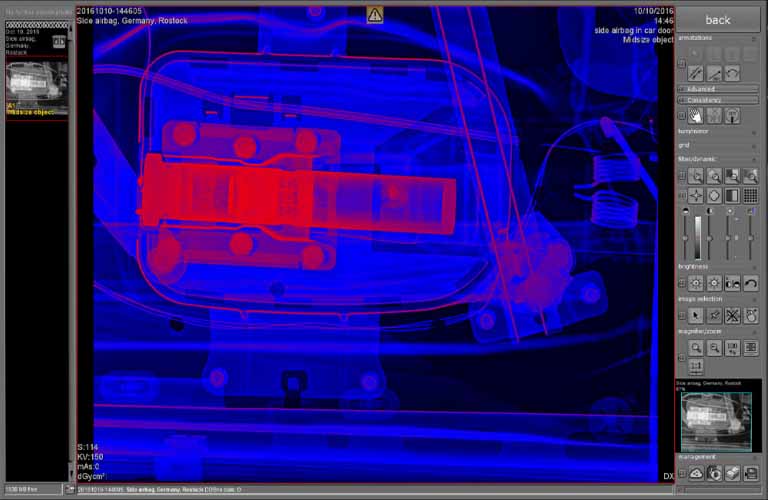

  • False colour display (pseudo colour), intelligent image inversion
  • Provision of many additional functions, e.g. image comparison (subtraction),
  • stitching (optional), etc.
  • Expandable to a networked DICONDE image management system (PACS)



Image export

  • Worldwide distribution of images to colleagues and customers via ORCA®
  • Images can be exported in JPEG, TIFF, BMP and DICONDE formats

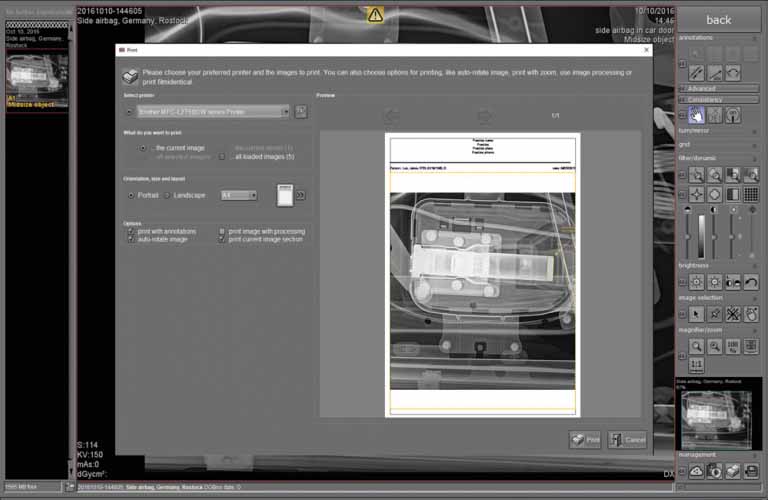

  • Images can be printed with Windows OS printers as well as laser imagers via DICONDE Basic Print
  • Creation of USB sticks for customers with free WEB viewer or virtual customer CD
    (code generation for online access to images via the ORCA® Cloud )
  • If required, external archiving can be realised via the ORCA® Cloud
  • Built-in email tool for image distribution - no external email application necessary
  • Image distribution to multiple recipients via image management systems and DICONDE store



  • Product brochure ORinspect - software for digtital radiographic testing (RT) in the NDT sector
    ORinspect is a professional acquisition and evaluation software for radiographic testing with X-radiation using digital detectors. The X-ray software enables non-destructive testing with matrix detectors (DDA) and imaging plate readers (CR) of virtually any manufacturer.

  • Product overview Strong Workmate for Non-Destructive (RT)
    Digital systems from OR Technology deliver X-ray images of the highest quality to detect even the smallest deviations during daily inspections.

Which option can be added to the ORinspect software?

ORinspect may not only be used as a software for the acquisition and evaluation of X-ray images, but can also be upgraded to a MiniPACS or even to an Enterprise Multi Modality PACS. A single workstation system with installed ORinspect software can be upgraded with the following optional options:



Extended viewer functionalities
(extract)


  • Generator control transfer of the test parameters for the X-ray image to the generator (for already integratedgenerators)
  • Automatic and manual stitching (Correct alignment and stitching of multiple images)
  • Creation of test reports in MS Word with integrated images
  • Connection of several monitors for the evaluation of the
  • X-ray images/radiographs
  • Statistical evaluation
  • And much more …



Further modules and features

ORCA

ORCA® – Archiving and file sharing of DICONDE images in the cloud
The ORCA® cloud helps you manage, track and monitor NDT projects in compliance with all rules and procedures, which we can customise for you on a project-by-project basis. Connect with manufacturers, engineers, contractors and inspectors through our cloud and streamline your workflows to enable consistent, accurate documentation.

PACS MobileView Materialpruefung

dicondePACS® MobileView  the web-based viewer for mobile devices
The web-based viewer contains all the basic functions for viewing images. You can view images virtually with any browser on mobile devices. dicondePACS®MobileView offers a previously unknown degree of mobile freedom, the images are available anywhere.






Subject to technical modifications
