CMOS detector for best high-resolution imaging in the NDT sector

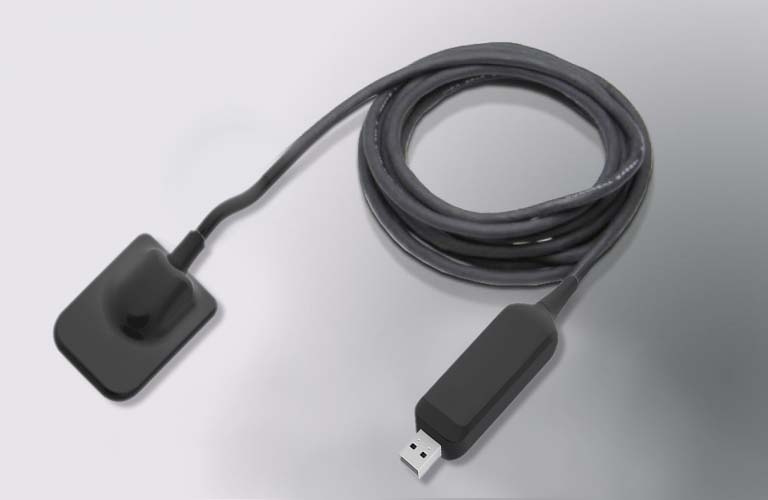

The X-ray detector with its modern CMOS sensor was developed especially for general-purpose radiographic diagnosis in the NDT sector. With a resolution of 20 lp/mm this detector offers an outstanding image quality as required for example in the aerospace industry.

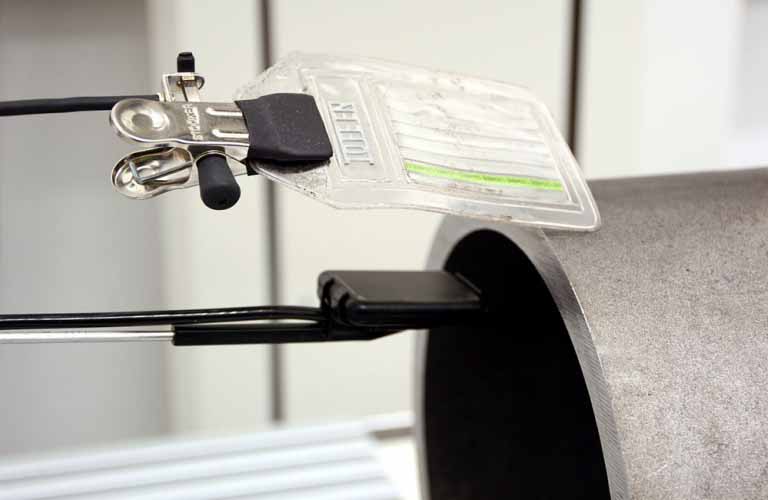

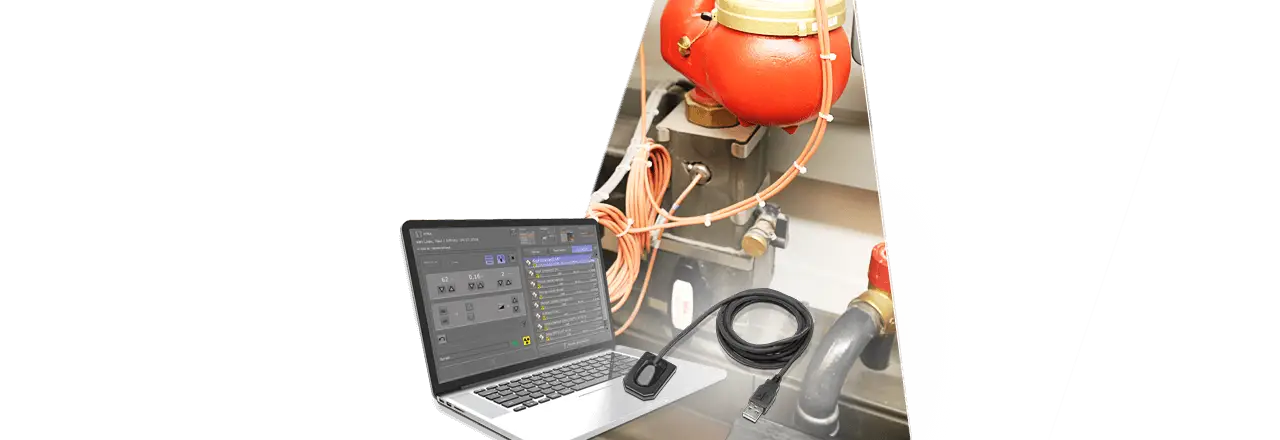

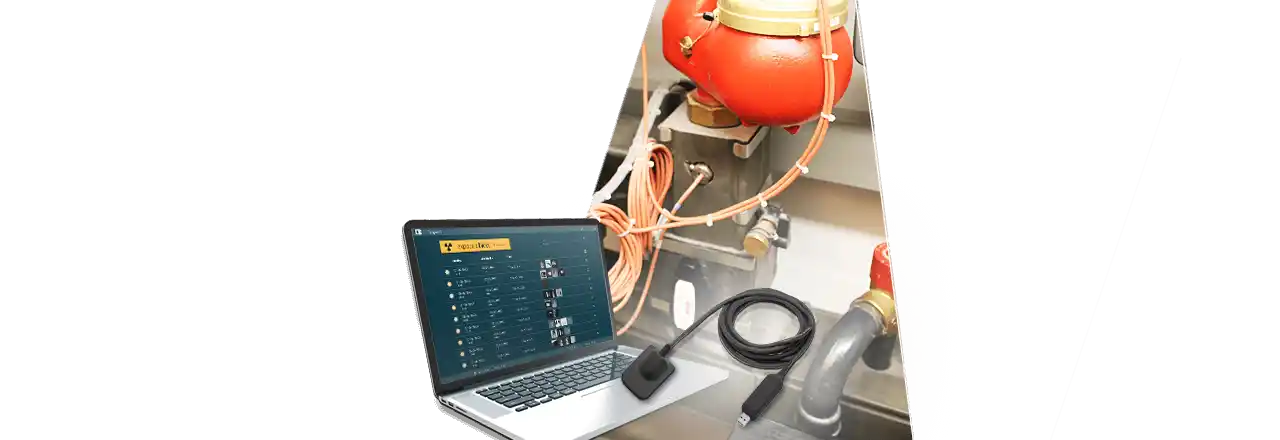

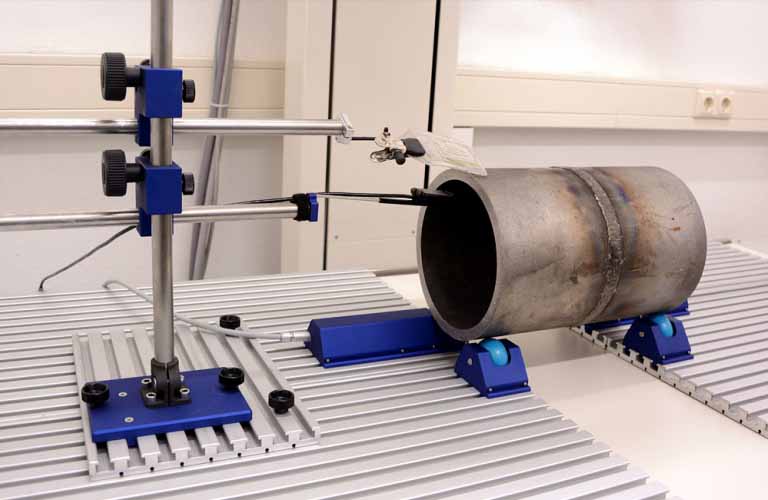

Due to its compact design, the CMOS detector is also suitable for small tubes and pipes and can be placed in hard to reach places or inside objects. The sensor surface is protected by a fiberglass plate and guarantees a long service life of the sensor. The easy-to-use X-ray detector is connected via a USB interface and is dust and waterproof.

The acquisition and control software ORinspect which is included in the Medici package can be used comfortably on a laptop or touchscreen. It adapts to your workflow and provides high quality X-ray images almost without time lag.


nach oben

Features & benefits of the CMOS detector

•    High resolution and excellent image quality
•    AED - no need for adjustment in the X-ray unit
•    Extremely cost effective
•    Robust, dust and waterproof according to IP67
•    Large dynamic range
•    Lightweight


nach oben

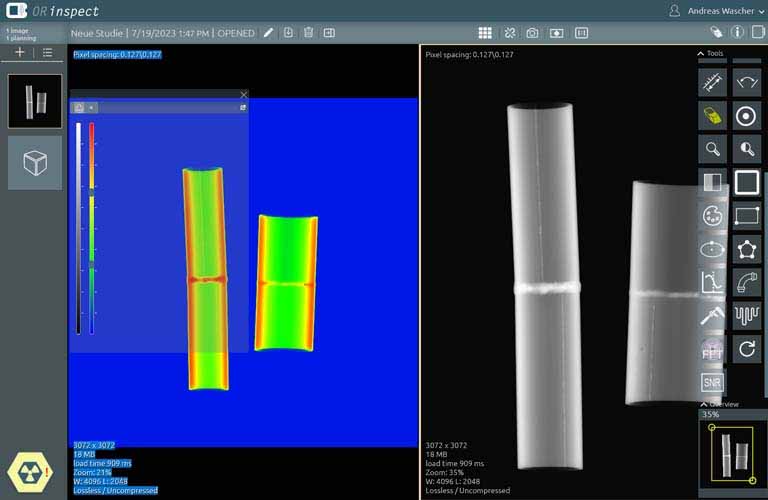

ORinspect: Professional acquisition and control software for radiographic testing (RT)

ORinspect: Professional acquisition and control software for radiographic testing (RT)

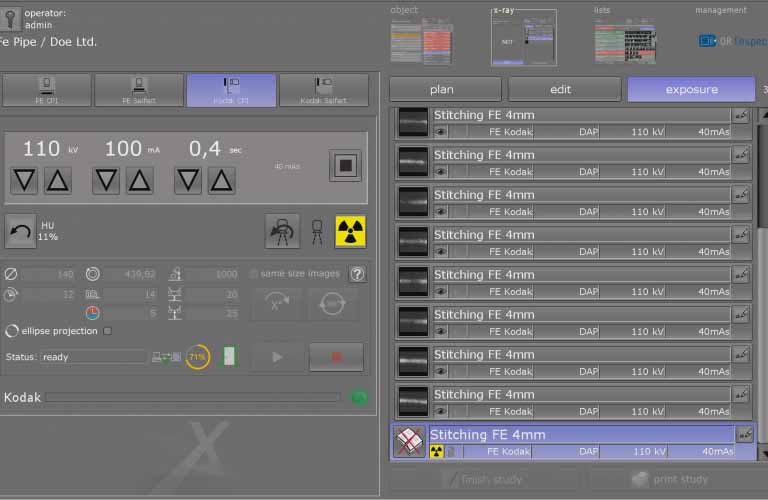

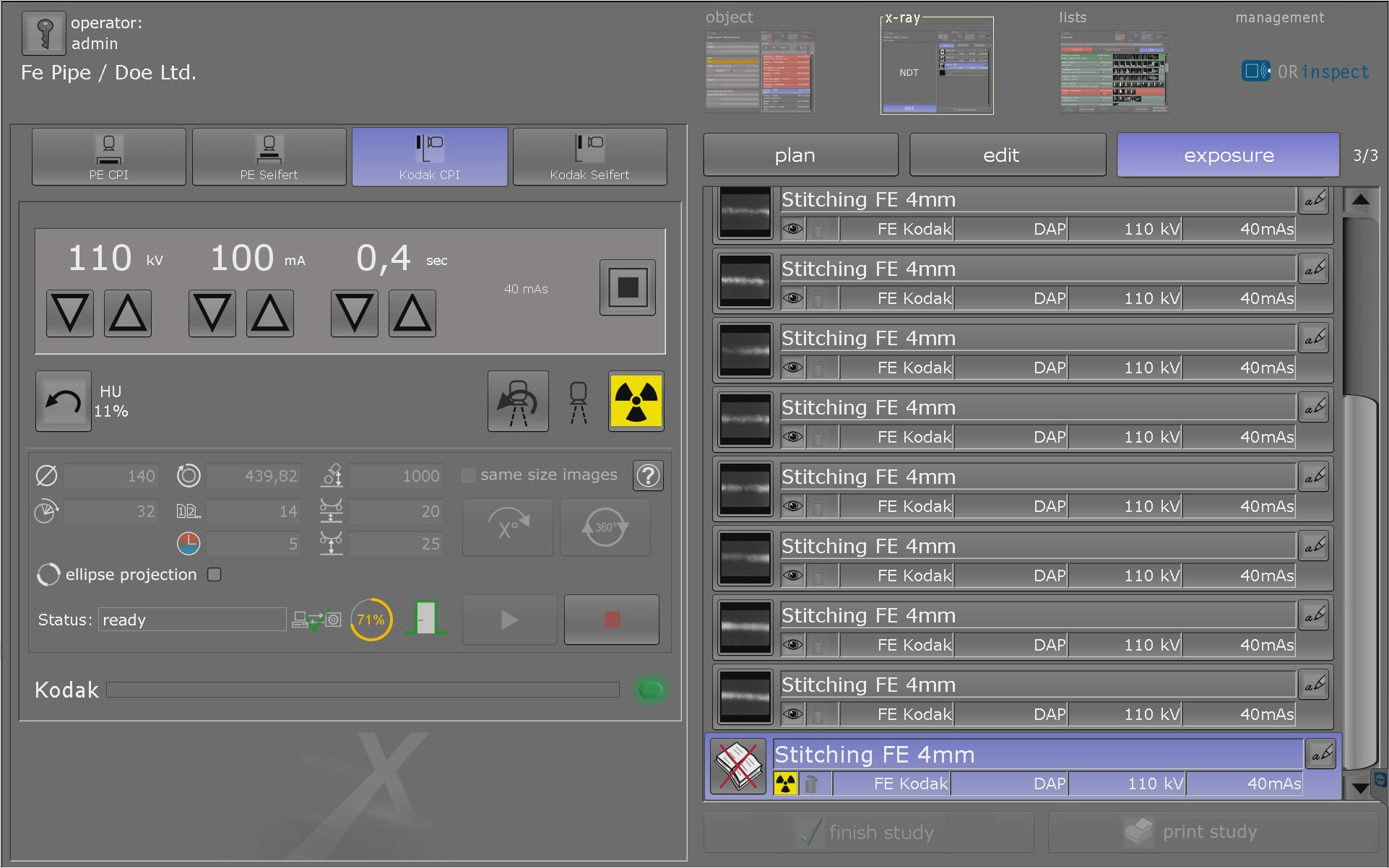

The heart of each NDT system is the  ORinspect X-ray acquisition and control software developed by OR Technology.

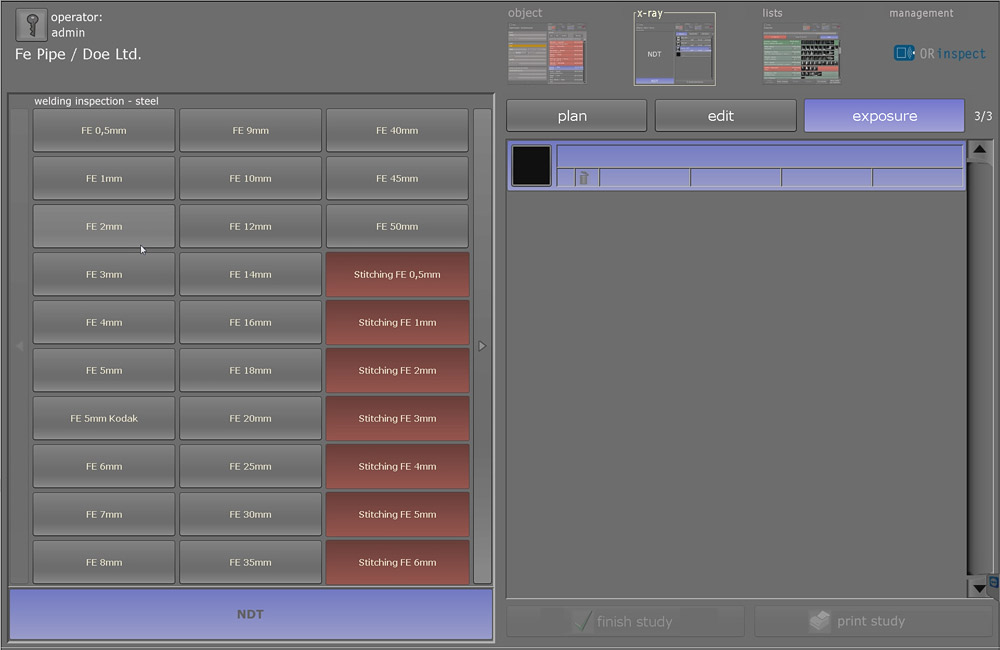

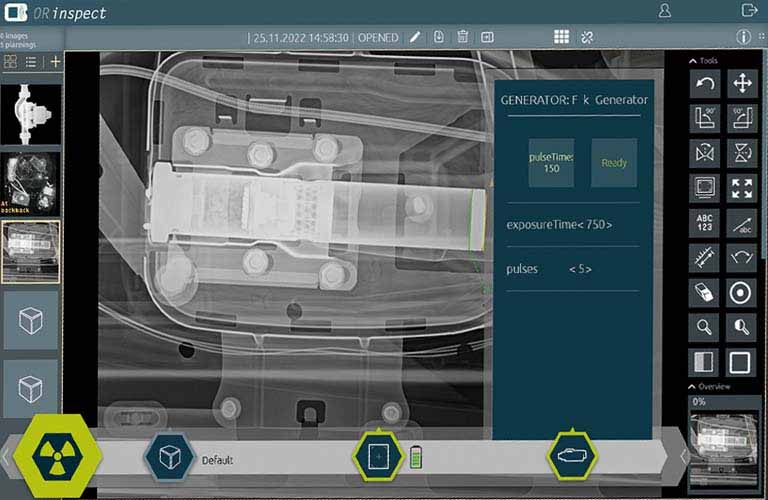

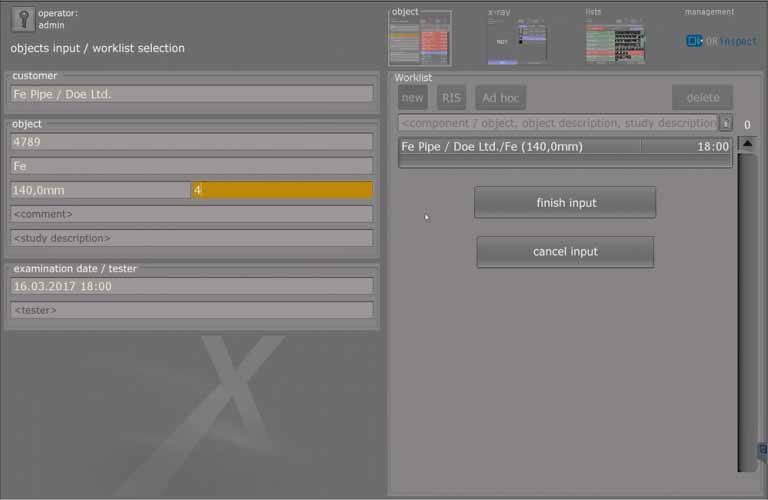

The software controls X-ray generators and X-ray units of various manufacturers, providing a smooth and structured workflow. A intuitive and user friendly GUI (graphical user interface), operated by touchscreen or mouse, completes the system.

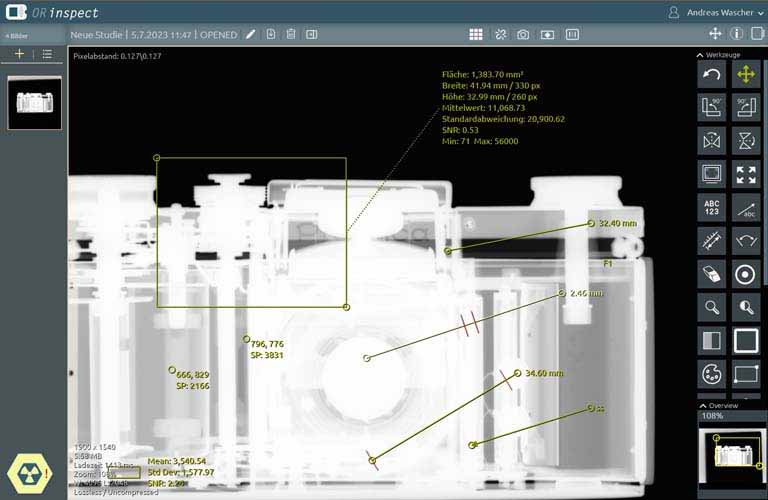

The professional image processing can be adapted to individual user needs and offers outstanding image quality. It has been specially developed to enable material-specific optimisation, guaranteeing the highest quality of X-ray images.

[more information...]


nach oben

¿Tiene alguna pregunta?

¿Podemos digitalizar su sistema de rayos X con el set de actualización Medici DR?
Averigüémoslo juntos.
Icon - llámenos+49 381 36 600 500 Icon - Envíenos su solicitudinfo@or-technology.com
Contacte con
OR Technology - Contacte con



nach oben
  • Product information CMOS Dental Detector
    Due to its modern CMOS sensor, the detector is ideally suited for use in X-ray diagnostics in the field of NDT.

  • Brochure Strong Workmate for Non Destructive Testing (RT)
    Our portable digital systems generate images in the highest quality for detecting minimal deviations for your inspection requirements.

nach oben

Optional add-ons

dicomPACS®MobileView – der webbasierte Viewer für mobile Endgeräte


Medici DR systems – DR retrofits for your existing stationary X-ray system for materials testing and quality inspection
With the Medici DR X-ray detector upgrade, work routines for materials testing and quality inspection become simpler and faster. Furthermore, the digital technology clearly leads to improved image quality and higher reproducibility. Our Medici DR systems are available for nearly every X-ray unit manufactured.

Aufrüstung vorhandener mobiler Röntgensysteme zur Material-und Qualitätsprüfung


Medici DR retrofits for your existing mobile X-ray system for materials testing and quality inspection
With the Medici DR X-ray detector upgrade, work routines for materials testing and quality inspection become simpler and faster


dicomPACS®MobileView – the web-based viewer for mobile devices


dicomPACS®MobileView – the web-based viewer for mobile devices
The web-based viewer contains all the basic functions for viewing images. You can view images virtually with any browser on mobile devices. dicomPACS®MobileView offers a previously unknown degree of mobile freedom, the images are available anywhere.

dicom PACS ® – the sophisticated and high-tech image management solution


dicomPACS® – the sophisticated and high-tech image management solution
The dicomPACS® software acquires, processes, transfers and archives images. Thanks to a diverse array of special functions, the dicomPACS®  can be customised for many applications in the security sector.





nach oben

Technical details for the CMOS detector

Measurements outline:

34.4 mm x 41.9 mm

Pixel size:

20 x 20 µm

Image size:

26 mm (H) x 34 mm (V)

Pixel format:

1300 (H) x 1700 (V)

Resolution:

20 lp/mm

Triggering:

AED

Scintillator type:

CsI

Technology:

CMOS

Interface:

USB 2.0

Protection class:

Waterproof equivalent IP67

nach oben
Subject to technical modifications
