Digital X-ray imaging with cassettes – resolution up to 50 µm

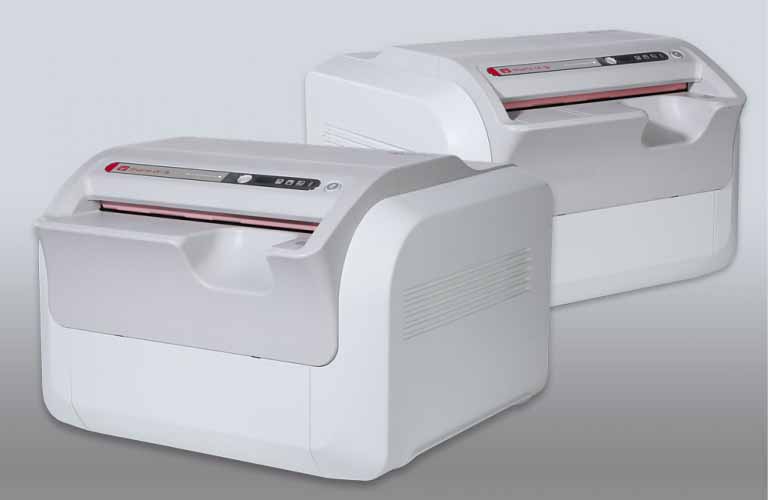

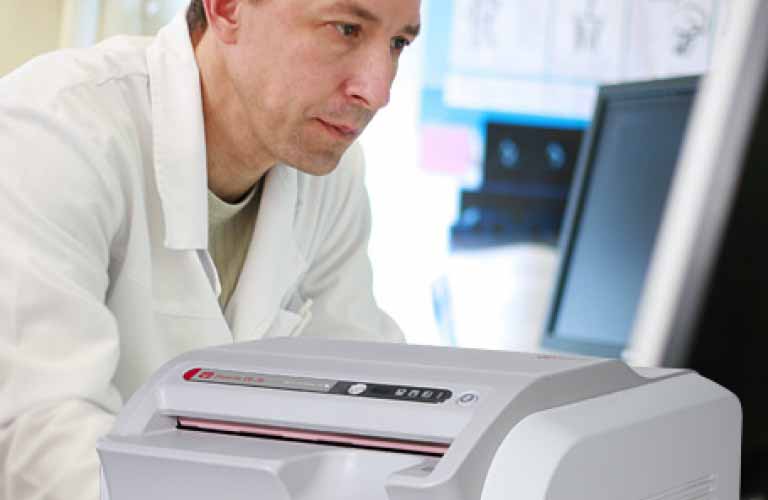

The Divario CR-Tm is a CR desktop system with a maximum throughput of 73 cassettes per hour. In high-speed mode (5 pixel/mm), the processing rate of the new Divario is 70 % higher than that of older CR systems. The Divario is easy to operate, reduces patients' waiting time and makes examinations more efficient. The desktop system is unobtrusive, has a compact design, and is small enough to fit on any office shelf.

It is the perfect unit for private practices as well as clinics and hospitals. In addidtion, the Divario CR-Tm version can be used for mammographiy examinations. The system offers high-resolution images with a pixel size of up to 50 µm.

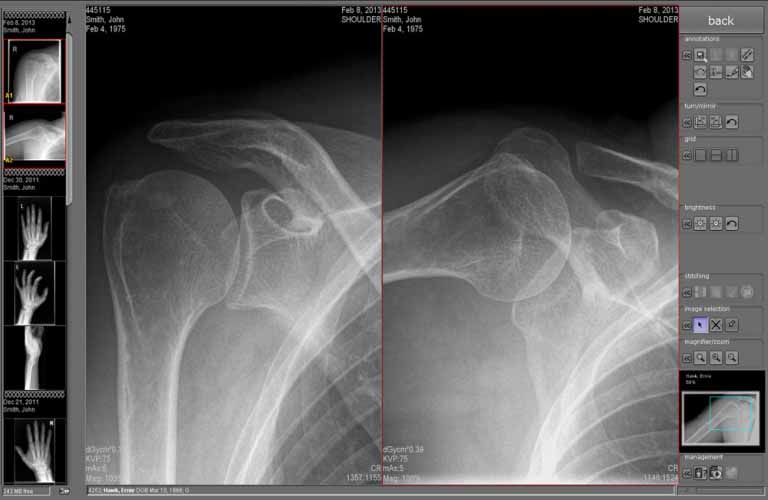

When used in combination with the professional image acquisition software dicomPACS®DX-R, the lightweight and compact CR system provides a complete suite of image processing tools. The software offers an extended range of acquisition functions to be used in mammography, such as a specialised organ tree, Mammography Hanging Protocols, specialised mammography tools in the console viewer and many more. The solution can easily be integrated into the workflow of a running practice, for example to handle overflow and act as a backup in an existing DR or CR system.





nach oben

The following cassettes are available for the Divario CR-Tm:

IP cassette type CH (high resolution):
  • 24 x 30 cm (10“ x 12“)
  • 18 x 24 cm (8“ x 10“)
IP cassette type CC:
  • 35 x 43 cm (14“ x 17“)
  • 35 x 35 cm (14“ x 14“)
  • 24 x 30 cm (10“ x 12“)
  • 18 x 24 cm (8“ x 10“)
  • 15 x 30 cm (6“ x 12“)
nach oben

Features & Benefits of the Divario CR-Tm System

Small

Compact desktop unit (0.30 m² footprint)

High quality

Constant, high-resolution image quality

Fast

Maximum processing capacity: 73 cassettes per hour for 18 x 24cm format

Flexible

Portable, suited for mobile use

Stitching (optional)

For full spine and long leg X-ray images - the separate images are stitched together automatically (auto-stitching)

Extended acquisition functionality

Functionality for use in mammography: Specialised organ tree + Mammography Hanging Protocols + Documentation of additional examination parameters such as filter, thickness, angle, implant and many more


nach oben

Acquisition and diagnostic software for X-ray images

DXR human

Corazon de cada sistema Divario DR-Systems es el dicomPACS®DX-R software de addquisicion y de diagnostico con la guia de posicionamientode rayos X integrado desarrollado por OR Technology.

El software controla generadores de rayos X y unidades de rayos X de varios fabricantes, proporcionando un flujo de trabajo suave y estructurado. Una interfaz gráfica sencilla y amigable para el usuario (interfaz gráfica de usuario), operada por pantalla táctil o ratón, completa el sistema.

 El  procesamiento de imágenes profesional dicomPACS®DX-R  puede adaptarse a las necesidades individuales de los usuarios y ofrece una calidad de imagen excepcional en medicina humana y veterinaria. Ha sido especialmente desarrollado para permitir la optimización de la calidad de visualización específica de órganos, garantizando la más alta calidad de las imágenes de rayos X.

 [más información...]





nach oben

¿Tiene alguna pregunta?

¿Es el Divario CR T2 la unidad de rayos X CR adecuada para usted?
Averigüémoslo juntos.
Icon - llámenos+49 381 36 600 500 Icon - Envíenos su solicitudinfo@or-technology.com
Contacte con
OR Technology - Contacte con



nach oben
  • Product information Divario CR-Tm for human medicine
    Digital X-ray with cassettes with a resolution of up to 50µm

  • Product information dicomPACS® Upper Cervical (NUCCA) and Standard Chiropractic Tools
    Diagnostic tools for optimal chiropractical diagnosis

  • Product overview Digital X-ray in human medicine
    Product portfolio of OR Technology: Digital Radiography and Image Management - A guide for medical practices, clinics and hospitals

nach oben

Optional add-ons

PACS MobileView


dicomPACS®MobileView the web-based viewer for mobile devices
The web-based viewer contains all the basic functions for viewing images. You can view images virtually with any browser on mobile devices. dicomPACS®MobileView offers doctors and nursing staff a previously unknown degree of mobile freedom in the workplace inside and outside of hospitals or practices, with the radiological image material available from anywhere.

ORCA


ORCA  storage of medical data (images and documents) as well as sharing via the internet
ORCA
(OR Technology Cloud Archiving) is a cloud-based platform specially designed for storing, viewing and sharing medical images and documents. ORCA offers two exciting applications: ORCA Archive and ORCA Share.



PACS Software

dicomPACS® the sophisticated and high-tech image management solution
With dicomPACS® all images generated by digital X-ray, CT, MRI and ultrasound devices, as well as diverse documents (e.g. doctor's letters, medical findings, medical history, faxes) are stored in a digital patient folder and readily accessible.




nach oben

The Divario CR-Tm system includes the following components:

CR desktop unit

Cassette sizes for type CC: 35 x 43cm (14" x 17")

  • 35 x 35cm (14" x 14")
  • 24 x 30cm (10" x 12")
  • 18 x 24cm (8" x 10" )
  • 15 x 30cm (6" x 12")

Cassette sizes for type  CH (high resolution):

  • 24 x 30 cm (10“ x 12“)
  • 18 x 24 cn (8“ x 10“)

Processing capacity: Up to 73 cassettes per hour (18 x 24 cm)

Resolution: 20 Pixel/mm (50 µm), 10 Pixel/mm (100 µm)

Dimensions: 560 x 540 x 392mm (22"x 21"x 15")

Weight: 39 kg (86 lbs)

Operating conditions:

  • Temperature: 15-30°C
  • Humidity: 15 to 80% RH (non-condensing)
  • Atmospheric pressure: 750-1060 hPa

Power supply: Single-phase, 50-60Hz AC120-240V ±10% 1.9A (max)

CR cassettes

All common cassette sizes are available:

  • 1 x 35 cm x 43 cm (included)

Other formats and quantities available upon request

Divario CR-T software package

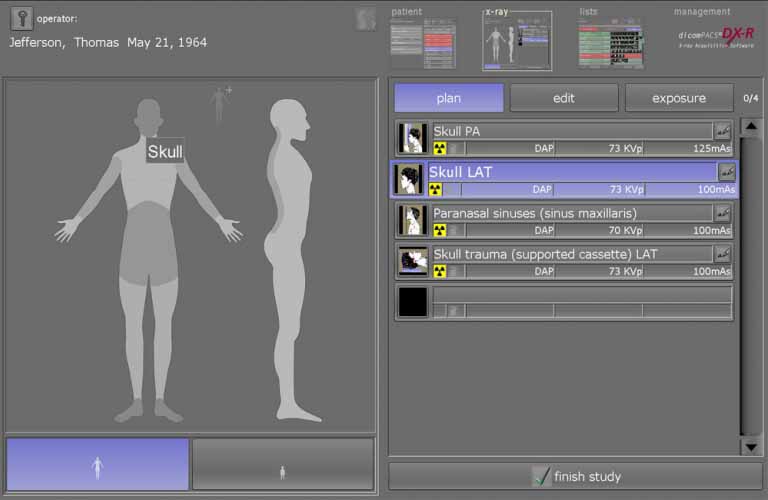

The dicomPACS®DX-R professional console software sports a modern graphical user interface and an integrated radiographic positioning guide, and includes the following modules:

  • dicomPACS®DX-R DICOM Send SCU including MPPS and Storage Commitment
  • dicomPACS®DX-R DICOM Worklist SCU + dicomPACS® Connect
  • dicomPACS®DX-R DICOM Patient CD
  • dicomPACS®DX-R Cognition Optimised Processing

Optional components for the Divario CR-Tm system

dicomPACS®DX-R control console

Operating console with touch screen monitor, MS Windows (hardware stress test, software pre-installation, system checked and ready to use) Available in two versions:

  • Option 1: Desktop
  • Option 2: Notebook
nach oben
Subject to technical modifications
