Digital X-raying with cassettes with imaging plate systems for standard X-ray examinations

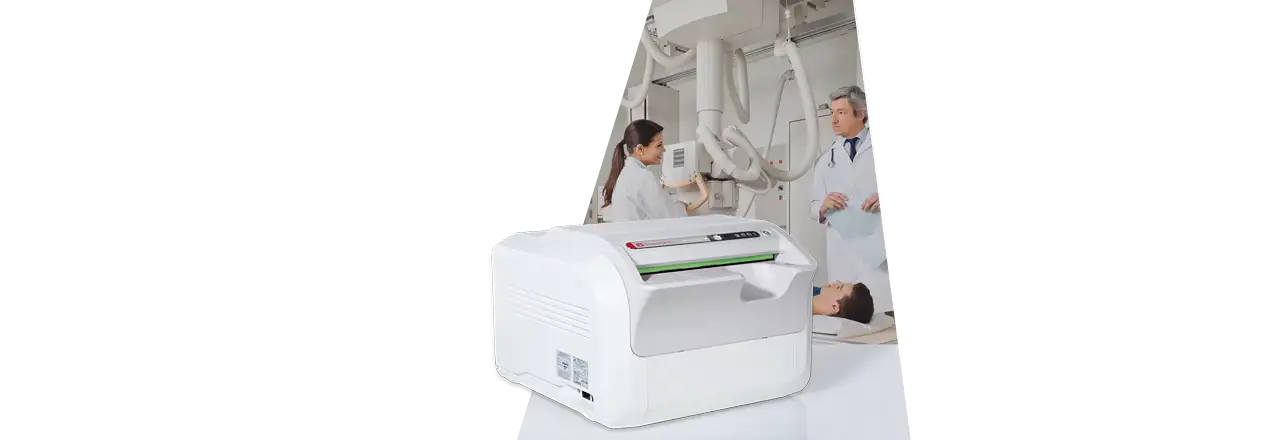

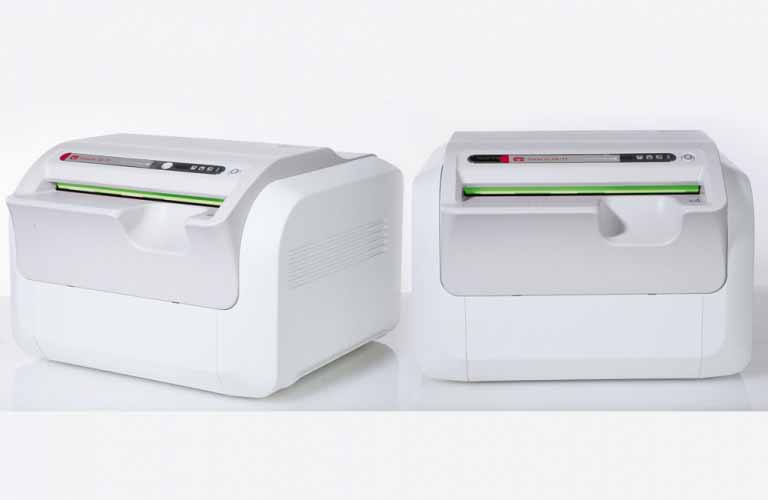

The Divario CR-T2 is a CR desktop system (imaging plate reader) with a maximum throughput of 73 cassettes per hour. In high-speed mode (5 pixel/mm), the processing rate of the new Divario is 70 % higher than that of older CR systems. The Divario is easy to operate, reduces patients' waiting time and makes examinations more efficient. The desktop system is unobtrusive, has a compact design, and is small enough to fit on any office shelf. It is the perfect unit for private practices as well as clinics and hospitals.

When used in combination with the professional image acquisition software dicomPACS®DX-R, the lightweight and compact CR system provides a complete suite of image processing tools. The solution can easily be integrated into the workflow of a running practice or clinic, for example to handle overflow and act as a backup in an existing DR or CR system.



nach oben

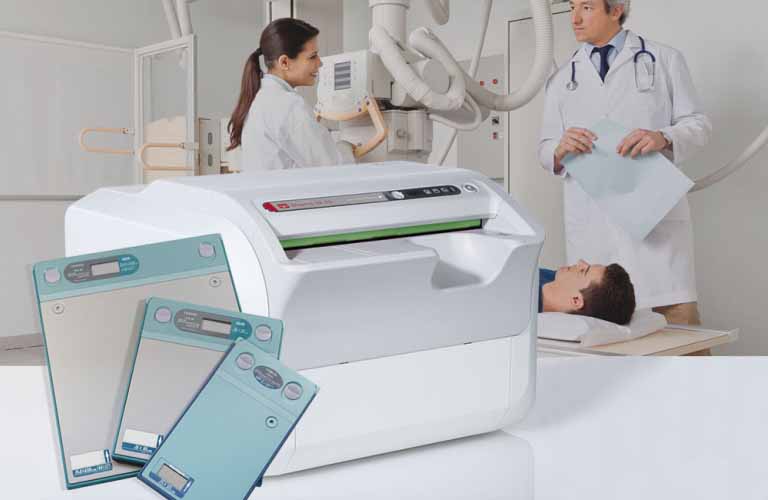

The following cassettes are available for the Divario CR-T2 :

IP cassette type CC:
  • 35 x 43 cm (14“ x 17“)
  • 35 x 35 cm (14“ x 14“)
  • 24 x 30 cm (10“ x 12“)
  • 18 x 24 cm (8“ x 10“)
  • 15 x 30 cm (6“ x 12“)
IP cassette type LC:

Long bone and full spine cassette
(2 cassetes 35 cm x 43 cm or 3 cassettes 24 cm x 30 cm are required)

  • 35 x 83 cm (14“ x 33“)
  • 35 x 124 cm (14“ x 49“)
  • 24 x 30 cm (10“ x 12“)
nach oben

Features & Benefits of the Divario CR-T2 System


Compact desktop unit (0.30 m² footprint)

High quality

Constant, high-resolution image quality


Maximum processing capacity: 73 cassettes per hour for 18 x 24cm format


Portable, suited for mobile use

Stitching (optional)

For full spine and long leg X-ray images - the separate images are stitched together automatically (auto-stitching)

nach oben

Acquisition and diagnostic software for X-ray images

Acquisition and diagnostic software for X-ray images

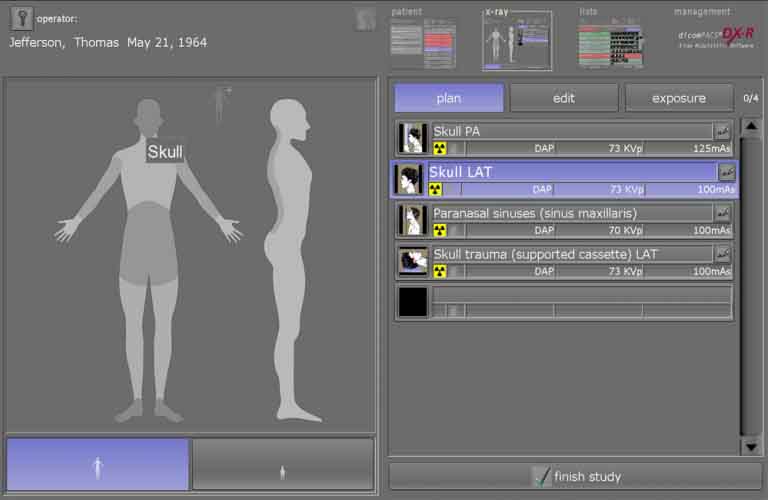

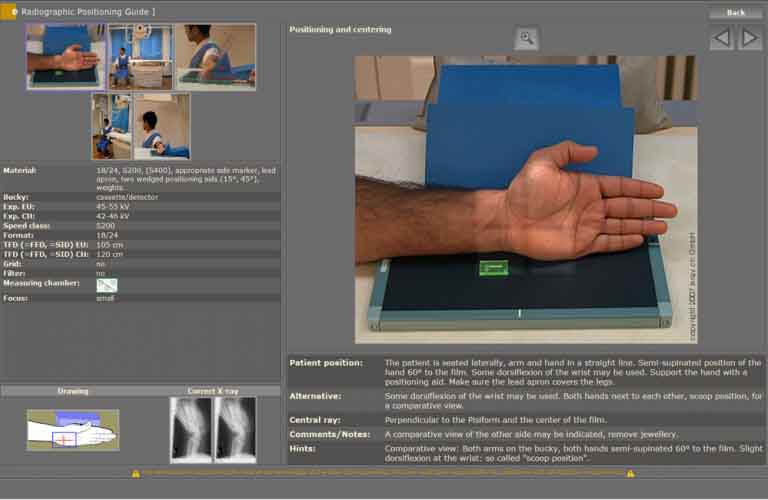

At the heart of each Divario system is the dicomPACS®DX-R acquisition and diagnostic software with the integrated X-ray positioning guide developed by OR Technology.

The software controls X-ray generators and X-ray units of various manufacturers, providing a smooth and structured workflow. A simple and user friendly GUI (graphical user interface), operated by touchscreen or mouse, completes the system.

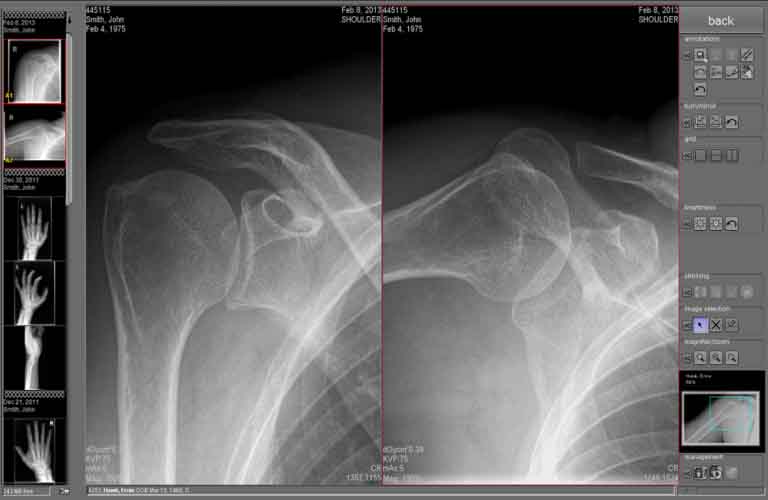

The professional dicomPACS®DX-R image processing can be adapted to individual user needs and offers outstanding image quality in human and veterinary medicine. It has been specially developed to enable organ specific viewing quality optimisation, guaranteeing the highest quality of X-ray images.

[more information...]


nach oben

Any further questions?

Is the Divario CR T2 the right CR X-ray unit for you?
Let's find out together.
Icon - call us+49 381 36 600 500 Icon - write us a
OR Technology - Call our Sales-Team


nach oben
  • Product information Divario CR-T2 for human medicine
    Digital X-ray with cassettes for standard X-ray examinations

  • Produktino dicomPACS® Upper Cervical (NUCCA) and Standard Chiropractic Tools
    Diagnostic tools for optimal chiropractical diagnosis

  • Product overview Digital X-ray in human medicine
    Product portfolio of OR Technology: Digital Radiography and Image Management - A guide for medical practices, clinics and hospitals

nach oben

Optional add-ons

dicomPACS®MobileView – the web-based viewer for mobile devices

dicomPACS®MobileView – the web-based viewer for mobile devices
The web-based viewer contains all the basic functions for viewing images. You can view images virtually with any browser on mobile devices. dicomPACS®MobileView offers doctors and nursing staff a previously unknown degree of mobile freedom in the workplace inside and outside of hospitals or practices, with the radiological image material available from anywhere.


ORCA –  storage of medical data (images and documents) as well as sharing via the internet
ORCA (OR Technology Cloud Archiving) is a cloud-based platform specially designed for storing, viewing and sharing medical images and documents. ORCA offers two exciting applications: ORCA Archive and ORCA Share.


PACS Software

dicomPACS® – the sophisticated and high-tech image management solution
With dicomPACS® all images generated by digital X-ray, CT, MRI and ultrasound devices, as well as diverse documents (e.g. doctor's letters, medical findings, medical history, faxes) are stored in a digital patient folder and readily accessible.


nach oben

The Divario CR-T2 system includes the following components:

CR desktop unit

Cassette sizes for type CC: 35 x 43cm (14" x 17")

  • 35 x 35cm (14" x 14")
  • 24 x 30cm (10" x 12")
  • 18 x 24cm (8" x 10" )
  • 15 x 30cm (6" x 12")

Processing capacity: Up to 73 cassettes per hour (18 x 24 cm)

Resolution:10 Pixel/mm, 5 Pixel/mm Dimensions: 560 x 540 x 392mm (22"x 21"x 15")

Weight: 39 kg (86 lbs)

Operating conditions:

  • Temperature: 15-30°C
  • Humidity: 15 to 80% RH (non-condensing)
  • Atmospheric pressure: 750-1060 hPa

Power supply: Single-phase, 50-60Hz AC120-240V ±10% 1.9A (max)

CR cassettes

All common cassette sizes are available:

  • 1 x 35 cm x 43 cm (included)

Other formats and quantities available upon request

Divario CR-T software package

The dicomPACS®DX-R professional console software sports a modern graphical user interface and an integrated radiographic positioning guide, and includes the following modules:

  • dicomPACS®DX-R DICOM Send SCU including MPPS and Storage Commitment
  • dicomPACS®DX-R DICOM Worklist SCU + dicomPACS® Connect
  • dicomPACS®DX-R DICOM Patient CD
  • dicomPACS®DX-R Cognition Optimised Processing

Optional components for the Divario CR-T2 system

dicomPACS®DX-R control console

Operating console with touch screen monitor, MS Windows (hardware stress test, software pre-installation, system checked and ready to use) Available in two versions:

  • Option 1: Desktop
  • Option 2: Notebook
