The portable X-ray system for Non Destructive Testing (RT) of welds, castings and forgings, etc. for various applications:
The newest model in our Leonardo series, the compact and versatile Leonardo DR mini II, combines X-ray detector technology with a high-performance acquisition and control software ORinspect for Non Destructive Testing (RT). Weighing only 8.9 kg, the system is one of the lightest suitcase X-ray solutions worldwide.

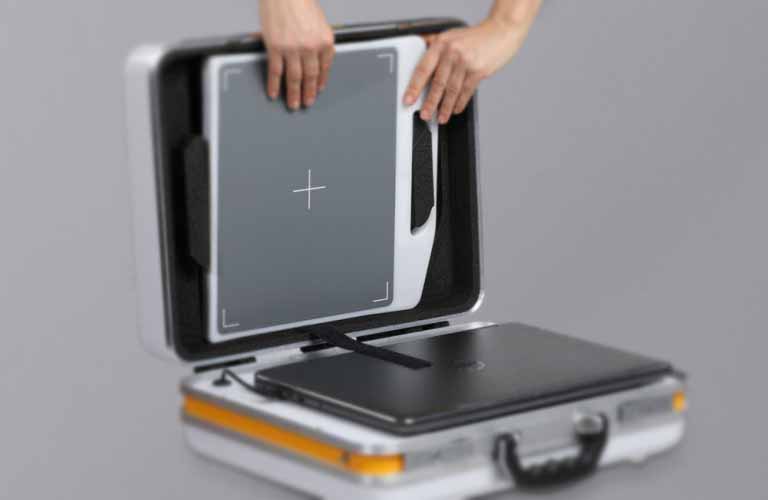

The Leonardo DR mini II is optimised for stationary as well as mobile use and easy to operate. Its built-in 17" premium notebook with high resolution touchscreen monitor as well as integrated acquisition and control software, functions via touchscreen and mouse, guarantees excellent image display. The notebook can easily be removed from its secured location within the case for use in an optimal ergonomic position or as a tablet during presentations.
The professional high-performance image processing is adaptable to individual users’ and material-specific requirements and ensures outstanding image quality. The integrated diagnosis software provides global, rapid and inexpensive consultations via e-mail or ORCA cloud services in compliance with applicable regulations.
|Leonardo DR mini II|| |
mobile X-ray system with wireless CsI flat panel detector 12" x 10",
|Leonardo DR mini II|| |
mobile X-ray system with wireless CsI flat panel detector 14" x 17",
|Ingeniously designed|| |
wireless and battery-powered – designed for use in confined spaces as well as in the field
battery-operated system can run continuously for over four hours – providing flexibility and maneuverability in difficult environments

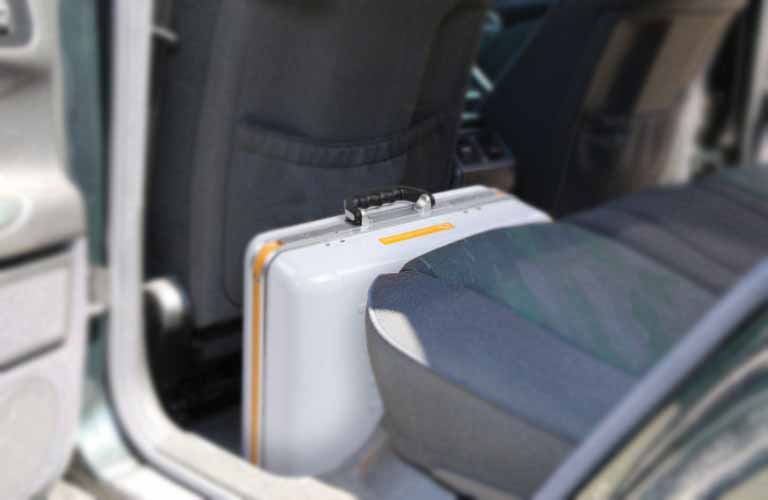

weighing in at approx. 8.9 kg, the case fits behind any car seat

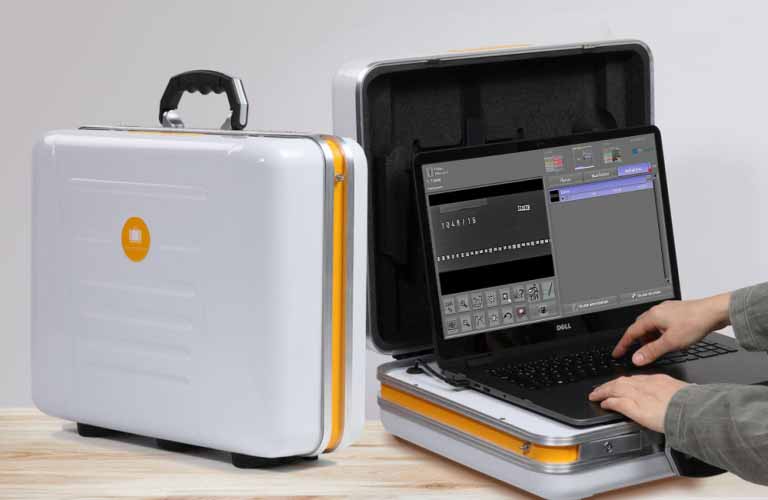

17" laptop can easily be removed from its secured location within the case – for use in an optimal ergonomic position or as a tablet during presentations
|Excellent||high-quality X-ray detector based on a caesium iodide (CsI) scintillator – top image quality even at low X-ray doses|
self-explanatory OR Technology acquisition and control software ORinspect for non-destructive testing
shortly after taking the shot (6 - 8 seconds), the X-ray image is already available for viewing and diagnostic evaluation
integrated acquisition and control software software offers a worldwide, fast and cost-effective exchange of information (via cloud or email)
The heart of each Leonardo NDT system is the ORinspect X-ray acquisition and control software developed by OR Technology.
The software controls X-ray generators and X-ray units of various manufacturers, providing a smooth and structured workflow. A intuitive and user friendly GUI (graphical user interface), operated by touchscreen or mouse, completes the system.
The professional image processing can be adapted to individual user needs and offers outstanding image quality. It has been specially developed to enable material-specific optimisation, guaranteeing the highest quality of X-ray images.
Our Leonardo cases are manufactured exclusively in Germany. Final assembly and quality control are realised at our production facility in Rostock.This way we can guarantee the best product quality for you.
Software and product development are carried out in-house at OR Technology, too, since current developments show that we need to think and act in managable ways. You benefit from an independent supplier who provides you with everything from a single source, ensures service and support for the entire life of the X-ray systems and guarantees manageable delivery times.
Our hard-working employees from the production department during the final assembly of the Leonardo DR mini II cases:
Here you can find a list of the available X-ray detectors. Different types and sizes of X-ray detectors allow an individual configuration of the system.
Product information X-ray suitcase Leonardo DR mini II
The compact suitcase solution - the newest model in our Leonardo series combines X-ray detector technology with a high-performance acquisition and control software
Product overview Strong Workmate for Non-Destructive (RT)
Digital systems from OR Technology deliver X-ray images of the highest quality to detect even the smallest deviations during daily inspections.
Product information protection box for X-ray detector XenOR 24CW
This protective housing has been especially developed for the XenOR 24CW X-ray detector in order to protect it from external impacts and strong concussions. The robust housing comprises numerous protective layers and a circumferential rubber surround so that impacts can be absorbed and the load rating increased.
Amadeo P - Practical portable and light-weight generators
dicondePACS® ®MobileView - the web-based viewer for mobile devices
dicondePACS® - the sophisticated and high-tech image management solution
|Compact and light suitcase|| |
Total weight: 8.9 kg (including the complete suitcase, notebook, power supply and electronics), size: ca. 49 x 39.5 x 18.5 cm
Convertible 2-in-1 premium notebook with large monitor, newest 8th generation Intel® Core™ i7 processor, 16 GB RAM, 17,3“ full HD touchscreen monitor, keyboard with background lighting, SSD hard disk 512 GB
|Flat panel detector CsI 24 x 30 cm (10“ x 12“) wireless*|| |
Wireless X-ray imaging!
|Flat panel detector CsI 35 x 43 cm (14" x 17") wireless*|| |
Wireless X-ray imaging!
* Various types of flat panel on request
|Leonardo DR mini II software package|| |
with ORinspect, the professional acquisition and control software for the non-destructive X-ray testing with modern graphical user interface with basic software included:
|Extension for battery operation|| |
Allows working without power connection up to an average of 4-6 hours in normal mode
|Shoulder strap for X-ray case|| |
Easy-to-use, detachable strap for convenient transport
|Wireless synchronisation|| |
for any X-ray generator
|Protective case for detector|| |
Available for all three versions
Available with and without grid
|Carrying case for 35 x 43 cm (14" x 17") detector|| |
Available for DR mini II  and DR mini II
|Amadeo P high frequency X-ray system|| |
Portable high frequency X-ray units for high-quality X-ray images: Low weight and user-friendly operation enable various fields of application in small animal practices and equine clinics
