The portable backpack X-ray solution for security operations

OR Technology‘s portable and digital system delivers high-quality X-ray images ideally suited to detect even the smallest deviations during security operations. With the Leonardo DR nano stowed in its backpack, you can reach even the most inaccessible locations easily and quickly. The Leonardo DR nano is ideal for mobile, digital radiography during anti-terrorism measures, forensic science investigations and civil defence activities.

Wireless, compact, lightweight, well-stowed and excellent image quality all describe the portable Leonardo DR nano system. The system weighs only approx. 9 kg and consists of two components: a wireless X-ray detector and a laptop/tablet PC plus accessories. The laptop (optionally tablet PC) complies with the latest standards and is equipped with the professional acquisition and control software, ORsecure. The Leonardo‘s straightforward user interface makes it easy for staff to generate excellent X-ray images. The unit is extremely versatile due to its low weight, compact design and practical carrying case.




nach oben

Industrial radiography with X-ray system in backpack for radiographic testing RT



nach oben

One version of the Leonardo DR nano system are available:

Leonardo DR nano

mobile X-ray system with wireless X-ray detector, format 35x43cm

nach oben

Features & Benefits of the Leonardo DR nano System

Wireless X-ray imaging

Quickly deployable and hassle free

The wireless X-ray detector is available in one size (14 x 17 inches). When used together with a battery-powered HF X-ray generator, X-ray imaging is completely wireless.

The smallest and lightest DR system

Easy to transport, quick to set up

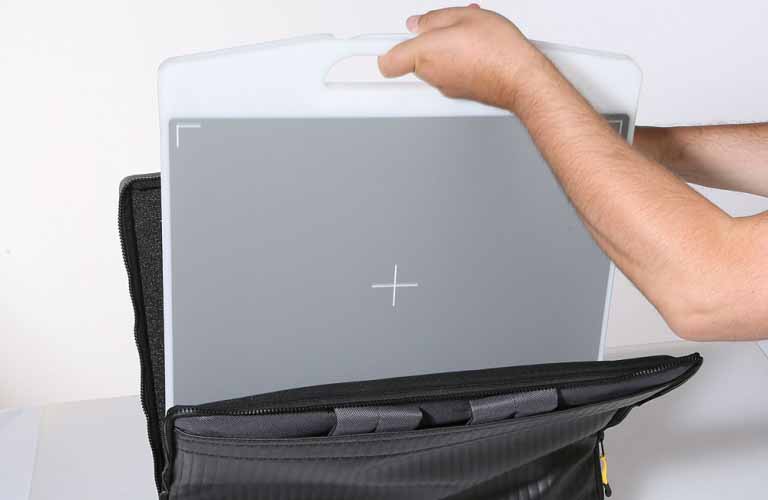

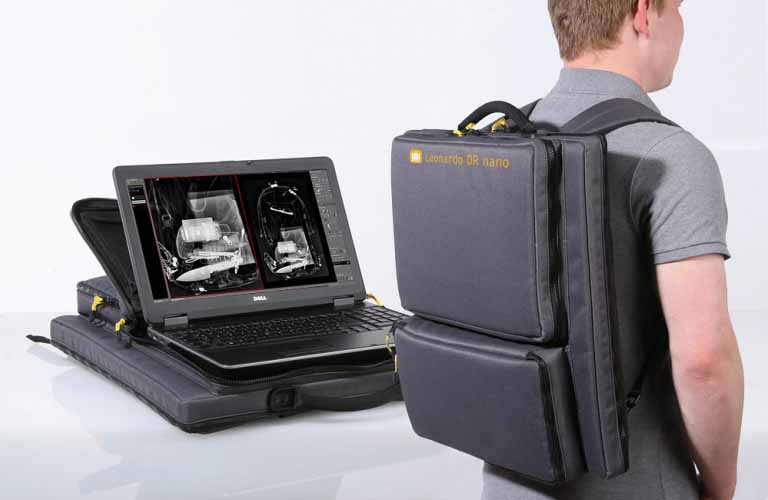

The extremely compact Leonardo DR nano is stowed in a well-designed and sturdy carrying case (also functions as a backpack). Weighing just under 8 kg (including laptop, accessories and detector), the entire unit can easily be carried to remote locations. Portable battery-operated X-ray generators (> 6.8 kg) make the system fully operable in the field. Once on site, the Leonardo DR nano can be assembled quickly and easily.

Perfectly stowed

Well organized and safe for transport

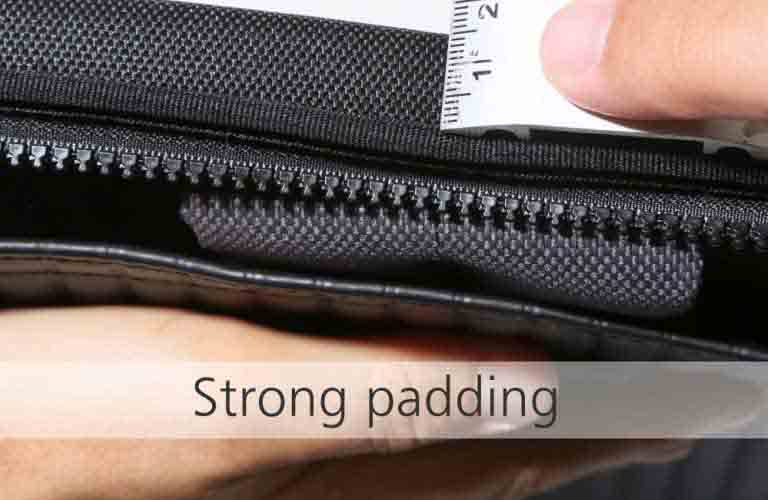

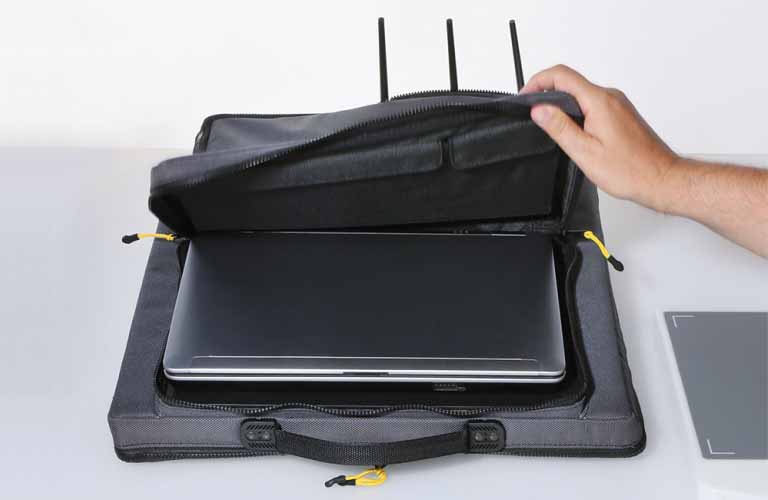

All components are stowed in custom-fitted and sealable compartments in the lightweight backpack. All-round padding offers shock protection to the flat panel detector and laptop.

Excellent image quality

Fantastic images thanks to state-of-the-art technology

The wireless detector boasts outstanding image quality with up to 5 lp/mm resolution.


Quick patient processing and well-documented workflow

X-ray images are available for viewing and evaluation within 6-8 seconds of triggering.


Straightforward handling even for unspecialised staff

ORsecure, the professional acquisition and control software for radiographic testing, sports an intuitive and modern graphical user interface. All examinations are conducted comfortably at a single monitor.

Always on call

The integrated acquisition and control software provides global, rapid and inexpensive consultations (via e-mail or cloud services) in compliance with safety and privacy regulations. The only requirement is an internet connection.

nach oben

ORsecure: Professional acquisition and control software for radiographic inspections

PACS Basispaket Security

The heart of each Leonardo security system is the ORsecure acquisition and control software developed by OR Technology.

The software controls X-ray generators and X-ray units of various manufacturers, providing a smooth and structured workflow. A intuitive and user friendly GUI (graphical user interface), operated by touchscreen or mouse, completes the system.

The professional image processing can be adapted to individual user needs and offers outstanding image quality. It has been specially developed to enable application-specific optimisation, guaranteeing the highest quality of X-ray images.

[more information...]


nach oben

X-ray detectors for Leonardo security systems

digital xray detectors

Here you can find a list of the available X-ray detectors. Different types and sizes of X-ray detectors allow an individual configuration of the system.

[to the overview...]

nach oben

Any further questions?

Is the Leonardo DR nano the right digital, mobile X-ray unit for you?
Let's find out together.
Icon - call us+49 381 36 600 500 Icon - write us a
OR Technology - Call our Sales-Team


nach oben
  • Product information portable X-ray backpack Leonardo DR nano for security sector
    The portable X-ray backpack system for radiographic testing in the security sector (e.g. EOD / IOD) - only with flat panel detector and tablet PC

  • Brochure Digital radiography for targeted operations against terrorism, for civil defense and forensic science
    The security industry is a globally growing market that includes many business fields, public authorities, embassies, municipal bomb squads, airports or corporations use radiography to examine suspicious objects in different locations

  • Product information protection box for 14x17 inch detector
    This protection box protects 14x17 inch wireless X-ray detectors from external shocks and strong vibrations. The housing contains several protective layers to absorb shocks and increase the load capacity.

nach oben

Optional add-ons

Amadeo P

Amadeo P  Practical portable and light-weight generators
Due to their low weight, user-friendly operation and integrated interface they can be used in various fields of application for customs services, border patrol, forensic scientists, counter-intelligence agencies and private security companies.

diconde PACS - the web-based viewer for mobile devices security

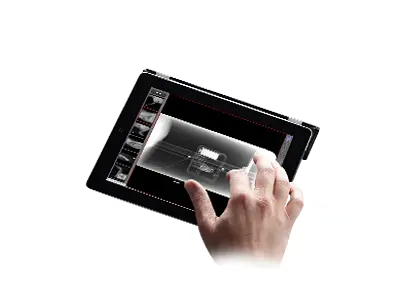

dicosPACS®MobileView – the web-based viewer for mobile devices
The web-based viewer contains all the basic functions for viewing images. You can view images virtually with any browser on mobile devices. dicosPACS®MobileView offers a previously unknown degree of mobile freedom, the images are available anywhere.

diconde PACS – die zeitgemäße und ausgereifte High-Tech-Lösung für intelligentes Bildmanagement

Digital image management for mobile X-ray technology in the security sector (e.g. EOD/IOD)
The dicosPACS® software includes the acquisition, processing, transfer and archiving of image material. Thanks to the variety of functions with many special solutions, dicosPACS® enables you to set up your work environment individually and optimally in the service of safety.

nach oben

Technical specifications for Leonardo DR nano

Carrying case (backpack) and accessories bag
  • For 14" x 17" detectors with and without protection box
  • Outer dimensions: 50 x 49 x 12 cm
  • Well-padded, with a sturdy protective frame and shoulder strap
  • Water-repellent for rain protection
  • All important accessories have their own sealable, custom-fit compartments
Tablet PC or laptop
  • SSD hard disk
  • 17" or 15" high-resolution display depending on equipment
  • Intel ® CPU
  • at least 8 GB RAM
  • USB 3.0
  • Wireless LAN
Direct radiography detector 35 x 43 cm (14" x 17") wireless

Wireless X-ray imaging!

  • Fits into existing Bucky tray without modifications (in place of  X-ray film cassettes)
Battery charger and rechargeable batteries
  • Fast-charging, long-lasting batteries plus battery charger
  • Battery charge time: 3 hours
ORsecure software package

Professional console software with modern graphical user interface integrated:

  • ORsecure DICOM Send SCU
  • ORsecure DICOM image CD
  • ORsecure Cognition Optimised Processing

Optional components for the Leonardo DR-nano system

X-ray detector mounting system VersariX
  • Height-adjustable, suited for objects in standing position
  • X-ray detector can be attached with or without protective casing
  • Detector holder (400g) fits in Leonardo carrying case
Detector casing
  • Protective casing for 14" x 17" detector
  • Max. load for entire surface: 1040 kg
  • Max. point load: 146 kg/mm
Protective case for detector

Available in one size:

  • For 35 x 43 cm (14“ x 17“) detectors

Available with and without grid

Golden Engineering XR200 battery-operated with pulse technology

150 kV pulse X-ray device ideal for radiological testing, unit‘s high powered battery and low overall weight guarantee easy handling

  • includes hard shell carrying case and remote cable
  • peak output 150 kV, 2.6 mR – 4.0 mR per pulse, focal spot 3.0 x 3.0 mm
  • dimensions 318 x 115 x 190 mm, weight 5.5 kg
Golden Engineering XR150 battery-operated

Portable battery-operated X-ray unit with pulse technology ideal for NDT and the security sector

  • includes hard shell carrying case and remote cable
  • peak output 150 kV, 1.0 mR per pulse, focal spot 3.0 x 3.0 mm
  • dimensions 273 x 104 x 80 mm, weight 2.1 kg
Golden Engineering XRS-3 battery-operated

Portable battery-operated X-ray unit with pulse technology ideal for NDT and the security sector

  • includes hard shell carrying case and remote cable
  • peak output 270 kV, 2.6 mR – 4.0 mR per pulse, focal spot 3.0 x 3.0 mm
  • dimensions 356 x 115 x 190 mm, weight 5.4 kg
Mobile X-ray tables and stands

A wide range of modern X-ray tables and carrying systems is available. Feel free to contact us for more information!
