Complete X-ray package for digital radiography on suspicion of bodypacking

The lightweight, complete digital X-ray solution Amadeo M-DR mini is ideal for rapid radiological diagnostics. The razor-sharp X-ray images can be viewed, enlarged and processed using the system's integrated X-ray software for the human sector. The mobile all-rounder contains all the necessary components and is very easy to operate.

The practical X-ray assistant integrated in the X-ray software for the correct adjustment technique enables even untrained personnel to carry out precise X-ray examinations.

The system was primarily designed for mobile use and can be easily transported due to its low overall weight and compactness. The lightweight all-rounder can be easily pulled over steps, can be turned on the spot without lifting - an advantage in confined spaces and lifts - and is stable on sloping surfaces. The large, sturdy wheels make it easy to manoeuvre.

The Amadeo M-DR mini runs entirely on battery power and, with an operating time of 8 hours, enables up to 200 high-resolution X-ray images to be taken without recharging. This reduces the need for frequent battery changes and guarantees reliability even in remote areas. Thanks to its outstanding image quality, it delivers brilliant diagnostic results.

Thanks to the customised design, swivelling the generator arm is much more flexible and can be done with just one hand. The system is equipped with a digital X-ray detector, an X-ray generator and an image processing station including globally proven acquisition software with a practical X-ray assistant and optional AI-supported diagnostic tools.


In addition to the international certification standards (ISO, CE, FDA, MDSAP, HSA, etc.), the system is registered with NATO code CJ168 and PIN no. 6525-12-396-0317










nach oben

X-ray machine for targeted operations against terrorism, for civil defense and forensic science





nach oben

One versions of the Amadeo M-DR mini system is available:

Amadeo M-DR mini:

Mobile X-ray system with wireless X-ray detector

nach oben

Features & Benefits of Amadeo M-DR mini Systems

Lightweight, mobile and ultimately versatile

The Amadeo M-DR mini is one of the most lightweight portable wireless X-ray systems available worldwide. The sturdy system has an integrated DR X-ray detector and is designed for use in diverse conditions. The Amadeo M-DR mini is the best choice for X-raying whenever lightweight equipment is a must.

Benefit: Versatile and portable

Works even without electricity

This mobile X-ray unit works entirely on battery power and therefore offers maximum mobility. With one battery charge of the X-ray generator, up to 200 high-resolution X-ray images and an operational readiness of 8 hours are possible.

Your advantage: You are completely independent of the power supply and can start your valuable work immediately.



Advanced industrial design

The innovative and lightweight construction „Made in Germany“ combines excellent stability, mechanical sturdiness and low weight. Its sophisticated design makes the system easy to clean. The laptop and X-ray unit are stored in splash-proof compartments. All electronic components are sealed to ensure safe transport, and, where possible, cables are routed internally. The height of the tube head can easily be adjusted and freely rotated.

Benefit: A functional and minimalistic design gives rise to a lightweight unit

Easy handling and shipping

The Amadeo M-DR mini is easy to transport and fits into standard hatchback cars. The system can readily be pulled over steps, swivelled in all directions (a huge advantage in confined spaces and elevators) and does not tip over on uneven ground. Its large and sturdy wheels permit effortless movement in all terrain.

The integrated block brakes ensure safe working conditions. The entire system can be set up and ready for use in less than two minutes.

Benefit: Easy to transport and quickly deployable in an emergency

Safe working environment

Due to excellent lead shielding, the radiation leakage from the housing of the Amadeo M-DR mini is minimal. During the X-ray process, the control area is less than 1.5 m*.

Benefit: Outside of the small control area, no further radiation protection measures are required

Reliable

The Amadeo M-DR mini X-ray system functions reliably under extreme climatic conditions such as high humidity and large temperature fluctuations. For this reason, the products from this series are preferred by first aid services, military corps, research ships and offshore platforms etc.

Benefit: Professional performance under extreme climatic conditions

Short cycle time

Despite its small size, the high-frequency generator of the Amadeo M-DR mini has a high power output. At full load, the system produces up to six images per minute – a top performance rate for such units*.

Benefit: Short exposure times result in high throughput

NATO Stock Number

6525-12-396-0317

* depending on the X-ray tube
nach oben

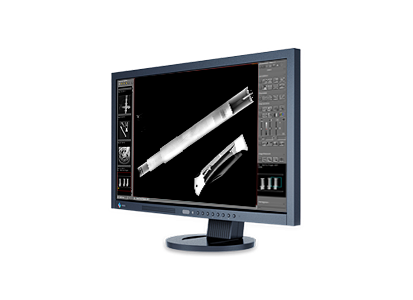

ORsecure: Professional acquisition and control software for radiographic inspections

PACS Basispaket Security

The heart of each Leonardo security system is the ORsecure acquisition and control software developed by OR Technology.

The software controls X-ray generators and X-ray units of various manufacturers, providing a smooth and structured workflow. A intuitive and user friendly GUI (graphical user interface), operated by touchscreen or mouse, completes the system.

The professional image processing can be adapted to individual user needs and offers outstanding image quality. It has been specially developed to enable application-specific optimisation, guaranteeing the highest quality of X-ray images.

[more information...]




nach oben

Our mobile X-ray systems "Made in Germany

Our lightweight, mobile Amadeo M-DR mini X-ray system is an in-house development by OR Technology and is manufactured entirely in Germany. In our production hall at the Rostock location, the final assembly as well as the quality inspection is carried out by our dedicated employees. This is the only way we can guarantee the best product quality for you. Software and product development also take place in-house at OR Technology, because current developments show that we have to think in terms of manageable cycles. You benefit from an independent supplier who provides you with everything from a single source, ensures service and support for the entire life of the X-ray systems and guarantees manageable delivery times.

Our highly qualified employees from the production department during the final assembly of the Amadeo M-DR mini complete solutions:

Production of the Amadeo M mini in RostockProduction of the Amadeo M mini in RostockAmadeo M mini mobile X-ray system - Made in Germany
nach oben

X-ray detectors for Amadeo M-DR mini systems

dicomPACS X-ray software

Here you can find a list of the available X-ray detectors. Different types and sizes of X-ray detectors allow an individual configuration of the system.

[to the overview...]

nach oben

Any further questions?

Is the Amadeo M-DR the right mobile X-ray system for your use at the port, customs or national borders?
Let's find out together.
Icon - call us+49 381 36 600 500 Icon - write us a mailinfo@or-technology.com
Contact
OR Technology - Call our Sales-Team
nach oben
  • Product information portable X-ray system Amadeo M-DR mini
    The portable and fully digital X-ray system for first aid services, intensive care units, emergency departments, home health care, as well as ships and mobile hospitals (e.g. container solutions)

  • Brochure Digital radiography for targeted operations against terrorism, for civil defense and forensic science
    The security industry is a globally growing market that includes many business fields: public authorities, embassies, municipal bomb squads, airports or corporations use radiography to examine suspicious objects in different locations

  • Product information multiplex wood transport box for the Amadeo M-DR mini X-ray system
    The multiplex transport box is very weatherproof and durable and offers optimal protection during the transport of the Amadeo M-DR mini. The box can be loaded without having to lift the X-ray system.

  • Product information protection box for 14x17 inch detector
    This protection box protects 14x17 inch wireless X-ray detectors from external shocks and strong vibrations. The housing contains several protective layers to absorb shocks and increase the load capacity.

  • Product information plastic transport box for Amadeo M-DR mini X-ray system
    The plastic transport box offers optimal protection for transporting the Amadeo M mini. Loading the system into the box is easy thanks to the integrated ramp; there is no need to lift the system at all.

nach oben

Optional add-ons

dicomPACS®MobileView – the web-based viewer for mobile devices

dicomPACS®MobileView - the web-based viewer for mobile devices
The web-based viewer contains all the basic functions for viewing images. You can view images virtually with any browser on mobile devices. dicomPACS®MobileView offers doctors and nursing staff a previously unknown degree of mobile freedom in the workplace inside and outside of hospitals or practices, with the radiological image material available from anywhere.

Cloud ORCA – storage of medical data (images and documents) as well as sharing via the internet

ORCA – storage of medical data (images and documents) as well as sharing via the internet
ORCA® (OR Technology Cloud Archiving) is a cloud-based platform specially designed for storing, viewing and sharing medical images and documents. ORCA offers two exciting applications: ORCA Archive and ORCA Share.

dicompacs – the sophisticated and high-tech image management solution

dicomPACS® - the sophisticated and high-tech image management solution
With dicomPACS® all images generated by digital X-ray, CT, MRI and ultrasound devices, as well as diverse documents (e.g. doctor's letters, medical findings, medical history, faxes) are stored in a digital patient folder and readily accessible.


nach oben

Technical details for Amadeo M-DR mini (standard configuration)

Components of the mobile X-ray unit
  • Dimensions: 56.5 x 136.5 cm; extending to 124.6 x 195.5 cm
  • Weight: depending on the configuration



Stand
  • Advanced industrial design
  • Designed and made in Germany
  • Compartments for notebook and X-ray detector
  • Very lightweight, sturdy and robust
  • Can easily be pulled over stairs
  • High tipover stability in uneven terrain
  • Maximum height: approx. 187 cm above the floor with X-ray tube extending 55 cm
SIUI SR-8230S high-frequency generator
  • 5 kW, 110 kV / 100mA
  • Battery operated
  • 200 images at full power
  • 8h ready for operation
  • Touchscreen with more than 300 preset parameters



Direct radiography detector 14" x 17" wireless
  • Wireless X-ray imaging
  • Fast charging, long life batteries
Laptop with dicomPACS®DX-R acquisition console

Professional console software with modern graphical user interface, integrated X-ray positioning guide and the following modules:

  • dicomPACS®DX-R DICOM Send SCU
  • dicomPACS®DX-R DICOM Patient CD
  • dicomPACS®DX-R Cognition Optimised Processing

Optional components forAmadeo M-DR mini systems

DAP meter

Dose area product meter available

Transport case

Plastic transport box or multiplex wood transport box

VersariX portable X-ray detector mounting system
    Flat panel holder folded for minimal space requirement, weighs only 400g
