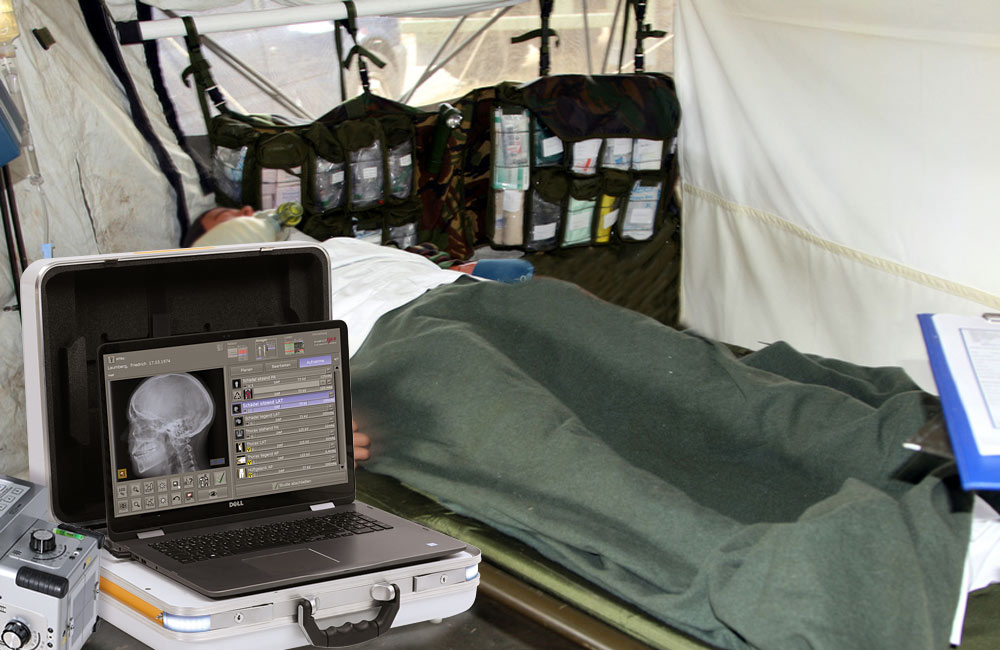

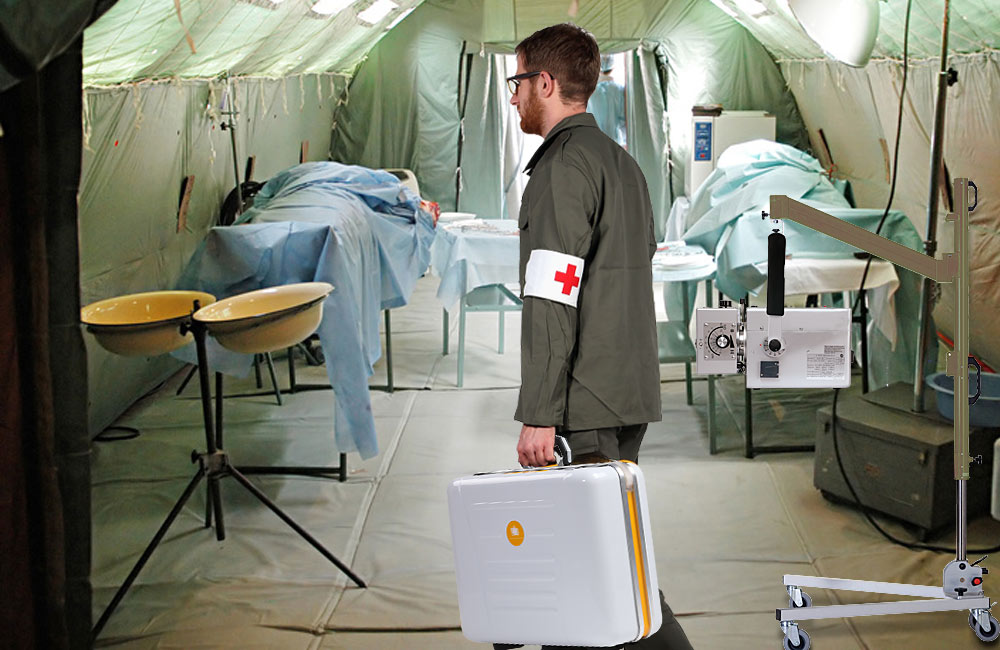

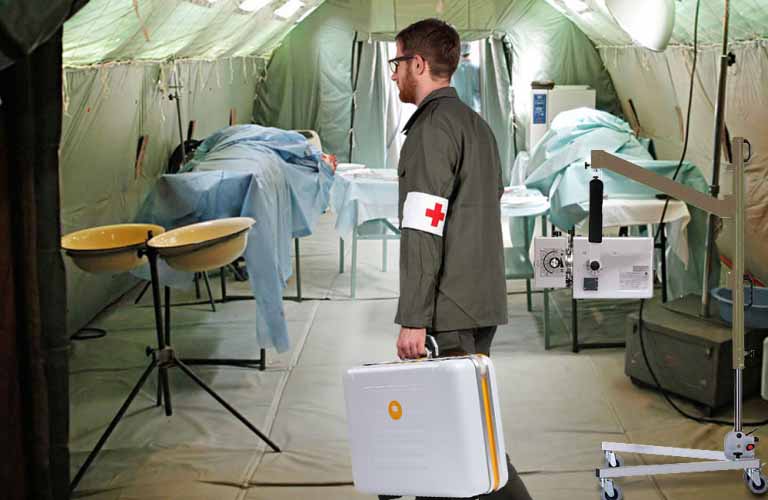

The lightweight X-ray suitcase for field and on-board hospitals

The highly functional X-ray suitcase Leonardo DR mini II - the latest development of the Leonardo series - combines X-ray detector technology with powerful acquisition and diagnosis software. Weighing only approx. 8.9 kg, the compact suitcase with the shock-absorbing, dirt-repellent plastic coating is one of the lightest X-ray systems worldwide. Leonardo DR mini II can also be easily transported with the shoulder strap supplied. The X-ray case is used both in small medical wards and for outpatient care of patients in field hospitals.

The X-ray suitcase is quickly ready for use and easy to operate. A built-in 17" premium notebook with touch screen and high screen resolution as well as the integrated acquisition and diagnosis software guarantee an excellent image display. The X-ray suitcase has two large LEDs clearly visible even from a distance of several meters. These LEDs indicate the software status, such as "Ready to expose". In addition, a signal tone sounds when the status changes. The notebook can be easily removed from the suitcase, moved into an ergonomic working position and used as a tablet for presentation purposes.

The straightforward operation of the system and the integrated acquisition and diagnostic software by OR Technology make it easy even for less radiologically trained personnel to take optimal X-ray images. In addition, the integrated X-ray assistant provides videos to support the correct positioning of the patients during the X-ray process. The possibility of diagnosis supported by an automatic, AI-assisted thorax screening (by a qualified third-party provider) is also included in the software (optional).

nach oben

Two versions of the Leonardo DR mini II system are available:

Leonardo DR mini II

portable X-ray system with wireless CsI flat panel detector 12" x 10",
format 24 x 30 cm

Leonardo DR mini II

portable X-ray system with wireless CsI flat panel detector 14" x 17",
format 35 x 43 cm

nach oben

Features & Benefits of the Leonardo DR mini II System

Ingeniously designed

wireless and battery-powered – designed for use in confined spaces as well as in the field

Wireless

battery-operated system can run continuously for over four hours – providing flexibility and maneuverability in difficult environments

Compact

weighing in at approx. 8.9 kg, the case fits behind any car seat

Practical

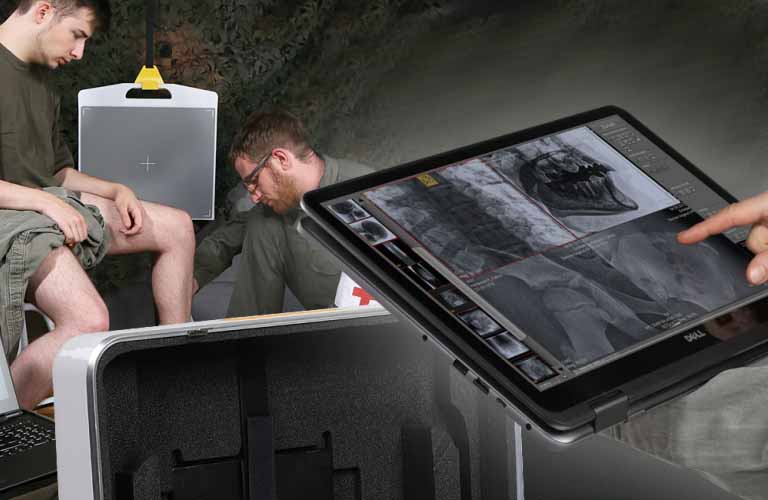

17" laptop can easily be removed from its secured location within the case – for use in an optimal ergonomic position or as a tablet during presentations

Efficient

integration into your existing patient management system – patient data at the push of a button

Excellent high-quality X-ray detector based on a caesium iodide (CsI) scintillator – top image quality even at low X-ray doses
User-friendly

self-explanatory OR Technology acquisition software dicomPACS®DX-R including free special measurement functions - the possibility of diagnosis supported by an automatic, AI-assisted thorax screening (by a qualified third-party provider) is also included in the software (optional).

Fast

shortly after taking the shot (6 - 8 seconds), the X-ray image is already available for viewing and diagnostic evaluation

Cleverly designed

fully integrated radiographic positioning guide for all examinations in human medicine with comprehensive notes, photographs, videos and sample X-ray images

Accessibility

integrated diagnostic software offers a worldwide, fast and cost-effective exchange of information via email

One of a kind

Safe and quick registration of emergency patients and user-defined macros for recurring examinations, e.g. thorax screenings

Visible

Software status display via large 4-colour LEDs on the corners of the suitcase

Audible

Audio output on status change

Control remoto

Puedes utilizar un terminal móvil, como tu smartphone, como mando a distancia para planificar y ver las imágenes a través de una aplicación especial. Sujeta a su brazo o al generador de rayos X, también sirve como un elemento de control que permite al usuario obtener una primera impresión de las imágenes tomadas sin tener que moverse a la estación de trabajo de consola (tablet PC). Puede encontrar más información sobre la aplicación Remote Control aquí.

nach oben

Acquisition and diagnostic software for X-ray images

DXR human

At the heart of each Leonardo system is the dicomPACS®DX-R acquisition and diagnostic software with the integrated X-ray positioning guide developed by OR Technology.

The software controls X-ray generators and X-ray units of various manufacturers, providing a smooth and structured workflow. A simple and user friendly GUI (graphical user interface), operated by touchscreen or mouse, completes the system.

The professional dicomPACS®DX-R image processing can be adapted to individual user needs and offers outstanding image quality in human and veterinary medicine. It has been specially developed to enable organ specific viewing quality optimisation, guaranteeing the highest quality of X-ray images.

[more information...]



nach oben

Nuestras maletas Leonardo "Made in Germany"

Nuestras maletas Leonardo se fabrican exclusivamente en Alemania. El montaje final y el control de calidad se realizan en nuestra nave de producción de Rostock. Sólo así podemos garantizarle la mejor calidad del producto.

En OR Technology, el desarrollo de software y productos también se lleva a cabo dentro de la empresa El desarrollo de software y productos también se lleva a cabo dentro de OR Technology, porque los desarrollos actuales demuestran que debemos pensar en términos de ciclos manejables. Usted se beneficia de un proveedor independiente que le proporciona todo de una sola mano, asegura el servicio y la asistencia durante toda la vida útil de los sistemas de rayos X y garantiza unos plazos de entrega manejables.

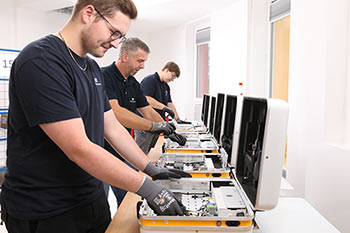

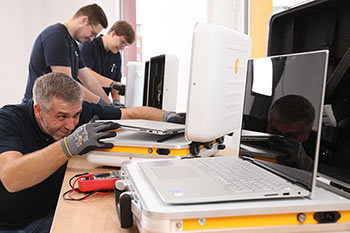

Nuestros esforzados empleados del departamento de producción durante el montaje final de las cajas Leonardo DR mini II:

Producción de los sistemas de rayos X Leonardo Montaje final de las minicajas Leonardo II Montaje de los sistemas de rayos X Leonardo mini II
nach oben

X-ray detectors for Leonardo mini II systems

digital x-ray detectors

Here you can find a list of the available X-ray detectors. Different types and sizes of X-ray detectors allow an individual configuration of the system.

[to the overview...]

nach oben

¿Tiene alguna pregunta?

¿Es el Leonardo DR mini II la unidad móvil de rayos X adecuada para usted?
Averigüémoslo juntos.
Icon - llámenos+49 381 36 600 500 Icon - Envíenos su solicitudinfo@or-technology.com
Contacte con
OR Technology - Contacte con



nach oben
  • Product information X-ray suitcase Leonardo DR mini II
    The compact suitcase solution - the newest model in our Leonardo series combines X-ray detector technology with a high-performance acquisition and diagnostic software

  • Brochure Digital X-ray for mobile and inpatient medical facilities
    Portfolio for military emergency medical services: Mobile digital all-in-one system for your medical faciIity or field hospital, portable digital systems as an upgrade kit for already existing mobile or stationary X-ray equipment, stationary digital X-ray complete system

  • Product information protection box for X-ray detector XenOR 24CW
    This protective housing has been especially developed for the XenOR 24CW X-ray detector in order to protect it from external impacts and strong concussions. The robust housing comprises numerous protective layers and a circumferential rubber surround so that impacts can be absorbed and the load rating increased.

nach oben

Optional add-ons

Amadeo P

Amadeo P  Practical portable and light-weight generators
Due to their low weight, user-friendly operation and integrated interface they can be used in numerous applications in practices, clinics and for out-patient purposes.



PACS MobileView

dicomPACS®MobileView the web-based viewer for mobile devices
The web-based viewer contains all the basic functions for viewing images. You can view images virtually with any browser on mobile devices. dicomPACS®MobileView offers doctors and nursing staff a previously unknown degree of mobile freedom in the workplace inside and outside of hospitals or practices, with the radiological image material available from anywhere.



PACS Software

dicomPACS® the sophisticated and high-tech image management solution
With dicomPACS® all images generated by digital X-ray, CT, MRI and ultrasound devices, as well as diverse documents (e.g. doctor's letters, medical findings, medical history, faxes) are stored in a digital patient folder and readily accessible.



Versarix

VersariX® the portable mounting system for X-ray detectors
VersariX® is the portable flat panel detector mounting system for X-ray examinations and weighing only some 400 grams, it can be attached anywhere, like on room or wardrobe doors, walls, trees etc. The sturdy hook used to suspend the X-ray flat panel detector allows virtually stepless height adjustment.



Wandstative Wandhalterungen


Trolley stands and cassette holder for digital X-ray
The variety of patient sizes poses a major challenge for manufacturers of X-ray technology and accessories. Trolley stands and casette holder must be adapted to their patients. A range of trolley stands and cassette holders can be found here.






nach oben
  • Caso de rayos X de referencia Leonardo DR mini II - Servicio móvil digital de rayos X de la Costa del Golfo Radiología Diagnósticos limitados
    A. Scarlett: "Para mí es una preocupación importante mejorar la atención médica de los pacientes de forma innovadora y creativa y dar nuevos impulsos. Con su sofisticado diseño, facilidad de uso y funciones para la teleradiología, el maletín de rayos X portátil Leonardo DR mini II me convenció inmediatamente".

nach oben

Technical specifications for Leonardo DR-mini II

Compact and light suitcase

Total weight: 8.9 kg (including the complete suitcase, notebook, power supply and electronics), size: ca. 49 x 39.5 x 18.5 cm, inclusive detachable strap for convenient transport

Notebook

Convertible 2-in-1 premium notebook with large monitor, newest 8th generation Intel® Core™ i7 processor, 16 GB RAM, 17,3“ full HD touchscreen monitor, keyboard with background lighting, SSD hard disk 512 GB

Flat panel detector 24 x 30 cm (10“ x 12“) wireless*

Wireless X-ray imaging!
Fits into an existing X-ray system without requiring modification (in conformity
with the X-ray film cassette), fast charging, long life batteries incl. battery charger

Flat panel detector 35 x 43 cm (14" x 17") wireless*

Wireless X-ray imaging!
Fits into an existing X-ray system without requiring modification (in conformity with the X-ray film cassette), fast charging, long life batteries incl. battery charger

* Various types of flat panel on request

Leonardo DR mini II software package

The dicomPACS®DX-R professional console software sports a modern graphical user interface, integrated radiographic positioning guide and the following modules:

  • dicomPACS®DX-R DICOM Send SCU
  • dicomPACS®DX-R DICOM Patient CD
  • dicomPACS®DX-R Cognition Optimised Processing
Extension for battery operation

Allows working without power connection up to an average of 4-6 hours in normal mode

Shoulder strap for X-ray case

Easy-to-use, detachable strap for convenient transport

nach oben

Optional components for the Leonardo DR mini II system

Wireless synchronisation

for any  X-ray generator

Protective case for detector

Available for all three versions

  • For 35 x 43 cm (14“ x 17“) detectors
  • For 24 x 30 cm (10“ x 12“) detectors

Available with and without grid

Carrying case for 35 x 43 cm (14" x 17") detector

Available for DR mini II [1417] and DR mini II [1417]
Dimensions: 55.5 x 49 x 6 cm

Amadeo P high frequency X-ray system

Portable high frequency X-ray units for high-quality X-ray images: Low weight and user-friendly operation  enable various fields of application in the outpatient and inpatient area

Wireless remote control

Possibility of wireless control of the digital X-ray system with the app "dicomPACS®DX-R remote control" via smartphone or tablet incl. display of the worklist, preview of the captured image to check the shot etc. - directly from the app a new shot can be planned

nach oben
Subject to technical modifications
