Military operations require reliable, quick, lightweight, portable and wireless equipment. That is where the Amadeo M-DR mini comes into play! The wireless, digital X-ray system is the complete solution for military emergency medical services.
During field operations, situations can arise that require rapid radiological diagnosis. With the compact Amadeo M-DR mini system, it is possible to obtain X-ray images not only of the extremities, but of all regions of the trunk, including thorax, spinal cord, abdomen and pelvis. The X-ray images can be generated rapidly and sent to a trusted radiologist via cloud services.
The system was developed with mobile use in mind and can easily be transported due to its low overall weight and compact build. The lightweight system can easily be pulled over steps, swivelled in all directions (a huge advantage in confined spaces and elevators) and does not tip over on uneven ground. Its large and sturdy wheels permit effortless movement.
Amadeo M-DR mini systems include essential components such as X-ray detector, X-ray generator and image processing station with our globally tested acquisition and diagnostic software package and integrated multimedia X-ray positioning guide for fine adjustments (depending on the version).
In addition to the international certification standards (ISO, CE, FDA, MDSAP, HSA, etc.), the system is registered with NATO code CJ168 and PIN no. 6525-01400.
|Amadeo M-DR mini:
Mobile X-ray system with wireless X-ray detector
|Lightweight, mobile and ultimately versatile
The Amadeo M-DR mini is one of the most lightweight portable wireless X-ray systems available worldwide. The sturdy system has an integrated DR X-ray detector (except for AX version) and is designed for use in diverse conditions. The Amadeo M-DR mini is the best choice for X-raying whenever lightweight equipment is a must.
Benefit: Versatile and portable
|Resumption of workflow after brief power outage or relocation
You are familiar with the problem: When a conventional X-ray system is relocated (e.g., to another room in an ICU) or there is a brief power outage, the system has to be switched on again to resume work. This costs valuable time and patience.
Not so with the Amadeo M-DR mini. Thanks to integrated batteries, the system is able to bridge power outages lasting several minutes. In the case of a brief power outage, you can simply continue working and take up to three additional X-ray images. This is an immeasurable advantage wherever a continuous power supply cannot be guaranteed, e.g., in disaster areas.
If the X-ray system has to be relocated frequently during use, as is often the case in an ICU, it is no longer necessary to shut down the system before cutting the power supply. Just pull the plug, relocate, and plug the system back in. Time consuming reboots are a thing of the past.
The batteries ensure that all electronic components remain ready for use for several hours. Should it be necessary to take X-ray images outside the reach of a wall socket, e.g., in the home care sector, simply plug in the X-ray system for approx. 60 seconds in advance. Afterwards, images such as thorax control X-rays can be taken while the patient is lying down.
Benefit: No delays after relocation and independence of reliable power supply
Our high-performance X-ray system provides the complete array of diagnostic radiology tools available in human medicine today.
Benefit: Mobile X-ray imaging from head to toe, including thorax and abdomen
|Advanced industrial design
The innovative and lightweight construction „Made in Germany“ combines excellent stability, mechanical sturdiness and low weight. Its sophisticated design makes the system easy to clean. The laptop and X-ray unit are stored in splash-proof compartments. All electronic components are sealed to ensure safe transport, and, where possible, cables are routed internally. The height of the tube head can easily be adjusted and freely rotated.
Benefit: A functional and minimalistic design gives rise to a lightweight unit

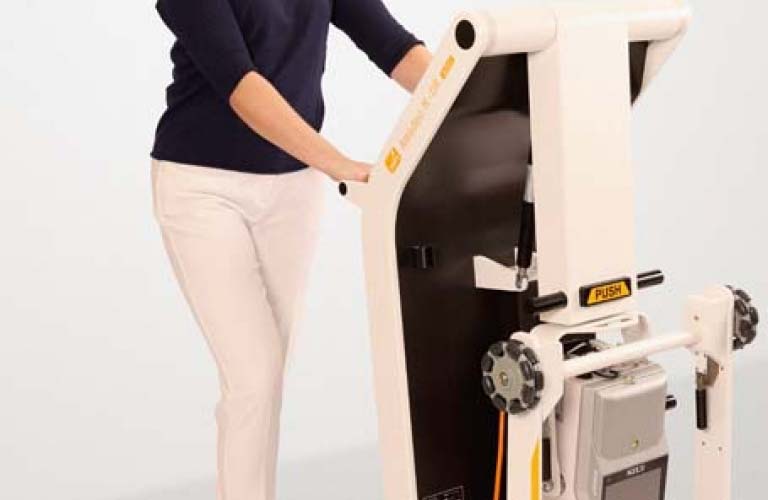

|Easy handling and shipping
The Amadeo M-DR mini is easy to transport and fits into standard hatchback cars. The system can readily be pulled over steps, swivelled in all directions (a huge advantage in confined spaces and elevators) and does not tip over on uneven ground. Its large and sturdy wheels permit effortless movement in all terrain. The integrated block brakes ensure safe working conditions. The entire system can be set up and ready for use in less than two minutes.
Benefit: Easy to transport and quickly deployable in an emergency
|Safe working environment
Due to excellent lead shielding, the radiation leakage from the housing of the Amadeo M-DR mini is minimal. During the X-ray process, the control area is less than 1.5 m*.
Benefit: Outside of the small control area, no further radiation protection measures are required
The Amadeo M-DR mini X-ray system functions reliably under extreme climatic conditions such as high humidity and large temperature fluctuations. For this reason, the products from this series are preferred by first aid services, military corps, research ships and offshore platforms etc.
Benefit: Professional performance under extreme climatic conditions
|Short cycle time
Despite its small size, the high-frequency generator of the Amadeo M-DR mini has a high power output. At full load, the system produces up to six images per minute – a top performance rate for such units*.
Benefit: Short exposure times result in high throughput
You can use a mobile terminal, such as your smartphone, via a special app as a remote control to plan and view images. Attached to your arm or the X-ray generator, it also serves as a control element allowing the user to gain a first impression of the images taken without having to move to the actual console workstation (tablet PC). You can find more information about the Remote Control app here.
The professional dicomPACS®DX-R acquisition software sports an intuitive and modern graphical user interface. All examinations are conducted comfortably at a single monitor. The possibility of diagnosis supported by an automatic, AI-assisted thorax screening (by a qualified third-party provider) is also included in the software (optional).
Benefit: Straightforward handling even for unspecialised staff
|NATO Stock Number
* depending on the X-ray tube
At the heart of each Amadeo system is the dicomPACS®DX-R acquisition and diagnostic software with the integrated X-ray positioning guide developed by OR Technology.
Our lightweight, mobile Amadeo M-DR mini X-ray system is an in-house development by OR Technology and is manufactured entirely in Germany. In our production hall at the Rostock location, the final assembly as well as the quality inspection is carried out by our dedicated employees. This is the only way we can guarantee the best product quality for you. Software and product development also take place in-house at OR Technology, because current developments show that we have to think in terms of manageable cycles. You benefit from an independent supplier who provides you with everything from a single source, ensures service and support for the entire life of the X-ray systems and guarantees manageable delivery times.
Our highly qualified employees from the production department during the final assembly of the Amadeo M-DR mini complete solutions:
Here you can find a list of the available X-ray detectors. Different types and sizes of X-ray detectors allow an individual configuration of the system.
Product brochure Amadeo M-DR mini
The portable and fully digital X-ray system for first aid services, intensive care units, emergency departments, home health care, as well as ships and mobile hospitals (e.g. container solutions)
Product overview Digital X-ray systems for mobile and stationary medical facilities
Mobile digital all-in-one system for your medical faciIity or field hospital · Portable digital systems as an upgrade kit for already existing mobile or stationary X-ray equipment · Stationary digital X-ray complete system
Product information plastic transport box for Amadeo M-DR mini X-ray system
The plastic transport box offers optimal protection for transporting the
Product information protection box for 14x17 inch detector
This protection box protects 14x17 inch wireless X-ray detectors from external shocks and strong vibrations. The housing contains several protective layers to absorb shocks and increase the load capacity.
dicomPACS® – the sophisticated and high-tech image management solution
Amadeo reference – Amadeo M-DR mini in use at "Mobile Medical Diagnostics" in Dublin
Managing director Mary Jones: “We use all PACS functions including archive. I like the simple wipe down design, protective storage for laptop and detector plate. Wheels allow easy 360 degree turn, stabilising wheels are also very functional. It is good value and image quality is excellent with very low radiation emissions.“
|Components of the mobile X-ray unit
|High-frequency generator Amadeo P-110/100H
|Direct radiography detector 14" x 17" wireless
|Laptop with dicomPACS®DX-R acquisition console
Professional console software with modern graphical user interface, integrated X-ray positioning guide and the following modules:
|High-frequency generator QP 400
|High-frequency generator P-100/35HB
Dose area product meter available
Plastic transport box or multiplex wood transport box
|Portable X-ray table, including carrying case
|Portable wall stand, including carrying case
|Mobile Z-Table for patient positioning
|VersariX portable X-ray detector mounting system
|Mobile stand for DR detectors and cassettes
|Wireless remote control
Possibility of wireless control of the digital X-ray system with the app "dicomPACS®DX-R remote control" via smartphone or tablet incl. display of the worklist, preview of the captured image to check the shot etc. - a shot can be rescheduled directly in the app
