The amazingly light, portable X-ray backpack system for veterinary radiography

Just sling the lightweight Leonardo DR nano X-ray backpack over your shoulder and head off to your next radiography examination! The Leonardo DR nano consists of only two components: a wireless X-ray detector and a laptop. Weighing just under 9 kg (including carrying case, laptop, accessories and flat panel detector), the system is one of the lightest portable X-ray solutions worldwide. It is ideal for ambulatory digital radiography, any time and any place. Getting tangled up in annoying cables is a thing of the past!

The Leonardo‘s straightforward user interface makes it easy for staff to generate excellent X-ray images. In addition, the integrated multimedia X-ray positioning guide assists with patient positioning. The Leonardo DR nano system is well suited for use in confined spaces. The X-ray unit and detector have a wireless connection to the acquisition and diagnosis software on the laptop. The X-ray detector and laptop can be stationed up to 10 m apart and still function optimally.

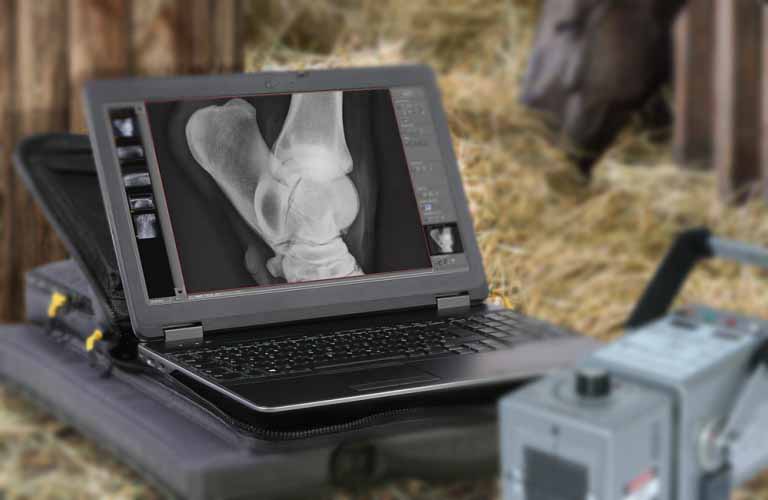

X-ray images are available for viewing on the laptop immediately after exposure and can be sent to the owner and veterinary experts via email or cloud services.

Thanks to its low weight and compact build, the Leonardo DR nano system can be used almost anywhere - in veterinary practices, equine clinics and teaching hospitals.



nach oben

Video: Lightweight, portable X-ray system in the backpack



nach oben

One version of the Leonardo DR nano system are available:

Leonardo DR nano

portabble X-ray backpack with wireless X-ray detector, format 35x43cm

nach oben

Features & Benefits of the Leonardo DR nano X-ray System

Wireless X-ray imaging

Quickly deployable and hassle free

The wireless X-ray detector is available in one sizes (14 x 17 inches). When used together with a battery-powered HF X-ray generator, veterinary radiography is completely wireless and portable.

The smallest and lightest DR system

Easy to transport, quick to set up

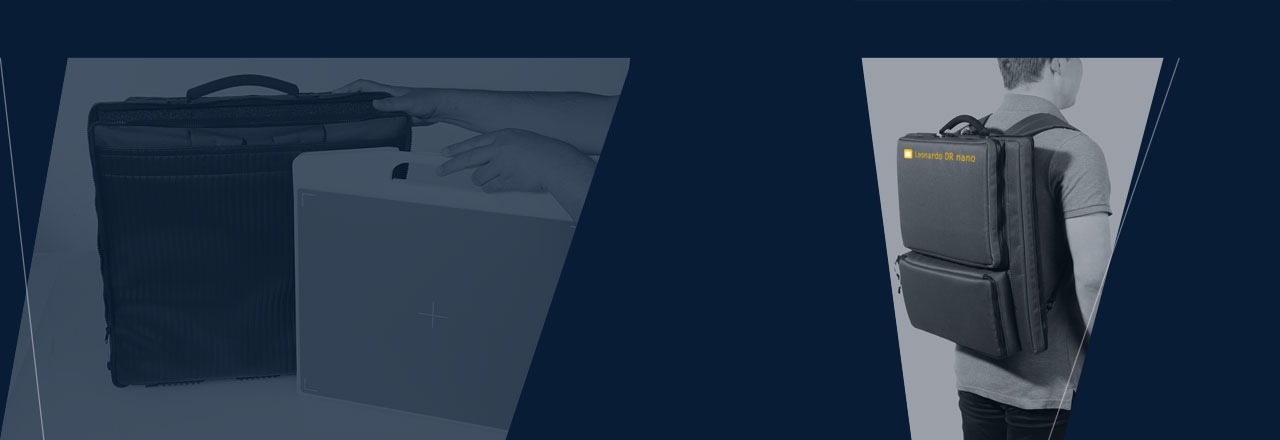

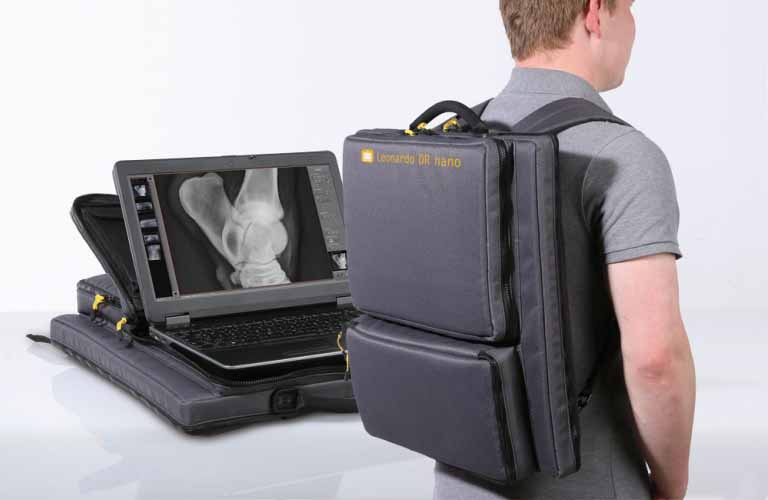

The extremely compact Leonardo DR nano is stowed in a well-desiged and sturdy backpack (also usable as a carrying bag). Weighing just under 9 kg (including laptop, accessories and detector), the entire unit can easily be carried to remote locations. Portable battery-operated X-ray generators (> 6.8 kg) make the system fully operable in the field. Once on site, the Leonardo DR nano can be assembled quickly and easily.

Perfectly stowed

Well organized and safe for transport

All components are stowed in custom-fitted and sealable compartments in the lightweight backpack. All-round padding offers shock protection to the flat panel detector and laptop.

Excellent image quality

Fantastic images thanks to state-of-the-art technology

The wireless detector boasts outstanding image quality with up to 5 lp/mm resolution.


Quick patient processing and well-documented workflow

X-ray images are available for viewing and diagnosis within 6-8 seconds of triggering.


Straightforward handling even for unspecialised staff

The professional dicomPACS®DX-R acquisition software sports an intuitive and modern graphical user interface. All examinations are conducted comfortably at a single monitor.

Ingenious design

An integrated X-ray positioning guide provides information on the correct adjustment technique for each examination, classified according to animal species (cat, dog and horse).

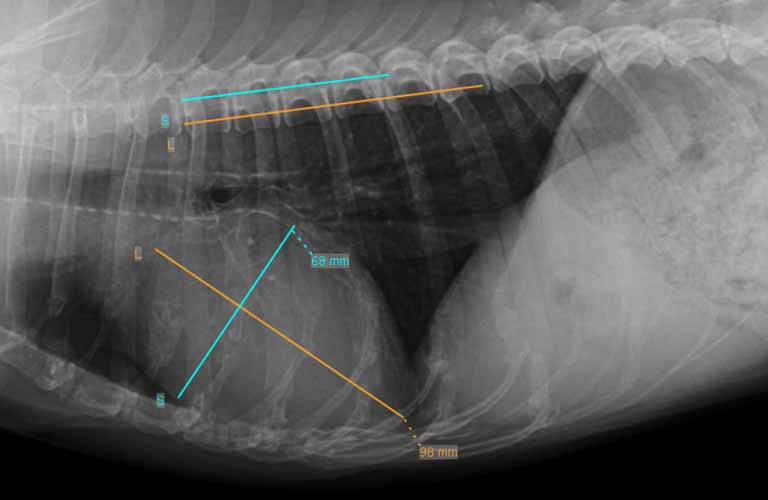

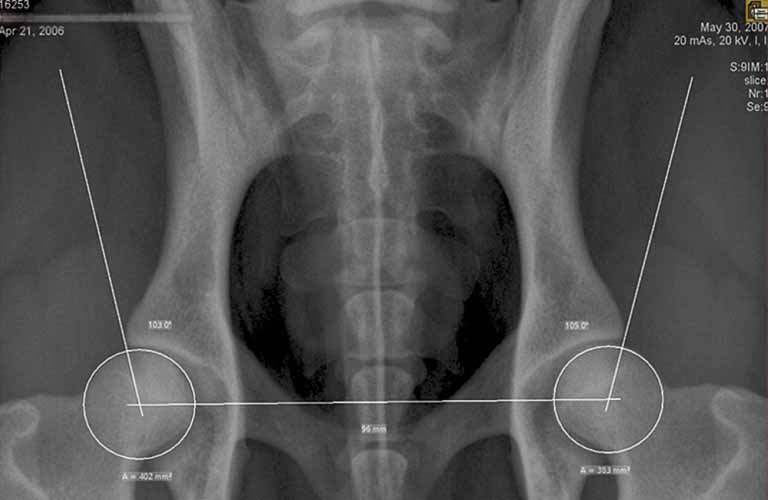

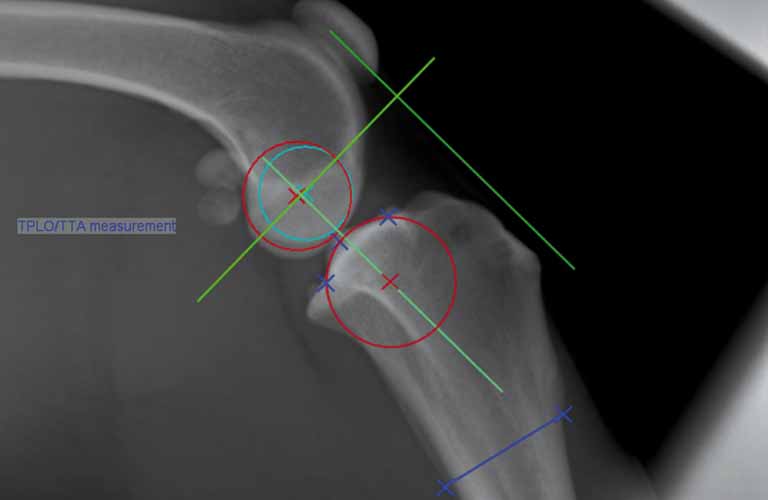

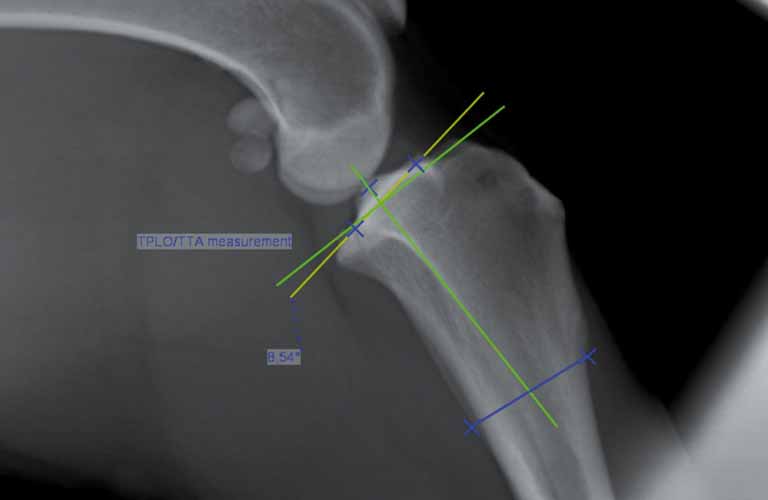

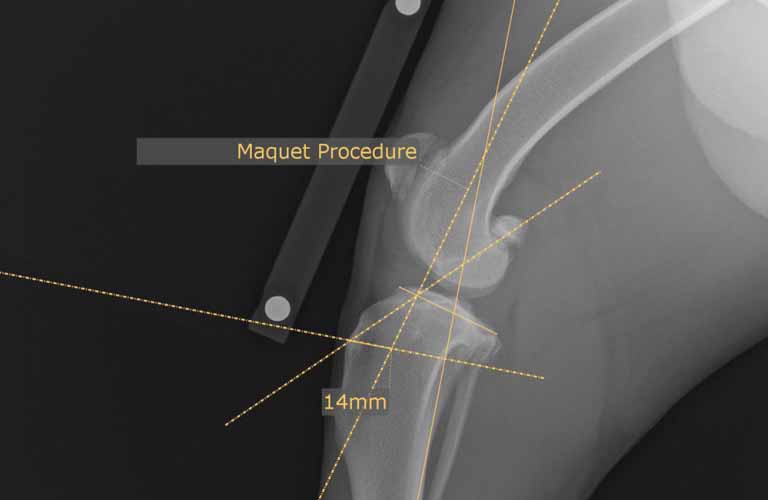

Special measuring functions such as automatic HD measuring (AI-support), MMP, TTA, TPLO and vertebral heart score, as well as macros for recurring examinations (e.g. pre-purchase examinations for horses), can be used at no extra cost.

Remote controlled

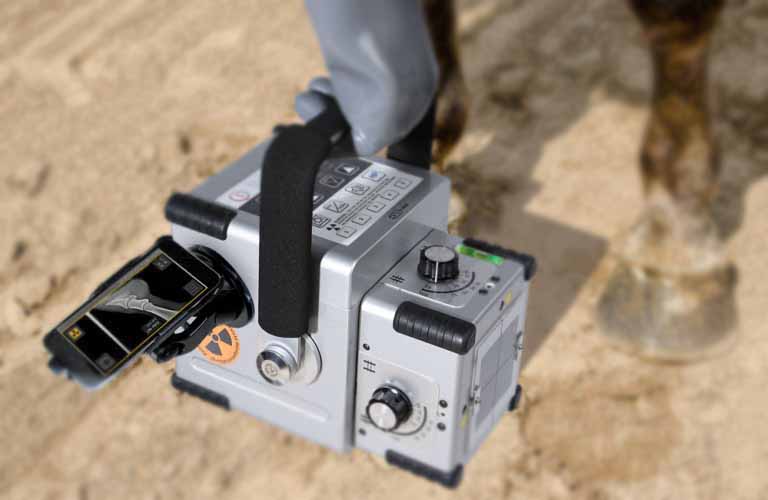

You can use a mobile terminal, such as your smartphone, via a special app as a remote control to take and view images. Attached to your arm or the X-ray generator, it also serves as a control element allowing the user to gain a first impression of the images taken without having to move to the actual console workstation (tablet PC). You can find more information about the Remote Control app here.

Professional preparation of reports

With the optional report module for X-ray services used for pre-purchase examinations of horses, a professional diagnostic report and the relevant documentation can be prepared in no time.

nach oben

Acquisition and diagnostic software for X-ray images

acquisition and diagnostic software with the integrated X-ray positioning guide

At the heart of each Leonardo system is the dicomPACS®DX-R acquisition and diagnostic software with the integrated X-ray positioning guide developed by OR Technology.

The software controls X-ray generators and X-ray units of various manufacturers, providing a smooth and structured workflow. A simple and user friendly GUI (graphical user interface), operated by touchscreen or mouse, completes the system.

The professionaldicomPACS®DX-Rimage processing can be adapted to individual user needs and offers outstanding image quality in human and veterinary medicine. It has been specially developed to enable organ specific viewing quality optimisation, guaranteeing the highest quality of X-ray images.

[more information...]

nach oben

X-ray detectors for Leonardo nano systems

X-ray detectors for animal examination

Here you can find a list of the available X-ray detectors. Different types and sizes of detectors allow an individual configuration of the system.

[to the overview of available X-ray detectors]

nach oben

Any further questions?

Is the Leonardo DR nano the right digital X-ray system for your veterinary practice or clinic?
Let's find out together.
Icon - call our OR Technology team+49 381 36 600 500 Icon - write us a
OR Technology - Call our Sales-Team


nach oben
  • Product information Leonardo DR nano - Superlight, portable X-ray system for equine clinics and general veterinary practices
    The wonderfully light, portable system for X-ray examinations anywhere, any time

  • Product overview veterinary medicine
    Digital X-ray imaging - guide for vet clinic and practice

  • Article in the ‘pferde spiegel’ magazine: ‘Digital radiography and X-ray guideline (only in German)
    Author Dr. Thomas Weinberger, equine clinic Burg Müggenhausen: Evaluation of X-ray images as part of a purchase examination – software support to prevent errors

  • Example of report module for X-ray services relating to equine prepurchase examinations
    The required X-ray images, including all modifications such as zoom, measurements and annotations, and are automatically added to the respective diagnosis for documentation in the prepurchase report, the layout is automatically compiled

  • Product information protection box for 14x17 inch detector
    This protection box protects 14x17 inch wireless X-ray detectors from external shocks and strong vibrations. The housing contains several protective layers to absorb shocks and increase the load capacity.

nach oben

Optional add-ons for the Leonardo Dr nano

Amadeo P high frequency X ray units for portable X-ray in veterinary medicine

Amadeo P high frequency X-ray units for mobile X-ray in veterinary medicine

Its low weight, user-friendly operation and the integrated interface for using the X-ray unit with a digital system enable various fields of application in small animal practices and equine clinics.

Report module for X-ray services relating to equine prepurchase examinations

Report module for X-ray services relating to equine prepurchase examinations

This dicomPACS®vet report module enables the quick compilation of reports by automatically assembling X-ray images. It follows the “X-ray guideline” by the German organisations “Gesellschaft für Pferdemedizin e.V.” (non-profit organsation for equine medicine) and “Bundestierärztekammer e.V.” (Federal association of veterinarians).

The web-based viewer for mobile devices or PCs for vets

dicomPACS®MobileView The web-based viewer for mobile devices or PCs for vets

As a virtually independent browser, it allows the viewing of image material on mobile devices also outside a veterinary clinic or a practice. The vets staff can access all image material from the dicomPACS®vet system worldwide via a network connection.

ORCA® - The DICOM cloud for veterinary images and documents

ORCA® The DICOM cloud for veterinary images and documents

ORCA® (OR Technology Cloud Archiving) is a software solution designed to make everyday work in veterinary practices and animal clinics easier, cheaper and more efficient. ORCA archives medical images and documents on its remote servers using highest security standards, and enables these data to be shared with other veterinarians and authorised persons online.

the sophisticated and high-tech image management solution for veterinarians

dicomPACS®vet the sophisticated and high-tech image management solution

dicomPACS®vet  is an easy to operate, well thought out instrument for daily diagnoses. The software includes the acquisition, processing, transfer and archiving of image material and can easily be integrated into all common administration systems.

Veterinary X ray tables for stationary digital radiography imaging

Veterinary X-ray tables for stationary digital X-ray imaging

Premium patient tables take into account the diversity of patients in veterinary practices and clinics. All offered X-ray tables of the newest generation allow for easy and comfortable work.

Trolley stands and cassette holder for digital X-ray

Trolley stands and cassette holder for digital X-ray

The variety of patient sizes poses a major challenge for manufacturers of X-ray technology and accessories. Trolley stands and cassette holder must be adapted to their patients. A range of trolley stands and cassette holders can be found here.



nach oben
  • Reference report - Leonardo DR nano veterinary practice Markus Wirth, Achterwehr Germany
    Vet Markus Wirth: "The X-ray backpack is in use regularly and enables both fast procedures and uncomplicated work. The workflow has improved significantly. The images are available in seconds and can be examined in three different treatment rooms and at 6 further workstations. The image quality is constantly very good. ..."

nach oben

Technical specifications for Leonardo DR nano

Carrying case (backpack) and accessories bag
  • For 14" x 17" detectors with and without protection box
  • Outer dimensions: 50 x 49 x 12 cm
  • Well-padded, with a sturdy protective frame and shoulder strap
  • Water-repellent for rain protection
  • All important accessories have their own sealable, custom-fit compartments
Tablet PC or laptop
  • SSD hard disk
  • 17" or 15" high-resolution display depending on equipment
  • Intel ® CPU
  • at least 8 GB RAM
  • USB 3.0
  • Wireless LAN
Direct radiography detector 35 x 43 cm (14" x 17") wireless

Wireless X-ray imaging!

  • Fits into existing Bucky tray without modifications (in place of  X-ray film cassettes)
Battery charger and rechargeable batteries
  • Fast-charging, long-lasting batteries plus battery charger
  • Battery charge time: 3 hours
Leonardo DR nano software package

The dicomPACS® DX-R professional console software sports a modern graphical user interface, integrated radiographic positioning guide, and includes the following modules:

  • dicomPACS® DX-R DICOM Send SCU
  • dicomPACS® DX-R DICOM Patient CD
  • dicomPACS® DX-R Cognition Optimised Processing

Optional components for the Leonardo DR nano system

dicomPACS®DX-R Remote control

App for smartphone as remote control device for taking and viewing images during the X-ray process


Holders for smartphone (Apple)

Choice of two types of holders available for taking and viewing images:

  • Upper arm cuff
  • Bracket for portable X-ray generator
Protective case for detector

Available in one sizes:

  • For 35 x 43 cm (14“ x 17“) detectors

Available with and without grid

High-frequency X-ray generator TR 90/20 battery
  • 5 kW, 110 kV / 100 mA
  • High-performance capacitor for a stable and reliable power supply
  • Manual remote control
  • Touch screen, digital display,  LED
  • Dimensions: 254 x 225 x 423 mm; Weight: 19.6 kg
TR90/30 – small format high performance
  • High performing high frequency X-ray generator with full bridge inverter system
  • Only 6,500 g in the smallest size
  • Innovative impact resistant design
RHF 200ML – the universal resonance high frequency X-ray system
  • Shorter exposure times
  • Reduced radiation
  • Monobloc unit with resonance high-frequency inverter system
  • Total weight: 11.2 kg
HF 400 ML - The power pack of our portable HF X-ray units

Portable monoblock X-ray unit based on high frequency technology

  • Inclusive 2-stage hand trigger switch
  • Max. power requirement 6.0 kW, focus 1,2 x 1,2 mm
  • Dimensions 430 x 320 x 260 mm, weight 21.8 kg
Mobile stands and cassette holders

A wide range of X-ray tables and carrying systems of the latest generation enables easy and convenient working. Please ask us.

nach oben
Subject to technical modifications
