Digital X-ray imaging with cassettes with high resolution up to 50 µm – perfect for small animal practices and veterinary hospitals

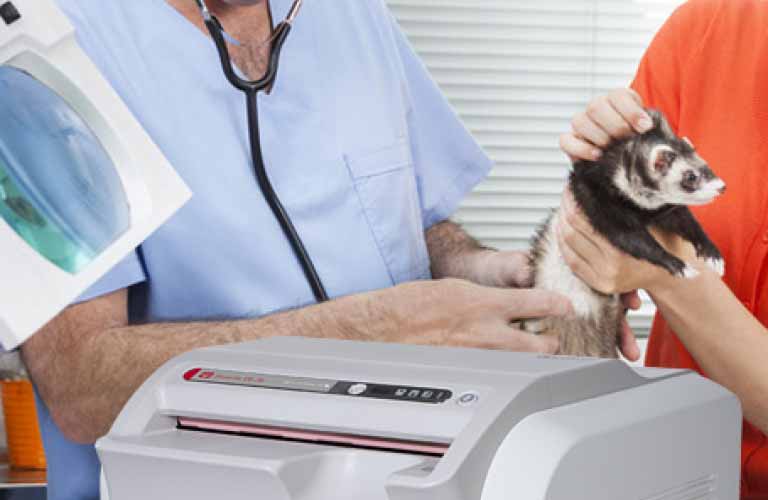

The Divario CR-Tm is a CR desktop system with a maximum throughput of 73 cassettes per hour. In high-speed mode (5 pixel/mm), the processing rate of the new Divario is 70 % higher than that of older CR systems. The Divario is easy to operate, reduces patients' waiting time and makes examinations more efficient. The desktop system is unobtrusive, has a compact design, and is small enough to fit on any office shelf. It is the perfect unit for private practices as well as clinics and hospitals.

The Divario CR-Tm delivers high-resolution images with 50 μm pixels. When used in combination with the professional image acquisition software dicomPACS®DX-R, the lightweight and compact CR system provides a complete suite of image processing tools. The solution can easily be integrated into the workflow of a running practice, for example to handle overflow and act as a backup in an existing DR or CR system.

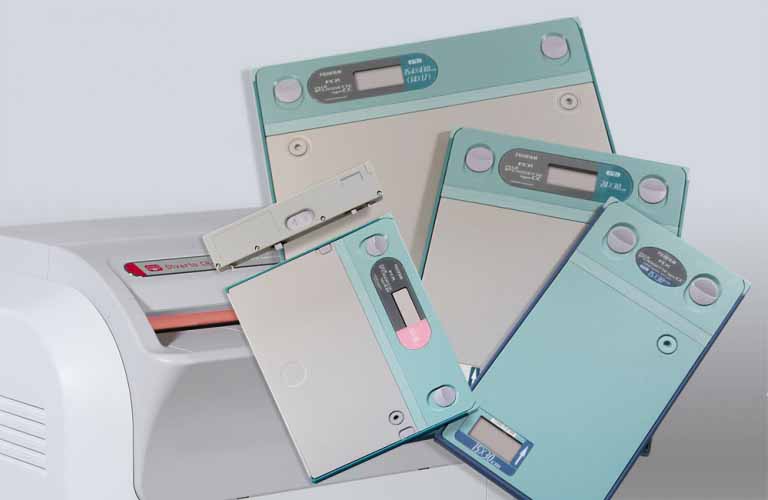

The following cassettes are available for the Divario CR-Tm:

IP cassette type CH (high resolution):
  • 24 x 30 cm (10“ x 12“)
  • 18 x 24 cm (8“ x 10“)
IP cassette type CC:
  • 35 x 43 cm (14“ x 17“)
  • 35 x 35 cm (14“ x 14“)
  • 24 x 30 cm (10“ x 12“)
  • 18 x 24 cm (8“ x 10“)
  • 15 x 30 cm (6“ x 12“)

Features & Benefits of the Divario CR-Tm System

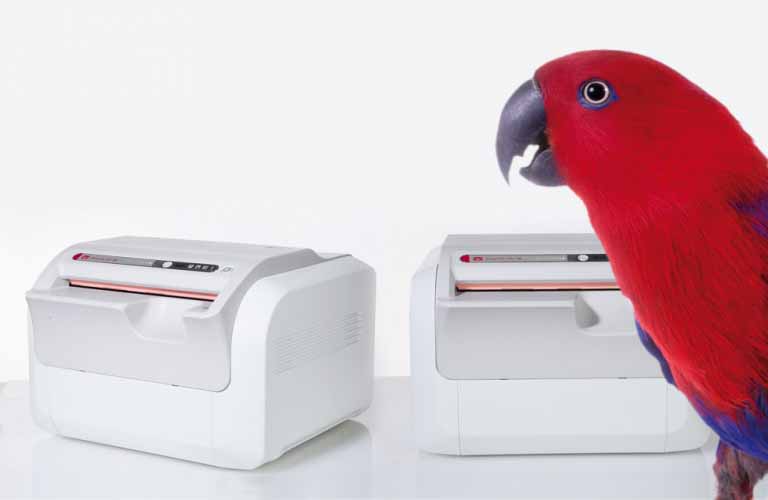

Small

Compact desktop unit (0.30 m² footprint)

High quality

Constant, high-resolution image quality

Fast

Maximum processing capacity: 73 cassettes per hour for 18 x 24cm format

Flexible

Portable, suited for mobile use

Stitching (optional)

For full spine and long leg X-ray images - the separate images are stitched together automatically (auto-stitching)

Acquisition and diagnostic software for X-ray images

DXR vet

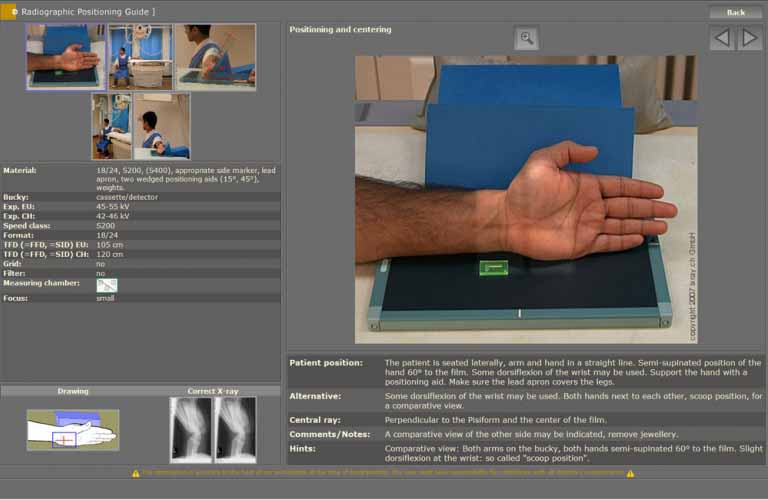

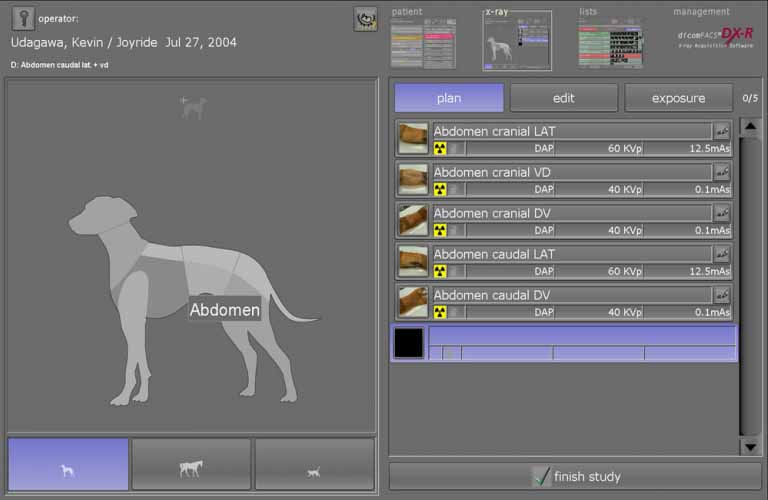

At the heart of each Divario system is the dicomPACS®DX-R acquisition and diagnostic software with the integrated X-ray positioning guide developed by OR Technology.

The software controls X-ray generators and X-ray units of various manufacturers, providing a smooth and structured workflow. A simple and user friendly GUI (graphical user interface), operated by touchscreen or mouse, completes the system.

The professional dicomPACS®DX-R image processing can be adapted to individual user needs and offers outstanding image quality in human and veterinary medicine. It has been specially developed to enable organ specific viewing quality optimisation, guaranteeing the highest quality of X-ray images.

[more information...]

  • Product brochure Divario CR-T2 for vets
    Digital X-ray with cassettes with a resolution of up to 50µm

Optional add-ons

PACS MobileView vet


dicom
PACS
®MobileView  the web-based viewer for mobile devices
The web-based viewer contains all the basic functions for viewing images. You can view images virtually with any browser on mobile devices. dicomPACS®MobileView offers vets a previously unknown degree of mobile freedom in the workplace inside and outside of hospitals or practices, with the radiological image material available from anywhere.

ORCA


ORCA
 storage of medical data (images and documents) as well as sharing via the internet
ORCA
(OR Technology Cloud Archiving) is a cloud-based platform specially designed for storing, viewing and sharing medical images and documents. ORCA offers two exciting applications: ORCA Archive and ORCA Share.



PACS Basispaket vet

dicomPACS®vet  the sophisticated and high-tech image management solution
dicomPACS®vet  is an easy to operate, well thought out instrument for daily diagnoses. The software includes the acquisition, processing, transfer and archiving of image material and can easily be integrated into all common administration systems.





The Divario CR-Tm system includes the following components:

CR desktop unit

Cassette sizes for type CC: 35 x 43cm (14" x 17")

  • 35 x 35cm (14" x 14")
  • 24 x 30cm (10" x 12")
  • 18 x 24cm (8" x 10" )
  • 15 x 30cm (6" x 12")

Cassette sizes for type  CH (high resolution):

  • 24 x 30 cm (10“ x 12“)
  • 18 x 24 cn (8“ x 10“)

Processing capacity: Up to 73 cassettes per hour (18 x 24 cm)

Resolution: 20 Pixel/mm (50 µm), 10 Pixel/mm (100 µm)

Dimensions: 560 x 540 x 392mm (22"x 21"x 15")

Weight: 39 kg (86 lbs)

Operating conditions:

  • Temperature: 15-30°C
  • Humidity: 15 to 80% RH (non-condensing)
  • Atmospheric pressure: 750-1060 hPa

Power supply: Single-phase, 50-60Hz AC120-240V ±10% 1.9A (max)

CR cassettes

All common cassette sizes are available:

  • 1 x 35 cm x 43 cm (included)

Other formats and quantities available upon request

Divario CR-T software package

The dicomPACS®DX-R professional console software sports a modern graphical user interface and an integrated radiographic positioning guide, and includes the following modules:

  • dicomPACS®DX-R DICOM Send SCU including MPPS and Storage Commitment
  • dicomPACS®DX-R DICOM Worklist SCU + dicomPACS® Connect
  • dicomPACS®DX-R DICOM Patient CD
  • dicomPACS®DX-R Cognition Optimised Processing

Optional components for the Divario CR-Tm system

dicomPACS®DX-R control console

Operating console with touch screen monitor, MS Windows (hardware stress test, software pre-installation, system checked and ready to use) Available in two versions:

  • Option 1: Desktop
  • Option 2: Notebook
