Digital X-ray with cassettes for standard X-ray examinations for vets

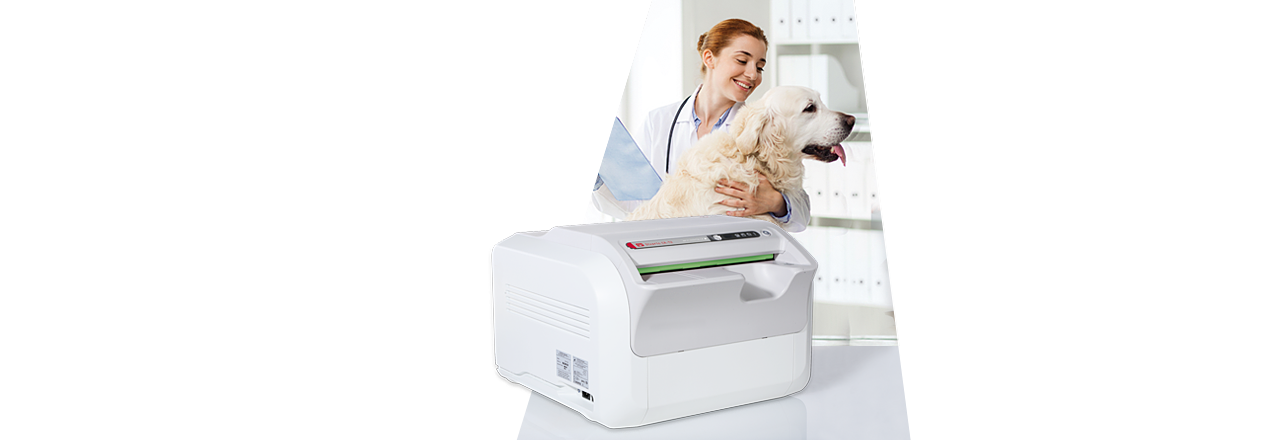

The Divario CR-T2 is a CR desktop system for digital X-ray imaging in veterinary medicine with a maximum throughput of 73 cassettes per hour. In high-speed mode (5 pixel/mm), the processing rate of the new Divario is 70 % higher than that of older CR systems. The Divario is easy to operate, reduces waiting times for animals and owners, and makes examinations more efficient. The desktop system is unobtrusive, has a compact design, and is small enough to fit on any office shelf.

When used in combination with the professional image acquisition software dicomPACS®DX-R, the compact and lightweight CR system provides a complete suite of image processing tools. The solution can easily be integrated into the workflow of a running clinic or research institution, for example to handle overflow and act as a backup in an existing DR or CR system.







nach oben

The following cassettes are available for the Divario CR-T2 :

IP cassette type CC:
  • 35 x 43 cm (14“ x 17“)
  • 35 x 35 cm (14“ x 14“)
  • 24 x 30 cm (10“ x 12“)
  • 18 x 24 cm (8“ x 10“)
  • 15 x 30 cm (6“ x 12“)
IP cassette type LC:

Long bone and full spine cassette
(2 cassetes 35 cm x 43 cm or 3 cassettes 24 cm x 30 cm are required)

  • 35 x 83 cm (14“ x 33“)
  • 35 x 124 cm (14“ x 49“)
  • 24 x 30 cm (10“ x 12“)
nach oben

Features & Benefits of the Divario CR-T System

Small

Compact desktop unit (0.30 m² footprint)

High quality

Reproducible, high-quality images

Fast

Maximum processing capacity: 73 cassettes per hour for 18 x 24cm format

Flexible

Portable, suited for mobile use

nach oben

Acquisition and diagnostic software for X-ray images

DXR vet

At the heart of each Divario system is the dicomPACS®DX-R acquisition and diagnostic software with the integrated X-ray positioning guide developed by OR Technology.

The software controls X-ray generators and X-ray units of various manufacturers, providing a smooth and structured workflow. A simple and user friendly GUI (graphical user interface), operated by touchscreen or mouse, completes the system.

The professional dicomPACS®DX-R image processing can be adapted to individual user needs and offers outstanding image quality in human and veterinary medicine. It has been specially developed to enable organ specific viewing quality optimisation, guaranteeing the highest quality of X-ray images.

[more information...]


nach oben

Any further questions?

Is the Divario CR T2 the right CR X-ray unit for you?
Let's find out together.
Icon - call us+49 381 36 600 500 Icon - write us a mailinfo@or-technology.com
Contact
OR Technology - Call our Sales-Team



nach oben
  • Product information Divario CR-T2 for vets
    Digital X-ray with cassettes for standard X-ray examinations

  • Product overview veterinary medicine
    Digital X-ray imaging - guide for vet clinic and practice

nach oben

Optional add-ons

PACS MobileView vet


dicomPACS®MobileView - the web-based viewer for mobile devices
The web-based viewer contains all the basic functions for viewing images. You can view images virtually with any browser on mobile devices. dicomPACS®MobileView offers vets a previously unknown degree of mobile freedom in the workplace inside and outside of hospitals or practices, with the radiological image material available from anywhere.

ORCA


ORCA  - storage of medical data (images and documents) as well as sharing via the internet
ORCA
(OR Technology Cloud Archiving) is a cloud-based platform specially designed for storing, viewing and sharing medical images and documents. ORCA offers two exciting applications: ORCA Archive and ORCA Share.



PACS Basispaket vet

dicomPACS®vet the sophisticated and high-tech image management solution
dicomPACS®vet  is an easy to operate, well thought out instrument for daily diagnoses. The software includes the acquisition, processing, transfer and archiving of image material and can easily be integrated into all common administration systems.

nach oben

The Divario CR-T2 system includes the following components:

CR desktop unit

Cassette sizes for type CC: 35 x 43cm (14" x 17")

  • 35 x 35cm (14" x 14")
  • 24 x 30cm (10" x 12")
  • 18 x 24cm (8" x 10" )
  • 15 x 30cm (6" x 12")

Processing capacity: Up to 73 cassettes per hour (18 x 24 cm)

Resolution:10 Pixel/mm, 5 Pixel/mm Dimensions: 560 x 540 x 392mm (22"x 21"x 15")

Weight: 39 kg (86 lbs)

Operating conditions:

  • Temperature: 15-30°C
  • Humidity: 15 to 80% RH (non-condensing)
  • Atmospheric pressure: 750-1060 hPa

Power supply: Single-phase, 50-60Hz AC120-240V ±10% 1.9A (max)

CR cassettes

All common cassette sizes are available:

  • 1 x 35 cm x 43 cm (included)

Other formats and quantities available upon request

Divario CR-T software package

The dicomPACS®DX-R professional console software sports a modern graphical user interface and an integrated radiographic positioning guide, and includes the following modules:

  • dicomPACS®DX-R DICOM Send SCU including MPPS and Storage Commitment
  • dicomPACS®DX-R DICOM Worklist SCU + dicomPACS® Connect
  • dicomPACS®DX-R DICOM Patient CD
  • dicomPACS®DX-R Cognition Optimised Processing

Optional components for the Divario CR-T2 system

dicomPACS®DX-R control console

Operating console with touch screen monitor, MS Windows (hardware stress test, software pre-installation, system checked and ready to use) Available in two versions:

  • Option 1: Desktop
  • Option 2: Notebook
nach oben
Subject to technical modifications
