The compact suitcase solution for mobile use in medical emergencies

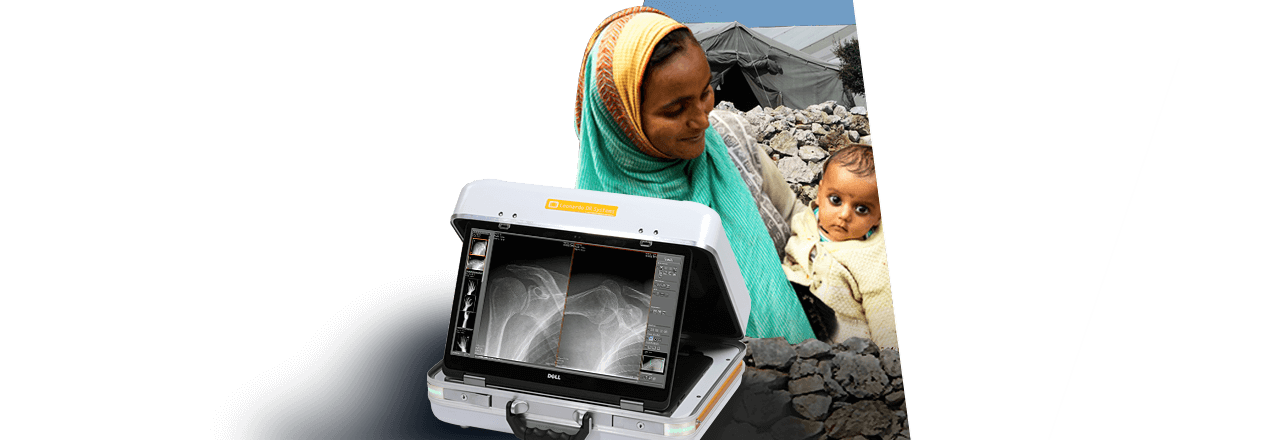

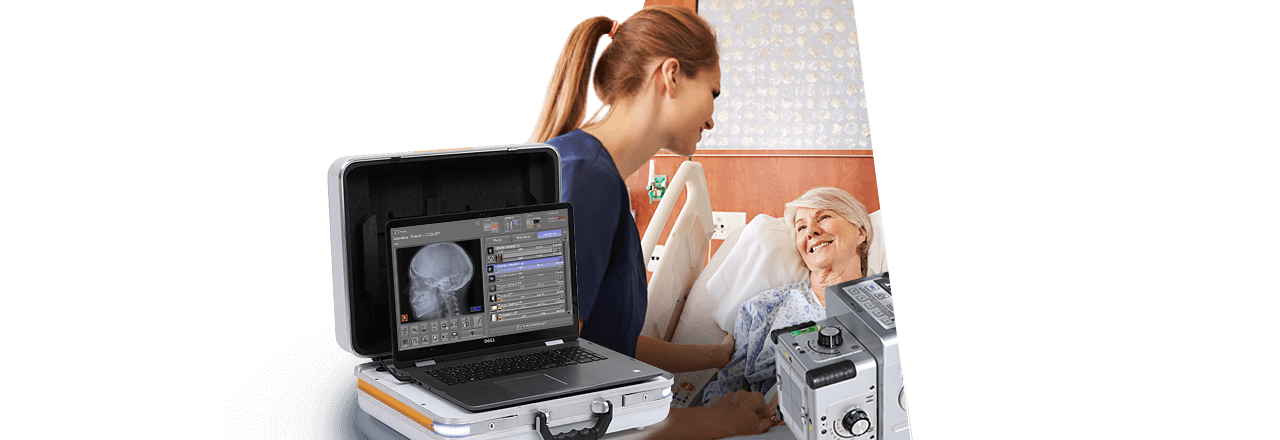

The newest model in our Leonardo series, the compact and versatile Leonardo DR mini II, combines X-ray detector technology with a high-performance acquisition and diagnostic software. Weighing only 8.9 kg, the system is one of the lightest suitcase X-ray solutions worldwide. The suitcase system is the perfect solution for both stationary and portable radiography for small medical stations, for the homecare sector or for health care within the scope of missions of various medical services, aid organisations or NGOs.

The Leonardo DR mini II is quick to set up and easy to use. Its built-in 17" premium notebook with high resolution touchscreen monitor as well as integrated acquisition and diagnosis software guarantees excellent image display. The X-ray suitcase has two large LEDs clearly visible even from a distance of several meters. These LEDs indicate the software status, such as "Ready to expose". In addition, a signal tone sounds when the status changes. The notebook can easily be removed from its secured location within the case for use in an optimal ergonomic position or as a tablet during presentations.

The integrated diagnosis software provides global, rapid and inexpensive consultations via e-mail or ORCA cloud services in compliance with safety and privacy regulations. The only requirement is an internet connection. In cases of emergency, X-ray images can be transmitted rapidly to a specialist for an accurate diagnosis when there is no doctor on site.

A straightforward user interface combined with OR Technology’s integrated acquisition and diagnosis software makes it easy for staff to generate excellent X-ray images. In addition, the integrated multimedia X-ray positioning guide assists with patient positioning.

Two versions of the Leonardo DR mini II system are available:

Leonardo DRw mini II [1210]

mobile X-ray system with wireless CsI flat panel detector 12" x 10",
format 24 x 30 cm

Leonardo DRw mini II [1417]

mobile X-ray system with wireless CsI flat panel detector 14" x 17",
format 35 x 43 cm

Features & Benefits of the Leonardo DR mini II System

Ingeniously designed

wireless and battery-powered – designed for use in confined spaces as well as in the field

Wireless

battery-operated system can run continuously for over four hours – providing flexibility and maneuverability in difficult environments

Compact

weighing in at approx. 8.9 kg, the case fits behind any car seat

Practical

17" laptop can easily be removed from its secured location within the case – for use in an optimal ergonomic position or as a tablet during presentations

Efficient

integration into your existing patient management system – patient data at the push of a button

Excellent high-quality X-ray detector based on a caesium iodide (CsI) scintillator – top image quality even at low X-ray doses
User-friendly

self-explanatory OR Technology acquisition software dicomPACS®DX-R including free special measurement functions

Fast

shortly after taking the shot (6 - 8 seconds), the X-ray image is already available for viewing and diagnostic evaluation

Cleverly designed

fully integrated radiographic positioning guide for all examinations in human medicine with comprehensive notes, photographs, videos and sample X-ray images

Accessibility

integrated diagnostic software offers a worldwide, fast and cost-effective exchange of information (via cloud or email)

One of a kind

Safe and quick registration of emergency patients and user-defined macros for recurring examinations, e.g. thorax screenings

Visible

Software status display via large 4-colour LEDs on the corners of the suitcase

Audible

Audio output on status change

Acquisition and diagnostic software for X-ray images

DXR human

At the heart of each Leonardo system is the dicomPACS®DX-R acquisition and diagnostic software with the integrated X-ray positioning guide developed by OR Technology.

The software controls X-ray generators and X-ray units of various manufacturers, providing a smooth and structured workflow. A simple and user friendly GUI (graphical user interface), operated by touchscreen or mouse, completes the system.

The professional dicomPACS®DX-R image processing can be adapted to individual user needs and offers outstanding image quality in human and veterinary medicine. It has been specially developed to enable organ specific viewing quality optimisation, guaranteeing the highest quality of X-ray images.

[more information...]



  • Product information X-ray suitcase Leonardo DR mini II
    The compact suitcase solution - the newest model in our Leonardo series combines X-ray detector technology with a high-performance acquisition and diagnostic software

  • Product information flat panel detector Varex-PerkinElmer XRPad2 3025, wireless
    Lightweight wireless flat panel detector weighing only 1.8kg offers an extended range of features such as internal image storage and a magnetic docking port, active area of 25x30cm (10x12")

  • Product information flat panel detector Varex-PerkinElmer XRPad2 4336, wireless
    Excellent image quality, pixel resolution of over 100µm, fits into a conventional cassette Bucky tray so that X-ray systems don't have to be modified, active area of 14”x17” (35x43cm)

  • Product information flat panel detector XenOR 35CW, wireless
    Compact flat panel detector in cassette size developed for mobile and stationary radiography, weighing only 3.7kg and offering an active area of 14”x17” (35x43cm) and providing the freedom of wireless operation

  • Product information XenOR 24CW, wireless
    Compact and robust flat panel detector in a splash proof aluminum case and shock absorbing rubber edges, specially for outdoor use, active area of 10”x12” (25x30cm)

  • Product information protection box for X-ray detector XenOR 24CW
    This protective housing has been especially developed for the XenOR 24CW X-ray detector in order to protect it from external impacts and strong concussions. The robust housing comprises numerous protective layers and a circumferential rubber surround so that impacts can be absorbed and the load rating increased.

Optional add-ons

Amadeo P

Amadeo P  Practical portable and light-weight generators
Due to their low weight, user-friendly operation and integrated interface they can be used in numerous applications in practices, clinics and for out-patient purposes.



PACS MobileView

dicomPACS®MobileView the web-based viewer for mobile devices
The web-based viewer contains all the basic functions for viewing images. You can view images virtually with any browser on mobile devices. dicomPACS®MobileView offers doctors and nursing staff a previously unknown degree of mobile freedom in the workplace inside and outside of hospitals or practices, with the radiological image material available from anywhere.



ORCA

ORCA®  storage of medical data (images and documents) as well as sharing via the internet
ORCA
(OR Technology Cloud Archiving) is a cloud-based platform specially designed for storing, viewing and sharing medical images and documents. ORCA® offers two exciting applications: ORCA® Archive and ORCA® Share.



PACS Software

dicomPACS® the sophisticated and high-tech image management solution
With dicomPACS® all images generated by digital X-ray, CT, MRI and ultrasound devices, as well as diverse documents (e.g. doctor's letters, medical findings, medical history, faxes) are stored in a digital patient folder and readily accessible.



Versarix

VersariX the portable mounting system for X-ray detectors
VersariX is the portable flat panel detector mounting system for X-ray examinations and weighing only some 400 grams, it can be attached anywhere, like on room or wardrobe doors, walls, trees etc. The sturdy hook used to suspend the X-ray flat panel detector allows virtually stepless height adjustment.



Wandstative Wandhalterungen


Trolley stands and cassette holder for digital X-ray
The variety of patient sizes poses a major challenge for manufacturers of X-ray technology and accessories. Trolley stands and casette holder must be adapted to their patients. A range of trolley stands and cassette holders can be found here.






Technical specifications for Leonardo DR-mini II

Compact and light suitcase

Total weight: 8.9 kg (including the complete suitcase, notebook, power supply and electronics), size: ca. 49 x 39.5 x 18.5 cm, inclusive detachable strap for convenient transport

Notebook

Convertible 2-in-1 premium notebook with large monitor, newest 8th generation Intel® Core™ i7 processor, 16 GB RAM, 17,3“ full HD touchscreen monitor, keyboard with background lighting, SSD hard disk 128 GB + hard disk 1 TB

Flat panel detector 24 x 30 cm (10“ x 12“) wireless*

Wireless X-ray imaging!
Fits into an existing X-ray system without requiring modification (in conformity
with the X-ray film cassette), fast charging, long life batteries incl. battery charger

Flat panel detector 35 x 43 cm (14" x 17") wireless*

Wireless X-ray imaging!
Fits into an existing X-ray system without requiring modification (in conformity with the X-ray film cassette), fast charging, long life batteries incl. battery charger

* Various types of flat panel on request

Leonardo DR mini II software package

The dicomPACS® DX-R professional console software sports a modern graphical user interface, integrated radiographic positioning guide and the following modules:

  • dicomPACS® DX-R DICOM Send SCU
  • dicomPACS® DX-R DICOM Patient CD
  • dicomPACS® DX-R Cognition Optimised Processing
Extension for battery operation

Allows working without power connection up to an average of 4-6 hours in normal mode

Shoulder strap for X-ray case

Easy-to-use, detachable strap for convenient transport

Optional components for the Leonardo DR mini II system

Wireless synchronisation

for any  X-ray generator

Protective case for detector

Available for all three versions

  • For 35 x 43 cm (14“ x 17“) detectors
  • For 24 x 30 cm (10“ x 12“) detectors

Available with and without grid

Carrying case for 35 x 43 cm (14" x 17") detector

Available for DRw mini II [1417] and DR mini II [1417]
Dimensions: 55.5 x 49 x 6 cm

Amadeo P high frequency X-ray system

Portable high frequency X-ray units for high-quality X-ray images: Low weight and user-friendly operation  enable various fields of application in the outpatient and inpatient area
