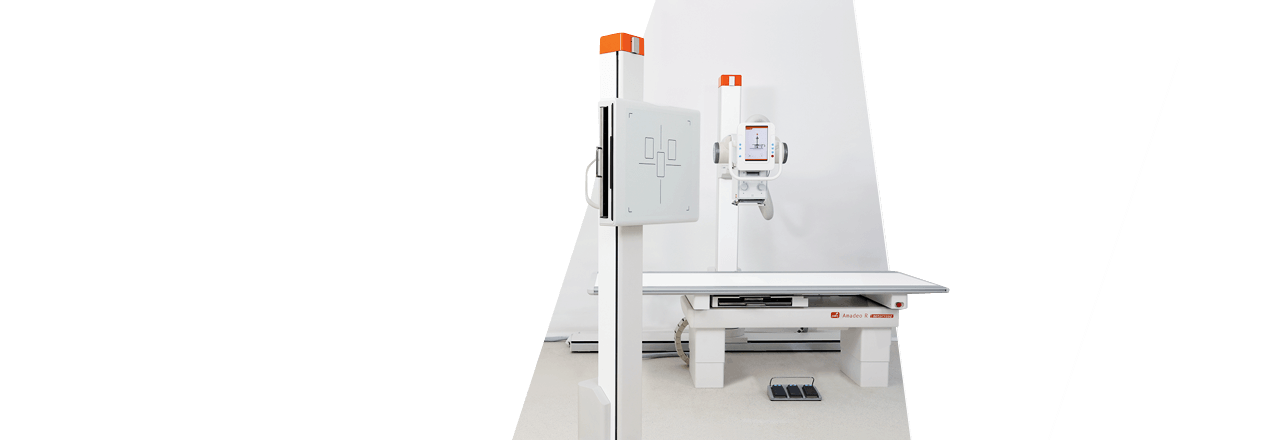

Motorised, universal X-ray system with bucky table and wall stand

The Amadeo R motorised is a versatile, motorised X-ray system with bucky table and wall stand, which convinces through simple control and handling. An intuitive 10" touch screen display simplifies system operation. The digital X-ray system is suitable for all X-ray exposures in sitting, lying and standing positions and has approx. 60 semi-automatic preset positions of stand height, alignment and SID.

X-ray staff quickly become familiar with the procedures and the use of our professional acquisition and reporting software dicomPACS®DX-R. The X-ray tube and bucky tray of the grid wall stand are designed to be lowered to the floor. The X-ray tube follows automatically if there are no objects in the way. The 6-position height-adjustable X-ray table has a high load-bearing capacity so that even larger patients can be examined without any problems.

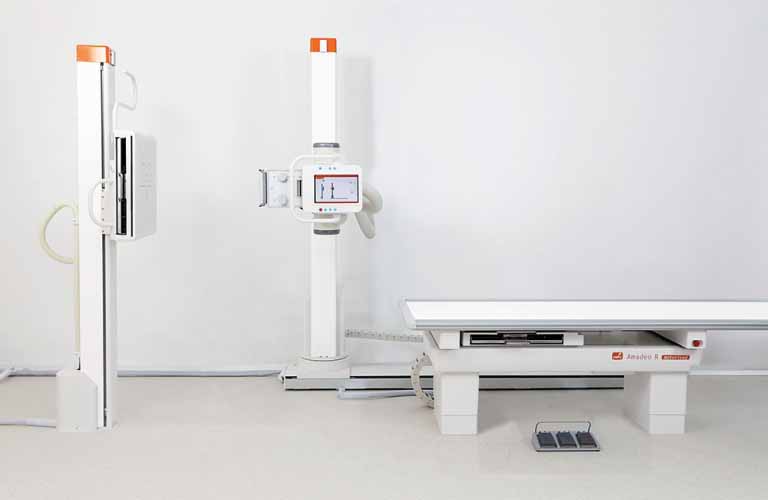

The universal X-ray system requires only a small footprint without restricting full functionality. A wide range of options, such as motorised auto-tracking, the wireless 3-way foot switch for all motorised functions, the integrated safety functions or the removable grid on the table or grid wall stand, also enable work in highly frequented radiology departments.





Video: Motorised, universal X-ray system with bucky table and wall stand





Two versions of the Amadeo R motorised universal X-ray system are available:

Amadeo R-DR motorised:

With a built-in X-ray detector  (43 cm x 43 cm)

Amadeo R-DR motorised:

with a wireless X-ray detector (35 cm x 43 cm)

Features and Benefits of Amadeo R motorised X-ray Systems:

Optimal

takes up only a small footprint without restricting full functionality (min. W/H/D 4.50 x 2.60 x 2.60 m) - guaranteed through compact design and collision sensors for room height and detector position for recordings on standing, sitting and lying patients

Comfortable
  • intuitive 10" touchscreen display for simplified system operation

  • easy positioning in all directions

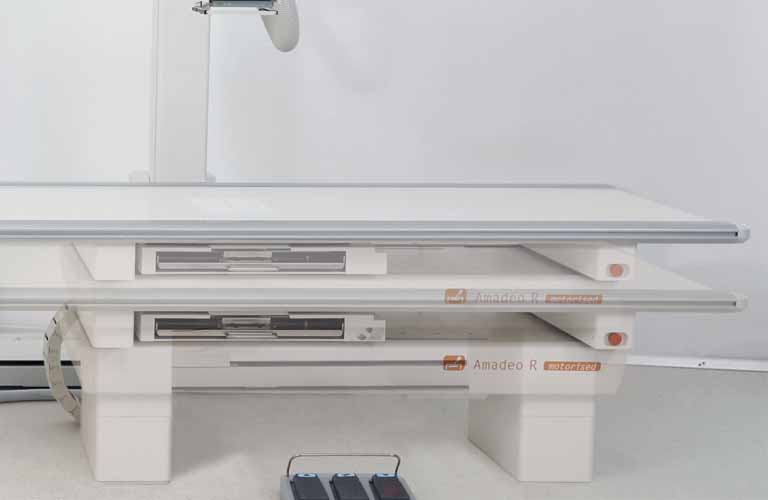

  • 6-position- height-adjustable table
  • wireless 3-way foot switch for all motorised functions
Simple

up to 60 semi-automatic preset positions of tripod height, alignment and SID

Comfortable

through automatic tripod positioning, motorised adjustment of the specific film-focus distance and customised anatomical programming (APR)

Safe

integrated safety functions with several emergency stop buttons and collision sensors

Excellent

high-quality X-ray detector based on a caesium iodide (CsI) scintillator – with fast image display and top image quality even at low X-ray doses

User-friendly

self-explanatory OR Technology acquisition software dicomPACS®DX-R including free special measurement functions

Sophisticated

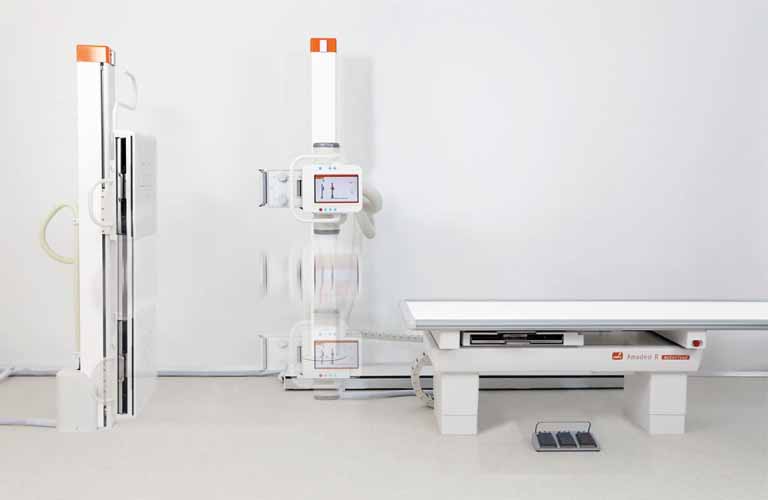

Autotracking with bucky tray from wall stand and X-ray tube and with table bucky and X-ray tube



Fast

shortly after taking the shot (6 - 8 seconds), the X-ray image is already available for viewing and diagnostic evaluation

Cleverly designed

integrated X-ray positioning guide helps choose the perfect positioning

Accessibility

integrated diagnostic software offers a worldwide, fast and cost-effective exchange of information (via cloud or email)

Acquisition and diagnostic software for X-ray images

Acquisition and diagnostic software for X-ray images

At the heart of each Amadeo system is the dicomPACS®DX-R acquisition and diagnostic software with the integrated X-ray positioning guide developed by OR Technology.

The software controls X-ray generators and X-ray units of various manufacturers, providing a smooth and structured workflow. A simple and user friendly GUI (graphical user interface), operated by touchscreen or mouse, completes the system.

The professional dicomPACS®DX-R image processing can be adapted to individual user needs and offers outstanding image quality in human and veterinary medicine. It has been specially developed to enable organ specific viewing quality optimisation, guaranteeing the highest quality of X-ray images.

[more information...]



X-ray detectors for Amadeo R motorised systems

list of the available X-ray detectors

Here you can find a list of the available X-ray detectors. Different types and sizes of X-ray detectors allow an individual configuration of the system.

[to the overview...]

  • Product information universal X-ray system Amadeo R motorised
    The Amadeo R motorised is a versatile, motorised X-ray system with bucky table and grid wall stand, which convinces through simple control and handling.

  • Product overview Digital X-ray in human medicine
    Product portfolio of OR Technology: Digital Radiography and Image Management - A guide for medical practices, clinics and hospitals

Optional add-ons

PACS MobileView

dicomPACS®MobileView – the web-based viewer for mobile devices
The web-based viewer contains all the basic functions for viewing images. You can view images virtually with any browser on mobile devices. dicomPACS®MobileView offers doctors and nursing staff a previously unknown degree of mobile freedom in the workplace inside and outside of hospitals or practices, with the radiological image material available from anywhere.

ORCA

ORCA®  storage of medical data (images and documents) as well as sharing via the internet
ORCA® (OR Technology Cloud Archiving) is a cloud-based platform specially designed for storing, viewing and sharing medical images and documents. ORCA® offers two exciting applications: ORCA® Archive and ORCA® Share.

PACS Software

dicomPACS®the sophisticated and high-tech image management solution
With dicomPACS® all images generated by digital X-ray, CT, MRI and ultrasound devices, as well as diverse documents (e.g. doctor's letters, medical findings, medical history, faxes) are stored in a digital patient folder and readily accessible.





Technical Data for Amadeo R motorised (standard configuration)

X-ray generator and X-ray tube
  • Output power 50 kW (40 - 150 kVp, 10 - 630 mA, 400/480 V (+/- 10 %))
  • Rotatable anode X-ray tubes with double focus, focal spot 0.6 / 1.2 mm
Tube stand
  • Smooth, easy positioning of the X-ray arm with electromagnetic brake
  • Stand rotatable ±90°, travel of 190 cm (length)
  • X-ray tube rotatable ±135°, travel of 149 cm (height)
  • Manually operated collimator with halogen full field light localiser



X-ray table
  • Motorised table top height-adjustable from 53 cm to 83 cm
  • 4-way floating X-ray table (228 x 80 cm)
  • Travel lengthwise ±38 cm, crosswise ±10 cm
  • Sturdy construction with high table load capacity, max. 350 kg
  • Bucky incl. 3-field ionisation chamber (AEC)
  • Removable grid L (85 L / cm; r 10:1, FFA = 80 - 110cm)
Wall stand
  • Height-adjustable, with counterbalance, vertical travel 149 cm
  • Bucky incl. 3-field ionisation chamber (AEC)
  • Removable grid L (85 L / cm; r 10:1, FFA = 110 - 180 cm)
Flat panel detector 14" x 17" CsI wireless

Direct radiography detector with fast charging, long-life batteries

Flat panel detector 17" x 17" CsI

Detector with excellent image quality and immediate image availability



Auto-Tracking tube and bucky
  • Motorised movement of the X-ray tube - Automatic central positioning of the X-ray tube on the centre of the bucky in the wall stand.
  • Motorised movement of the bucky in the patient table - Automatic central positioning of the bucky in the patient table
Operator control via dicomPACS®DX-R acquisition station

Mini PC with 24" touch screen monitor, 1920 x 1080 Pixel inkl. the professional console software dicomPACS®DX-R with modern graphic user interface with generator control, integrated X-ray positioning guide and basic software modules:

  • dicomPACS®DX-R DICOM Send SCU
  • dicomPACS®DX-R DICOM Patient CD
  • dicomPACS®DX-R Cognition Optimised Processing

Optional Components for Amadeo R motorised Systems

DAP meter (dose-area product meter)

Available

Lumbar spine / thoracic spine filter

Available

Generator upgrade

From 50 kW to 65 kW

From 50 kW to 80 kW

Subject to technical modifications
