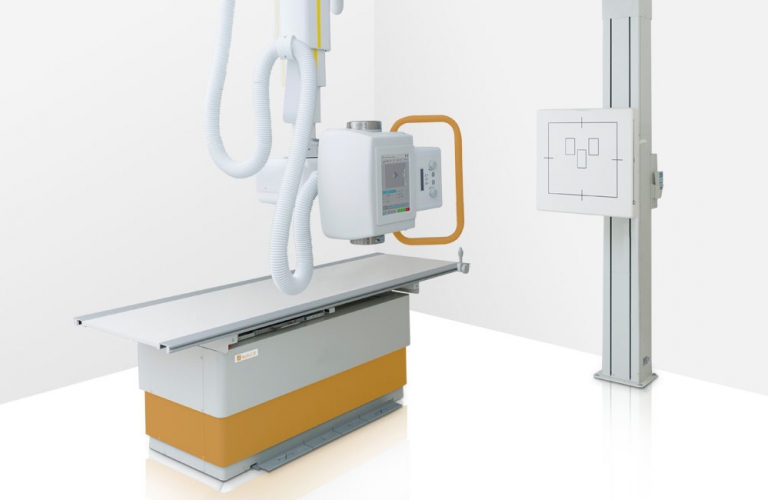

Digital, motorised X-ray system with best auto-positioning technology, ceiling mount, height-adjustable patient positioning table and Bucky wall stand

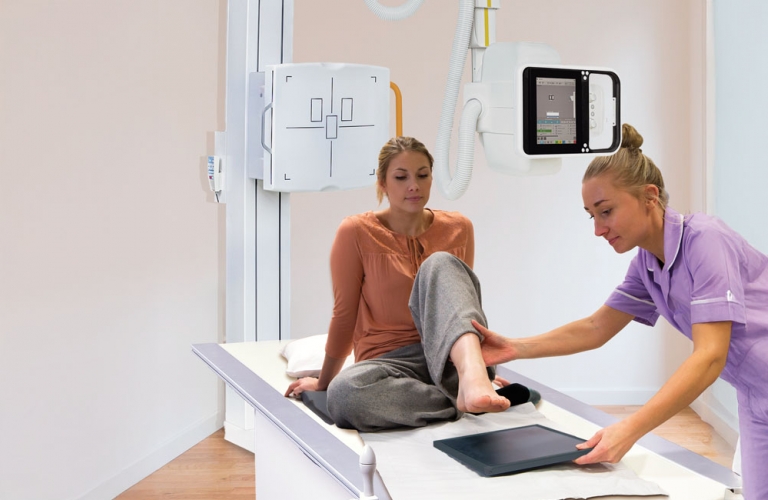

Due to the special ease of movement, supported by auto-tracking and APR positioning, the ceiling mount can be moved quickly, efficiently and effortlessly to the desired position (pre-programmable). The Amadeo C X-ray system can be optimally adjusted to various spatial circumstances. The height-adjustable four-way floating table top with motorised vertical lift is the ideal support for all routine examinations. Thanks to the high load-bearing capacity paired with the large sensetive area, obese and large patients can be examined without repositioning. The wall stand can be set up free-standing and is equipped with an electromagnetic brake. The entire torso can be examined thanks to the large travel range of the Bucky diaphragm.

The dicomPACS®DX-R operating console controls the entire X-ray system: from operating the X-ray generator to the finished superb quality image for diagnostic evaluation. All necessary settings are keyed into a single control panel. In addition, the integrated multimedia X-ray positioning guide offers advice on the correct adjustment technique and the positioning of the patient.





Three versions of the Amadeo C X-ray system are available:

Amadeo C-DRw

Ceiling mount X-ray system with wireless X-ray detectors (14" x 17")

Amadeo C-DR

Ceiling mount X-ray system with dual detector (17" x 17" fixed and wireless14" x 17")

Amadeo C-DR

Ceiling mount X-ray system with dual detector (2x 17" x 17" fixed)

Third X-ray detector optional

Features & Advantages of Amadeo C

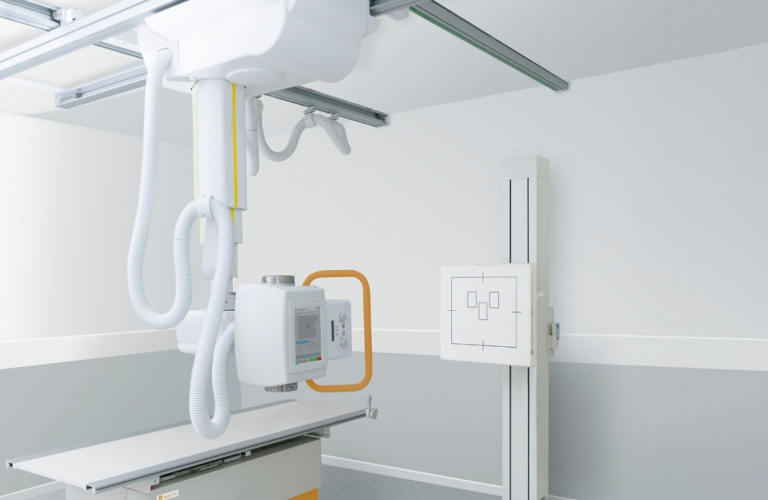

Optimal use of available space

The versatile track system and preset settings make the wall stand and Bucky tray ideal for diverse interiors.

Your benefit: Customised design for individual needs

Excellent image quality

The standard high-quality direct radiography detector operating on the basis of a caesium iodite (CsI) scintillator provides excellent quality even in the case of low X-ray dose parameters.

Your Benefit: In particular when comparing images directly to the commonly used GadOx (Gd²O²S:Tb) detectors, this enhanced quality is clearly visible.

Fast

The X-ray image is available for viewing and diagnosis within 6 – 8 seconds after the exposure is triggered.

Your Benefit: Fast work flow with optimal documentation.

Easy handling

The Amadeo C ensures easy, safe and fast positioning (motorised movements, auto-tracking function, APR positioning, auto stitching). The degree of automation can be individually adjusted.

Your benefit: Degree of automation individually adjustable

User-friendly

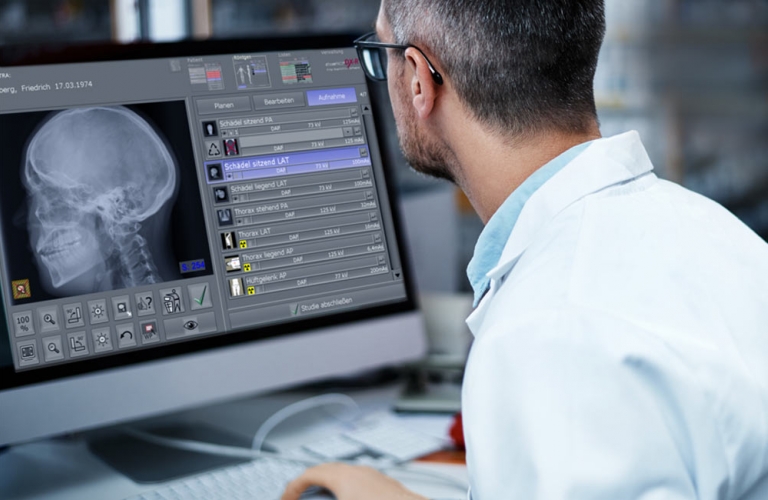

The professional dicomPACS®DX-R acquisition software appeals through an intuitive and modern graphical user interface. Examinations may be conducted comfortably at the monitor while all the necessary adjustments of the X-ray parameters are automatically communicated to the generator.

Your Benefit: You work with only one control console.

Well-designed

The system includes two tethered  43 x 43 cm flat panel detectors (alternatively one tethered  43 X 43 cm and one wireless 36 X 43 cm flat panel detector). Repositioning unwieldy detectors is a thing of the past.

Your benefit: No time lost repositioning detectors, quick staff training. The X-ray tube and Bucky tray can be lowered to ground level.

Accessibility

The integrated diagnostic software offers a worldwide, fast and cost-effective information  exchange via cloud or email.

One of a kind

The software garantees a safe and quick registration of emergency patients and user-defined macros for recurring examinations, e.g. thorax screenings.

Acquisition and diagnostic software for X-ray images

DXR human

At the heart of each Amadeo system is the dicomPACS®DX-R acquisition and diagnostic software with the integrated X-ray positioning guide developed by OR Technology.

The software controls X-ray generators and X-ray units of various manufacturers, providing a smooth and structured workflow. A simple and user friendly GUI (graphical user interface), operated by touchscreen or mouse, completes the system.

The professional dicomPACS®DX-R image processing can be adapted to individual user needs and offers outstanding image quality in human and veterinary medicine. It has been specially developed to enable organ specific viewing quality optimisation, guaranteeing the highest quality of X-ray images.

[more information...]


  • Product information ceiling-mounted X-ray system Amadeo C
    Digital radiograpy with ceiling-mounted X-ray system with adjustable patient positioning table and wall stand

  • Product overview human medicine
    Digital X-ray imaging overview - 6 solutions for your X-ray requirements

  • Product information flat panel detector XenOR 43CL, tethered
    Various fields of application for digital radiography due to Auto Exposure Detection (AED), low weight and cassette-sized, active area 17"x17" (43x43cm)

  • Product information flat panel detector XenOR 35CW, wireless
    Compact flat panel detector in cassette size developed for mobile and stationary radiography, weighing only 3.7kg and offering an active area of 14”x17” (35x43cm) and providing the freedom of wireless operation

  • Product information flat panel PerkinElmer 4343F, tethered
    The flat panel offers a pixel resolution of 100μm (up to 5lp/mm – 14“x17“) and fits into a conventional Bucky wall stand or table, just like a film-screen cassette, active area of 17"x17" (43x43cm)

  • Product information flat panel detector Varex-PerkinElmer XRPad2 4336, wireless
    Excellent image quality, pixel resolution of over 100µm, fits into a conventional cassette Bucky tray so that X-ray systems don't have to be modified, active area of 14”x17” (35x43cm)

  • Product information protection box for 14x17 inch detector
    This protection box protects 14x17 inch wireless X-ray detectors from external shocks and strong vibrations. The housing contains several protective layers to absorb shocks and increase the load capacity.

Optional add-ons

dicomPACS®MobileView the web-based viewer for mobile devices


dicomPACS®MobileView the web-based viewer for mobile devices
The web-based viewer contains all the basic functions for viewing images. You can view images virtually with any browser on mobile devices. dicomPACS®MobileView offers doctors and nursing staff a previously unknown degree of mobile freedom in the workplace inside and outside of hospitals or practices, with the radiological image material available from anywhere.

Cloud ORCA  storage of medical data (images and documents) as well as sharing via the internet


ORCA – storage of medical data (images and documents) as well as sharing via the internet
ORCA
(OR Technology Cloud Archiving) is a cloud-based platform specially designed for storing, viewing and sharing medical images and documents. ORCA offers two exciting applications: ORCA Archive and ORCA Share.



<b><i>dicom</i></b><i>PACS</i><sup>®</sup> the sophisticated and high-tech image management solution

dicomPACS® the sophisticated and high-tech image management solution
With dicomPACS® all images generated by digital X-ray, CT, MRI and ultrasound devices, as well as diverse documents (e.g. doctor's letters, medical findings, medical history, faxes) are stored in a digital patient folder and readily accessible.





Technical Data for Amadeo C (standard configuration)

HF generator

50/80 kW

Ceiling mount

•  motorised or manual movements
•  150 cm or 180 cm vertical travel
•  extendable ceiling rails for all room sizes asnd floor plans
•  convenient LCD touch screen, Optional on-screen generator controls

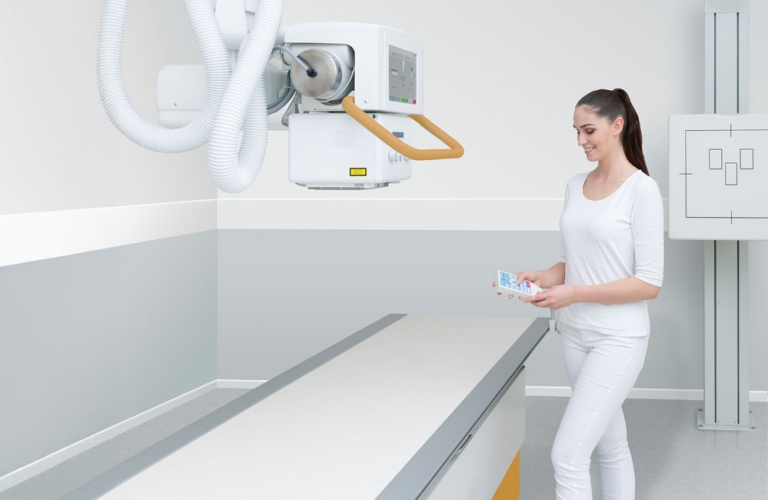

•  optional wired or wireless remote controller
•  full range of auto-tracking options
•  optional constant-focus stitching mode
•  spring balanced construction with electromagnetic locks

Wall stand

•  155 cm motorised vertical travel
•  fully counter-balanced, double rope system for safety
•  negative electrical lock for easy positioning and permanent placement
•  panel cover has permanent cross-lines and AEC field markers for easy
    patient and tube positioning
•  heavy-duty grid cabinet (103 LPI, 10:1 grid), other grids available
•  optional removable grid

X-ray table

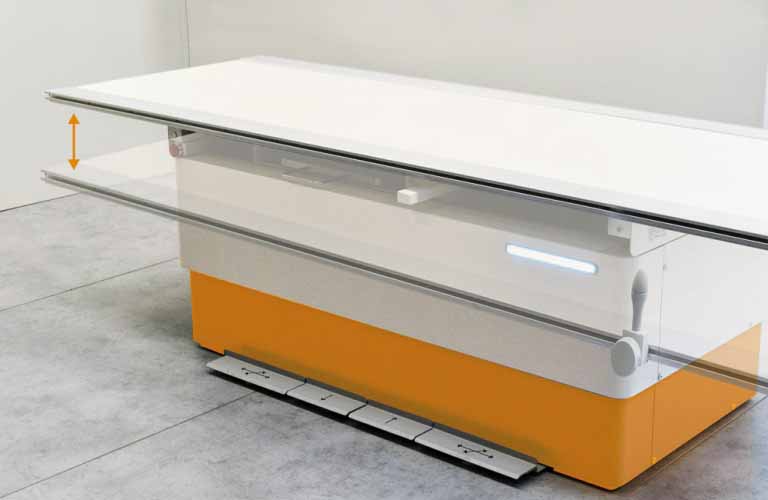

•  motorised X-ray table with 4-way floating table top (220 x 81 cm)
   (shorter lengths available for small rooms)
•  55 cm – 85 cm (table top heights) height adjustment
•  110 cm longitudinal, 24 cm transverse table top travel
•  extremely low table top filtration for best exposure
•  stable construction with high load capacity of the table, max. 225 kg (500 lbs)
•  heavy-duty grid cabinet (103 LPI, 10:1 grid), height adjustment 55 cm
   (other grids available)

X-ray tube

•  Optical focal spot: 0.6 and 1.2
•  Anode speed: 2,850 rpm
•  Anode angle: 12°
•  Heat capacity: 300 KHU
•  Focal spot: 0.6 / 1.2 mm
•  Max. KVP: 150 kVp

Flat panel detector 17"x17" CsI

Flat panel detector with excellent image quality and prompt image availability

Flat panel detector 14"x17" wireless

Wireless X-ray imaging!
Fits without additional modification in place of the X-ray film cassettes
Fast-charging and long-lasting batteries

Operator control via dicomPACS®DX-R acquisition station

Mini PC with 23" touch screen monitor, dicomPACS®DX-R professional console software with modern graphical user interface including basic software package

Optional components for Amadeo C systems

DAP meter

Dose-area product

Upgrade

From 50 kW to max. 65 kW

Upgrade

From 50 kW to max. 80 kW

Patient mat for X-ray table

Available

Lateral holder for detector

Detector holding tool for lateral fixing in the table profile rails

The detector is steplessly adjustable in the X-ray beam direction and can also be pivoted about its vertical axis

Autotracking SID

The X-ray tube automatically follows the vertical movement of the Bucky table at a pre-set distance

Autotracking wall stand

The X-ray tube follows the vertical movement of the wall stand and is automatically centered

Autotracking Bucky

The Bucky in the patient table follows the horizontal movement of the X-ray tube and is automatically centered

Patient stretch grip on wall stand

- Grip handle on left and right side
- Patient overhead handle

Ceiling rail extension

1m  - includes 2 mounting plates and slot nuts

Additional ceiling mounting

per set for 1m

Additional electromagnetic stop

- in X direction
- in Y direction
